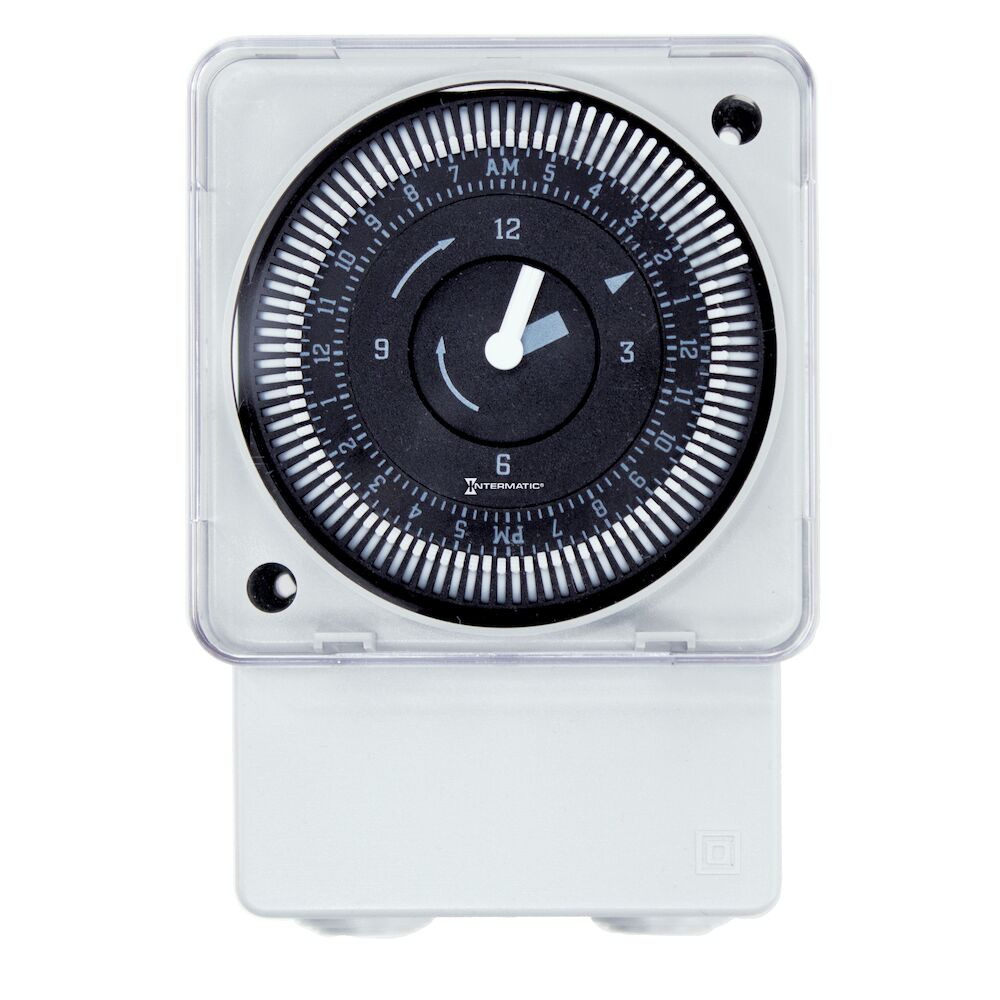

INTERMATIC MIL72ASTUZ-120 Electromechanical Timer 24-hour Spdt
Get it by Friday, Aug 21
€68.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electromechanical Timer |
| Amps | 21A |
| Applicable Ac Voltage Ranges | 120V AC |
| Application | Hvac, Machinery |
| Body Color | White |
| Body Material | Plastic |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| Contact Form | SPDT |
| Contact Hp @ 120v | 1 |
| Contact Hp @ 120v | 1 hp |
| Contact Hp @ 240v | 2 hp |
| Contact Hp @ 240v | 2 |
| Day Skipper | No |
| Depth | 3.3" |
| Display Qty | 1 |
| Enclosure Type | Plastic |
| Features | Clear Plastic Dust Cover, True Clock Face |
| Height | 4 3/5" |
| Indoor/outdoor | Outdoor |
| Max. Hp @ 120v | 1 hp |
| Max. Hp @ 240v | 2 hp |
| Max. On/off Cycles | 48 |
| Max. Operating Temp. | 185°F |
| Max. Time Setting | 23 hr., 45 min. , 24 hrs. |
| Min. Operating Temp. | -40°F |
| Min. Time Setting | 15 min. |
| Mounting Style | Din Rail, Surface |
| Nema Rating | NEMA 3R |
| No. Of Poles | 2 |
| No. Of Trippers Included | 96 |
| No. Of Trippers-max. | 96 |
| Number Of Trippers Included | 96 |
| Operating Temp. | -40°F to +185°F |
| Overall Depth | 2 1/16" |
| Overall Height | 4" |
| Overall Width | 2 13/16" |
| Product Type | Timer |
| Series | MIL72 Series |
| Type | 24 hrs. |
| Voltage | 120V AC |
| Width | 568678" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 10.25 |
| Ship length (cm) | 5.2 |
| Ship width (cm) | 7.2 |
| HS code | 9107008000 |
| Country of Origin | MX |
Product Details:
- Special Features: True Clock Face
Product Variants
| Product | Model | Depth | Overall Width | Height | Voltage | Min. Time Setting | Max. Time Setting | Day Skipper | Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MIL72AQTUZ-240 | 3 5/16" | 2 13/16" | 4 51/64" | 240V AC | 15 min. | 23.75 hrs. | No | -4°F to +131°F | €260.76 | |
 |
MIL72AQTUZH-24 | 3.3" | 3 5/16" | 4 4/5" | 12-24V AC/DC | 15 min. | 23 hr., 45 min. | No | -4°F to +131°F | - | RFQ
|
 |
MIL72ASTUZH-24 | 3 5/16" | - | 4 19/32" | 24V AC | 15 min. | 23.75 hrs. | No | -40°F to +185°F | €146.48 | |
 |
MIL72ASTUZH-240 | 3 5/16" | 2 13/16" | 4 19/32" | 240V AC | 15 min. | 23.75 hrs. | No | -40°F to +185°F | €146.06 | |
 |
MIL72EQTUZ-24 | 2 5/16" | 2 13/16" | 3 51/64" | 12-24V AC/DC | 15 min. | 23.75 hrs. | No | - | €243.85 | |
 |
MIL72ESTUZH-120 | 2 5/16" | 2 13/16" | 3 51/64" | 120V AC | 15 min. | 23.75 hrs. | No | -40°F to +185°F | €146.11 | |
 |
MIL72AQWUZH-120 | 3.3" | 3 5/16" | 4 3/5" | 120V AC | 2 hrs. | 6 Days, 22 hrs. | Yes | -4°F to +131°F | €198.78 |
