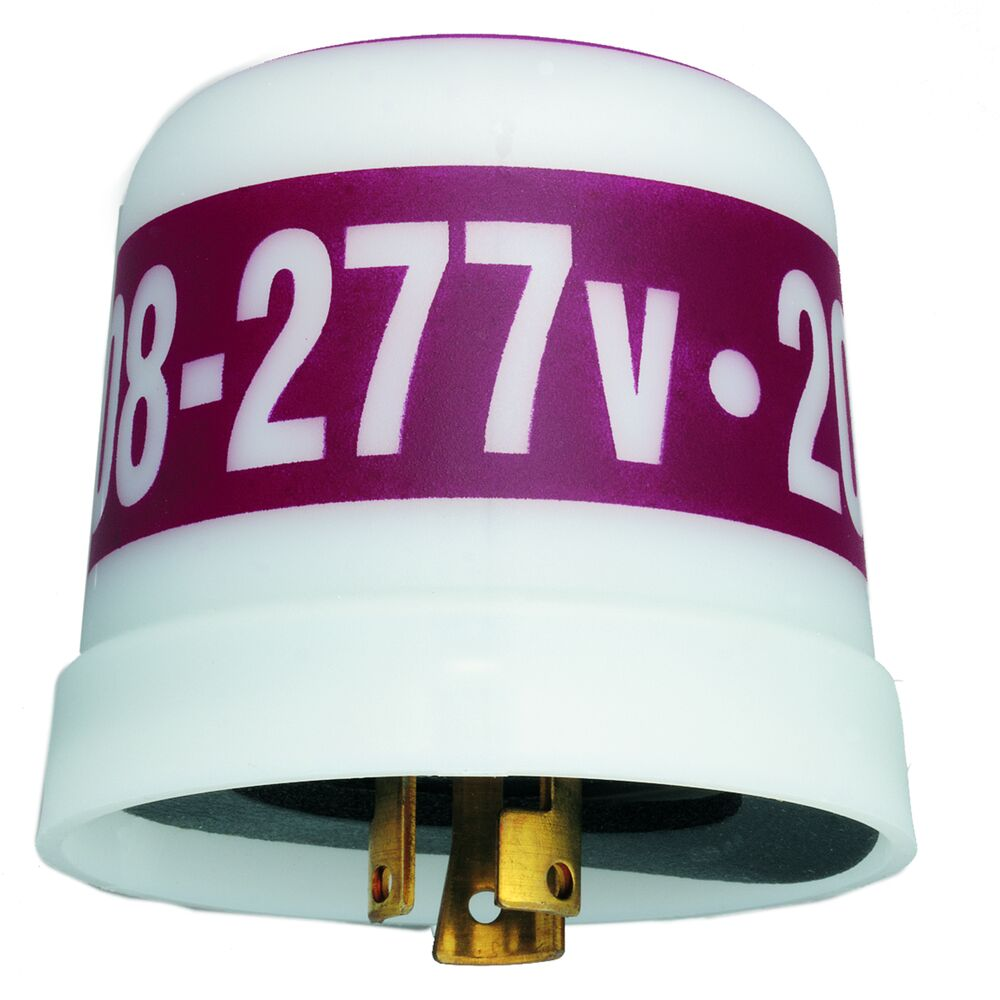

INTERMATIC LC4523 Photocontrol Twist Lock 208 To 277vac
Item: AA4TZHModel: LC4523Cross Ref: 13E067
7 In Stock
Ships within 2 days via
10.00% off
€48.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photocontrol |
| Activation On | 5 fC |
| Applicable Ac Voltage Ranges | 208-277V AC |
| Applications | Outdoor Lighting Control |
| Color | Red, Translucent |
| Compatible Lighting | HID, Incandescent |
| Contact Form | SPST |
| Depth | 3" |
| Display Qty | 1 |
| Enclosure Type | Raintight |
| Expected Lifetime Operations | 3650 |
| Features | Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch |
| Foot Candles Off | 15 fC |
| Foot Candles Off | 15 |
| Foot Candles On | 0.5 fC |
| Foot Candles On | 0.5 |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Housing Color | Maroon, White |
| Housing Material | Polypropylene |
| Incandescent Current - Maximum | 15A |
| Indoor/outdoor Usage | Outdoor |
| Length (straight Wireway) | 2 3/4" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ballast Amps | 8.3 |
| Max. Ballast Amps | 8.3A |
| Max. Incandescent Amps | 15A |
| Max. Incandescent Amps | 15 |
| Max. Wattage | 3100-4155 W |
| Mounting Style | Locking |
| Nema Rating | Non-NEMA |
| Nominal Ac Voltage Ratings | 208/240/277V AC |
| Off Illumination - Maximum | 15 fC |
| On Illumination - Maximum | 5 fC |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Overall Height | 2 3/4" |
| Photo Control Switch Type | Mechanical Bimetal |
| Photocell Type | Cadmium Sulfide |
| Photocontrol Photocell Type | Cadmium Sulfide |
| Photocontrol Sensor Location | Side |
| Photocontrol Style | Locking Type |
| Photocontrol Switch Type | Mechanical Bimetal |
| Photocontrol Type | Thermal |
| Product Diameter | 3" |
| Sensor Time Delay | 30 sec. to 90 sec. |
| Setting | Dusk To Dawn |
| Setting | On at Dusk, Off at Dawn |
| Temp. Range | -20°F to +104°F |
| Time Delay - Maximum | 90 sec. |
| Time Delay - Minimum | 30 sec. |
| Time Delay Range | 30 sec. to 90 sec. |
| Usage Environments | Outdoor |
| Voltage | 208-277V AC |
| Wattage - Maximum | 4150 W |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 7.95 |
| Ship width (cm) | 7.95 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Special Features: NEMA Twist And Lock Type Plug Connection, Polypropelene Housing With UV Protection Keeps Moisture Out And Esnures Long Life
Product Variants
| Product | Model | Max. Wattage | Color | Voltage | Temp. Range | Depth | Contact Form | Enclosure Type | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC4521LA | 1000 W | Gray, Translucent | 120V AC | -40°F to +158°F | 3" | SPST | Raintight | Polypropylene | €34.91 | |
 |
LC4523LA | 3100-4155 W | Red, Translucent | 208-277V AC | -20°F to +104°F | 3" | SPST | Raintight | Polypropylene | €50.70 | |
 |
LC4535LA | 7200 W | Translucent, Yellow | 480V AC | -20°F to +104°F | 3" | SPST | Raintight | Polypropylene | €70.70 | |
 |
EK4536 | 1000 W | Translucent | 105-305V AC | - | 3 1/2" | SPST | Raintight | Polypropylene | €44.78 |
