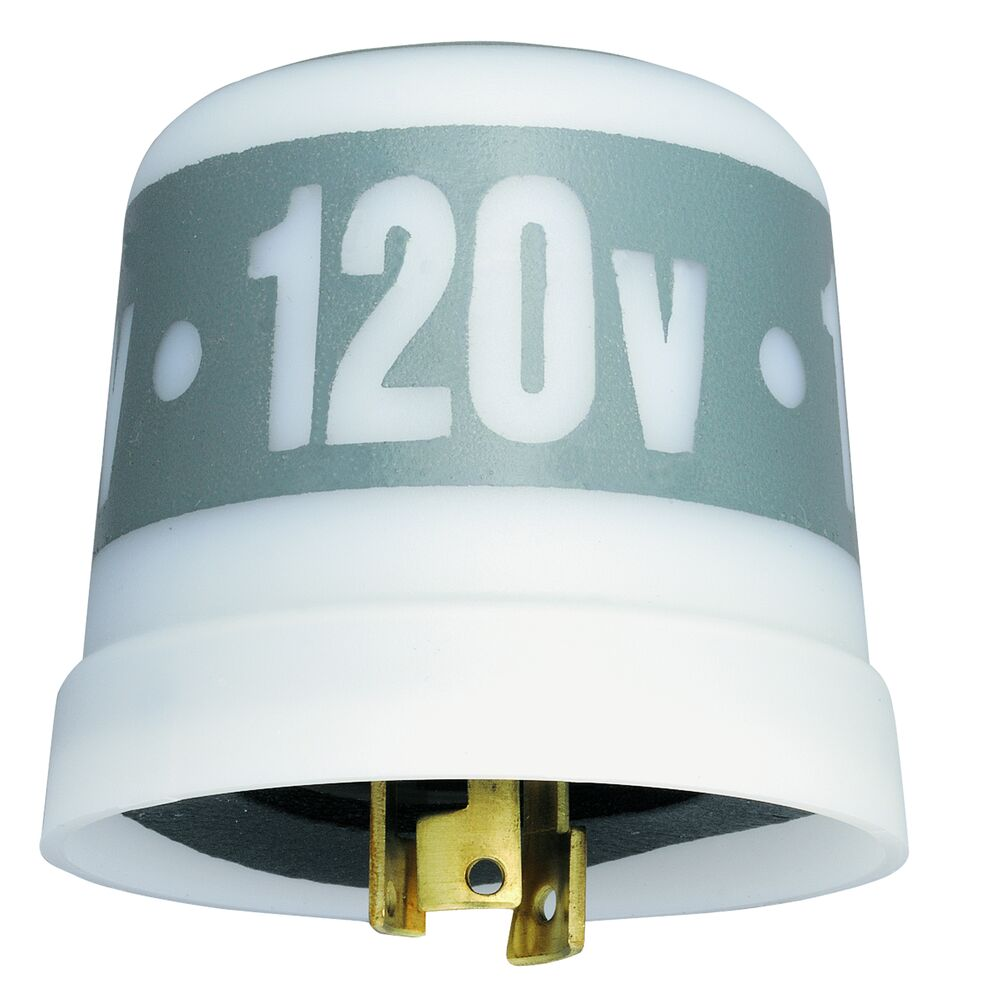

INTERMATIC LC4521LA Photocontrol Twist Lock 120vac
Item: AA4TZGModel: LC4521LACross Ref: 13E066
7 In Stock
Ships within 2 days via
5.00% off
€33.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photocontrol |
| Activation Off | 15 fC |
| Activation On | 5 fC |
| Applicable Ac Voltage Ranges | 120V AC |
| Applications | Outdoor Lighting Control |
| Color | Gray, Translucent |
| Compatible Lighting | HID, Incandescent |
| Contact Form | SPST |
| Depth | 3" |
| Display Qty | 1 |
| Enclosure Type | Raintight |
| Expected Lifetime Operations | 3650 |
| Features | Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch, Spark Gap Surge Arrestor |
| Foot Candles Off | 15 fC |
| Foot Candles Off | 15 |
| Foot Candles On | 0.5 |
| Foot Candles On | 0.5 fC |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Housing Color | White, Gray |
| Housing Material | Polypropylene |
| Indoor/outdoor | Outdoor |
| Length | 2 3/4" |
| Length (straight Wireway) | 2 3/4" |
| Max. Ballast Amps | 8.3A |
| Max. Ballast Amps | 8.3 |
| Max. Incandescent Amps | 15 |
| Max. Incandescent Amps | 15A |
| Max. On Illumination | 5 fC |
| Max. Operating Temp. | 158°F |
| Max. Time Delay | 90 sec. |
| Max. Watts | 1000 W , 1800 W |
| Min. Operating Temp. | -40°F |
| Min. Time Delay | 30 sec. |
| Mounting Style | Locking |
| Nema Rating | Non NEMA |
| Nominal Ac Voltage Ratings | 120V AC |
| Off Illumination-max. | 15 fC |
| Overall Height | 2 3/4" |
| Photo Control Switch Type | Mechanical Bimetal |
| Photocell Type | Cadmium Sulfide |
| Photocontrol Photocell Type | Cadmium Sulfide |
| Photocontrol Sensor Location | Side |
| Photocontrol Style | Locking Type |
| Photocontrol Switch Type | Mechanical Bimetal |
| Photocontrol Type | Thermal |
| Product Dia. | 3" |
| Sensor Time Delay | 30 sec. to 90 sec. |
| Setting | On at Dusk, Off at Dawn |
| Setting | Dusk To Dawn |
| Surge Arrestor Rating | Spark Gap |
| Surge Protection Technology | Spark Gap Surge Arrestor |
| Temp. | -40°F to +158°F |
| Time Delay | 30 sec. to 90 sec. |
| Usage Environments | Outdoor |
| Voltage | 120V AC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 7.95 |
| Ship width (cm) | 7.95 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Special Features: Integral Housing And Lens With UV Protection, Solid Brass Terminals
Product Variants
| Product | Model | Voltage | Max. Ballast Amps | Color | Max. Incandescent Amps | Max. Watts | Housing Color | Applicable Ac Voltage Ranges | Nominal Ac Voltage Ratings | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC4523 | 208-277V AC | 8.3A | Red, Translucent | 15A | 3100-4155 W | Maroon, White | 208-277V AC | 208/240/277V AC | €54.24 | |
 |
LC4523LA | 208-277V AC | 8.3A | Red, Translucent | 15A | 3100-4155 W | Maroon, White | 208-277V AC | 208/240/277V AC | €50.70 | |
 |
LC4535LA | 480V AC | 8.3A | Translucent, Yellow | 15A | 7200 W | Gray, Yellow | 480V AC | 480V AC | €70.70 | |
 |
EK4536 | 105-305V AC | 6A | Translucent | 8.3A | 1000 W | Blue, White | 120-277V AC | 120/240/277V AC | €46.22 |
