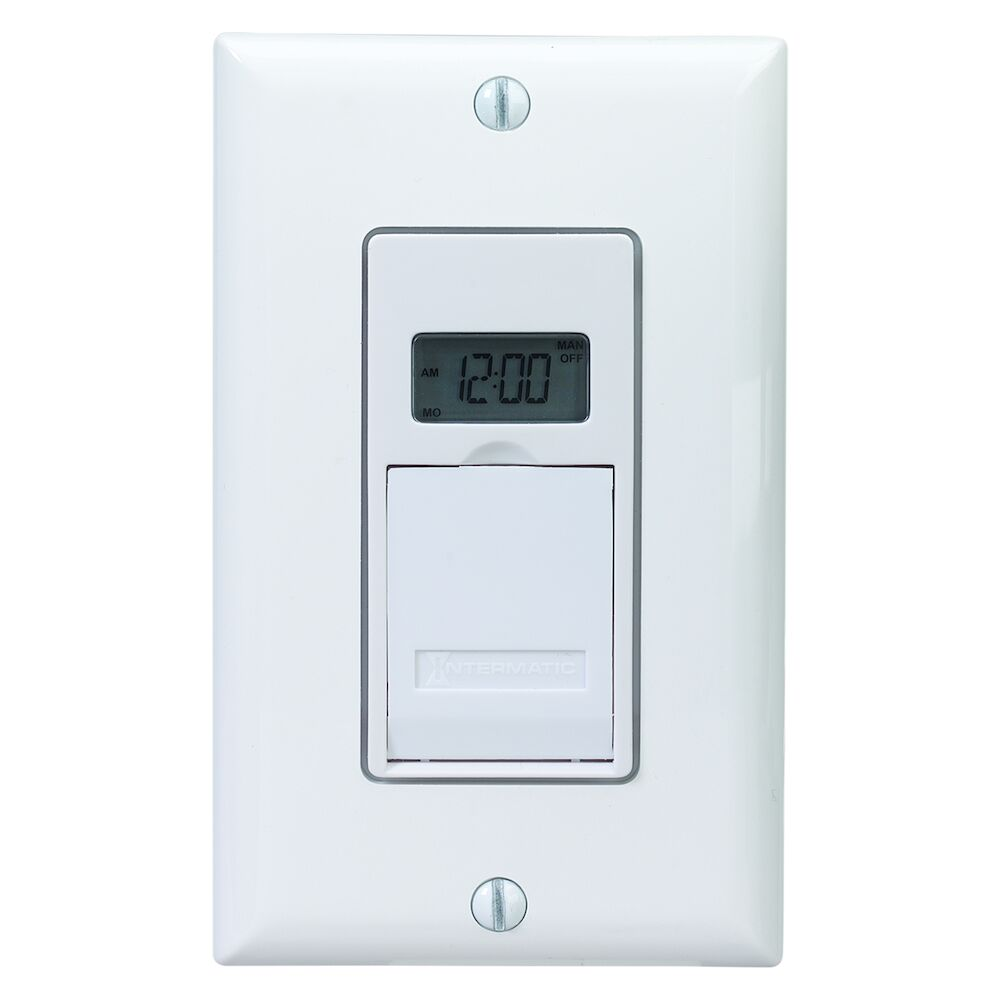

INTERMATIC EJ600 Timer Digital 120V 12A Wall Switch
Item: AF7EDHModel: EJ600Cross Ref: 20XE68
7 In Stock
Ships within 2 days via
10.00% off
€100.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wall Switch Timer |
| Amps | 12A |
| Applicable Ac Voltage Ranges | 120V AC |
| Application | HVAC, Lighting |
| Backup Protection Time | 100 hrs. |
| Backup Type | Battery |
| Battery Type | Lithium Rechargeable |
| Body Color | White |
| Color | White |
| Compatible Lighting | Fluorescent, Incandescent, LED |
| Contact Form | SPST-NO |
| Current Rating | 12A |
| Depth | 2 3/32" |
| Display Qty | 1 |
| Horsepower @ 120v - Maximum | 1/2 hp |
| Hp @ 120v | 1/4 hp |
| Includes Hold | No Hold Included |
| Includes Wall Plate | No |
| Indoor/outdoor Usage | Indoor/Outdoor |
| Length | 3" |
| Length (straight Wireway) | 3" |
| Max. On/off Cycles | 14/Week |
| Max. On/off Cycles | 7 |
| Max. On/off Operations | 14 |
| Max. Time Setting | 6 Days, 23 hrs., 59 min. |
| Min. Time Setting | 1 min. |
| Minimum On/off Times | 1 min. |
| Motor Load Ratings Ranges | 1/2 hp |
| Neutral Connection Required | Yes |
| Number Of Gangs | 1 |
| Number Of Poles | 1 |
| Operation Features | Astronomic, Daylight Saving Time |
| Overall Depth | 1 7/16" |
| Overall Height | 4 1/8" |
| Product Type | Wall Switch Timers |
| Standards | Ccsaus |
| Style | Wall Switch |
| Switch Type | 3 Way |
| Time Setting - Maximum | 7 Day |
| Timer Switch Type | Digital |
| Type Of Switch | Electronic |
| Wattage | 1800 W |
| Wattage - Maximum | 1440 W |
| Width | 2 3/32" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.48 |
| Ship length (cm) | 3.65 |
| Ship width (cm) | 4.45 |
| HS code | 9107008000 |
| Country of Origin | CN |
Product Details:
- In-wall timer designed for programming schedules up to 7 days using the sunrise and sunset functionality; suitable for use with entryway lights, attic fans, pumps and small signs
- Features automatic daylight saving time (DST) adjustment setting for extending the working hours in natural daylight
- Equipped with rechargeable lithium batteries that provide a backup for up to 100 hours
- Compatible with fluorescent ballast (4 A, 500 VA) and Incandescent (1800 W, single gang) lights
- CSA certified and UL listed
Product Variants
| Product | Model | Contact Form | Max. On/off Cycles | Switch Type | Min. Time Setting | Max. Time Setting | Color | Depth | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EI200W | SPST-NO | 1 | 1 Pole | 5 min. | 30 min. | White | 1 1/2" | 1 | €86.32 | |
 |
EI200LA | SPST-NO | 1 | 1 Pole | 5 min. | 30 min. | Almond | 1 1/2" | 1 | €95.47 | |
 |
EI210W | SPST-NO | 1 | 1 Pole | 10 min. | 60 min. | White | 1 1/2" | 1 | €77.63 | |
 |
EI210LA | SPST-NO | 1 | 1 Pole | 10 min. | 60 min. | Almond | 1 1/2" | 1 | €80.81 | |
 |
PE153 | SPST | 3 | - | 1 min. | - | Gray | 3 5/8" | 3 | €696.21 | |
 |
EI500C | - | 14 | 1 Pole | - | 7 Days | Ivory | 1 3/4" | 1 | €119.69 | |
 |
EI500WC | SPST-NO | 14 | 1 Pole | 1 min. | - | White | 2 1/8" | 1 | €79.70 |
