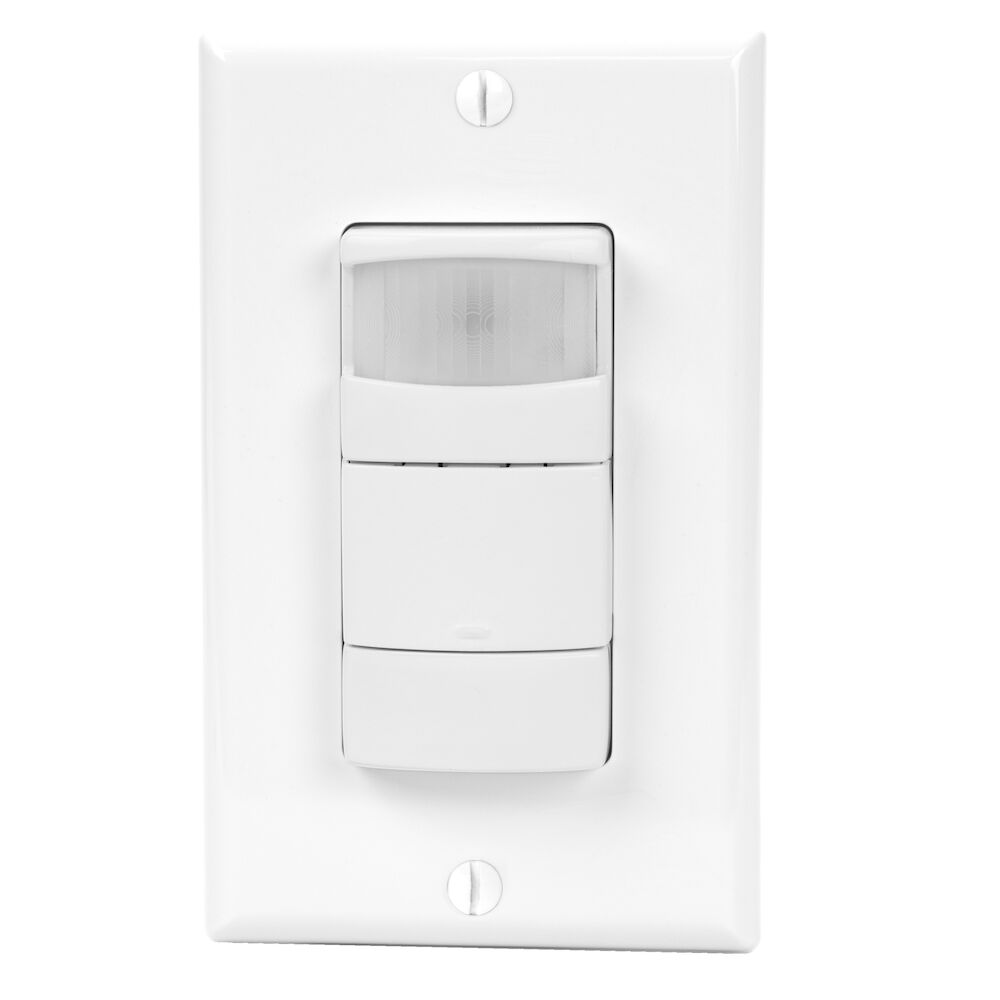

INTERMATIC ALC-PI-BT-WH Passive Infrared In-Wall Occupancy Vacancy Sensor
Get it by Monday, Dec 22
€205.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Occupancy Sensor |
| Backup Protection Time | Indefinite |
| Backup Restoration Time | 1 min. |
| Backup Type | Non Volatile |
| Color | White |
| Data Transfer Options | Bluetooth |
| Depth | 1.67" |
| For Use With | ARISTA Controllers |
| Frequency | 60 Hz |
| Function Type | Manual Override, Occupancy/Vacancy, Schedule |
| Height | 2 3/4" |
| Input Voltage | 120-277V AC |
| Material | Plastic |
| Max. Operating Temp. | 104°F |
| Max. Wire Size (class1) | 10 |
| Min. Operating Temp. | 32°F |
| Min. Wire Size (class1) | 14 |
| Mounting Type | In Wall |
| Operating Humidity | Dry Location |
| Operation Features | Presence |
| Operation Mode | Occupancy, Vacancy |
| Other Certifications | Green Energy +, IECC 2018 |
| Pir Coverage Area | 1200 sq. ft. |
| Product Datasheet | intermatic-alc-pi-bt-wh.pdf |
| Programming Targets | Smartphone |
| Radio Signal | Bluetooth |
| Tampering Protection | Yes |
| Usage | Indoor |
| Voltage Selection Type | Automatic |
| Warranty | 5 yrs. |
| Width | 1 3/4" |
| Wiring Options Line Voltage | Leads |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 4.24 |
| Ship width (cm) | 4.45 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Max. Operating Temp. | Height | Depth | Color | Min. Operating Temp. | Mounting Type | Material | Input Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ALC-DT-BT-WH | 131°F | 3.15" | 4 23/25" | White | 32°F | In Wall | Plastic | 120-277V AC | €225.85 |
