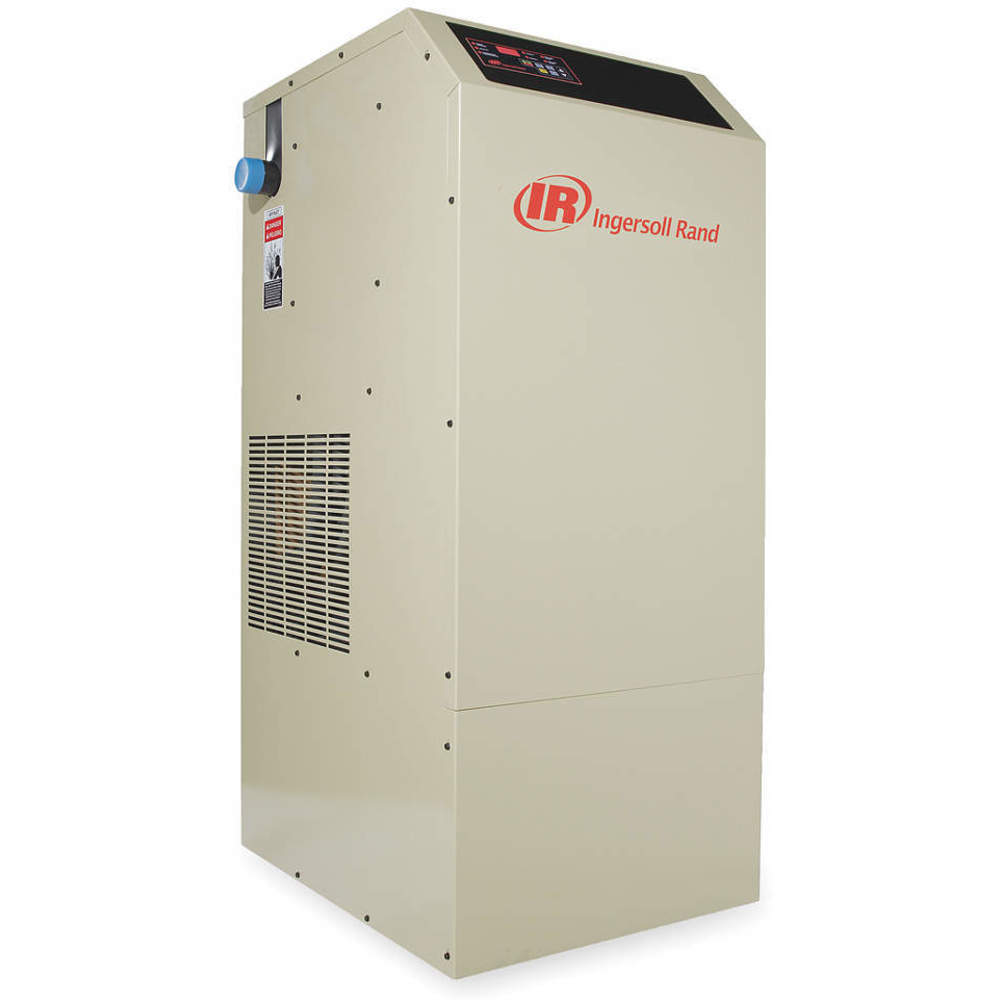

INGERSOLL-RAND NVC200 Compressed Air Dryer 200 Cfm 50 Hp 460v
Get it by Wednesday, Dec 24
10.00% off
€19,077.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compressed Air Dryer |
| Air Inlet Gender | Female |
| Air Inlet Size | 1 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1 1/2" |
| Air Outlet Type | NPT |
| Cfm | 200 CFM |
| Cycling Type | Cycling |
| Dew Point | 38 Degrees F |
| Dew Point | 38°F |
| Drain Included | Yes |
| Filtered Substance | Moisture |
| Finish | Powder Coated |
| Frequency | 50/60 Hz |
| Full Load Amps | 6A |
| Heat Exchanger Material | 304L Stainless Steel |
| Heat Exchanger Material | Stainless Steel |
| Includes | Centrifugal Separator |
| Input Voltage | 460V AC |
| Iso Class | 4 |
| Max. Air Compressor Hp | 50 |
| Max. Air Compressor Hp | 50 hp |
| Max. Ambient Temp. | 115°F |
| Max. Inlet Temp. | 120°F |
| Max. Pressure | 230 psi |
| Maximum Ambient Temperature | 113°F |
| Maximum Flow | 200 CFM |
| Maximum Incoming Pressure | 230 psi |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Depth | 30" |
| Overall Height | 58" |
| Overall Width | 28" |
| Phase | 3 |
| Pipe Size | 1 1/2" |
| Power | 1.66 kW |
| Power | 1.66kW |
| Pressure Drop | 1.6 psig |
| Refrigerant | R-404A |
| Refrigeration Compressor (hp) | 1 |
| Refrigeration Compressor Hp | 1 hp |
| Series | NIRVANA Series |
| Standards | Etl |
| Voltage | 460V AC |
| Weight | 629 lbs. |
Shipping Info:
| Ship weight (kg) | 279 |
| Ship height (cm) | 147.32 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 71.12 |
| HS code | 8418690180 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Air Inlet Size | Iso Class | Full Load Amps | Pressure Drop | Max. Ambient Temp. | Phase | Cfm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HLA1201H00AA | - | - | - | 4A | 3 psi | 120°F | 1 | 120 CFM | €18,455.80 | |
| HLA1601H00AA | 115V | 1 1/2" | Class 2 | 4A | 3 psi | 120°F | 1 | 160 CFM | €20,657.61 | |
| HLA2001H00AA | - | - | - | 4A | 3 psi | 120°F | 1 | 200 CFM | €19,470.83 | |
| HLA2501H00AA | 115V | 1 1/2" | Class 2 | 4A | 3 psi | 120°F | 1 | 250 CFM | €19,806.40 | |
| HLA3001H00AA | 115V | 2" | Class 2 | 4A | 3 psi | 120°F | 1 | 300 CFM | €23,316.34 | |
| HLA4001H00AA | 115V | 2" | Class 2 | 4A | 3 psi | 120°F | 1 | 400 CFM | €26,323.10 | |
| HLA5001H00AA | 115V | 2" | Class 2 | 4A | 3 psi | 120°F | 1 | 500 CFM | €31,435.69 |
