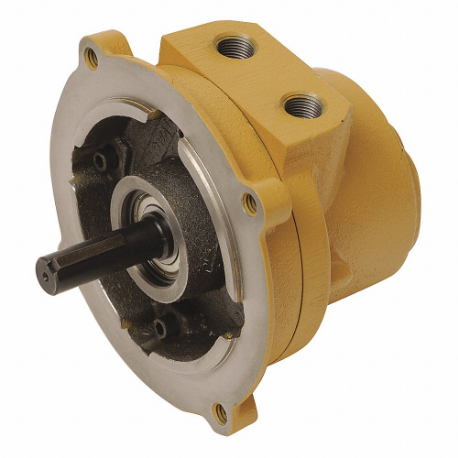

INGERSOLL-RAND MVA017B Air Motor, 1.93 Hp Hp, 84 In-Lb Running Torque At
Get it by Thursday, Dec 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,990.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Motor |
| Air Consumption | 76 SCFM |
| Air Inlet Port | 3/8" |
| Air Inlet Port Type | NPT |
| Finish | Unfinished |
| Housing Material | Cast Iron |
| Housing Material Finish | Unfinished |
| Hp | 1 93/100 hp |
| Keyway Depth | 1/4" |
| Keyway Length | 1 1/4" |
| Keyway Type | Square |
| Keyway Width | 1/4" |
| Length Less Shaft | 4 5/8" |
| Max. Air Flow | 67 CFM |
| Max. Air Pressure | 90 psi |
| Maximum Ambient Temperature | 150°F |
| Maximum Flow Rate | 67 CFM |
| Maximum Operating Pressure | 90 psi |
| Minimum Ambient Temperature | 0°F |
| Mount Hole Center-to-center Length | 2" |
| Mount Hole Center-to-center Width | 3 3/8" |
| Mount Type | Flange |
| Mounting | Flange |
| Mounting Orientation | Horizontal |
| No Load Speed | 5000 RPM |
| Number Of Vanes | 6 |
| Operating Temp. Range | 0°F to +150°F |
| Output Power | 1 93/100 hp |
| Output Shaft Type | Keyed |
| Outside Dia. | 6 1/2" |
| Overall Height | 9 3/8" |
| Overall Length | 6 3/4" |
| Overall Width | 7 7/8" |
| Port Size | 3/8" |
| Port Type | NPT |
| Rotation | CCW |
| Rpm @ Max. Torque | 2800 RPM |
| Running Torque @ Max. Pressure | 84 lbs.-in. |
| Series | MVA Series |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/8" |
| Stall Torque | 84 lbs.-in. |
| Standards | Atex |
| Starting Torque | 4.5 lbs.-ft. |
| System Of Measurement | Imperial |
| Torque @ Max Pressure | 84 lbs.-in. |
| Weight | 12.5 lbs. |
Shipping Info:
| Ship weight (kg) | 5.86 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 20.02 |
| Country of Origin | US |
