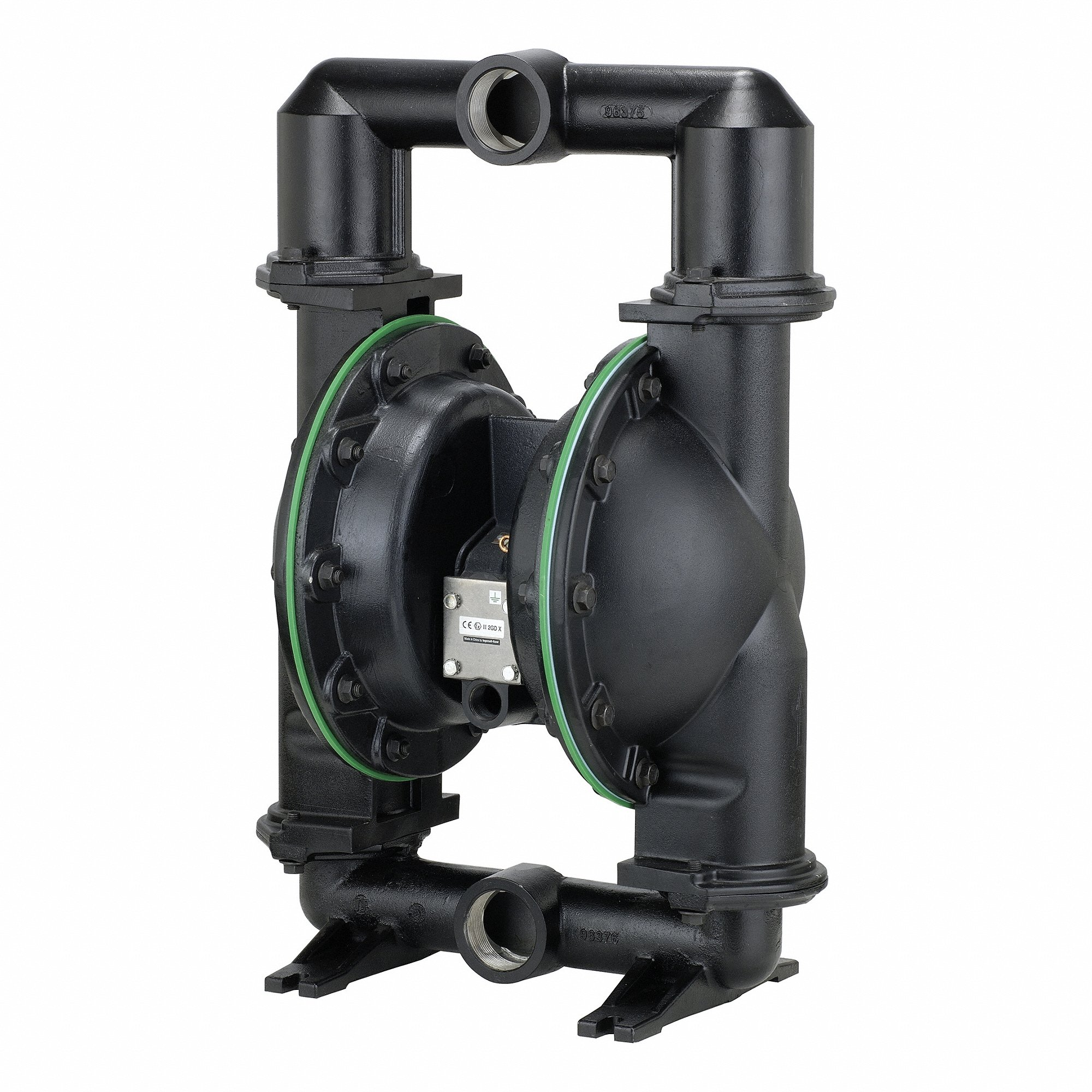

INGERSOLL-RAND 666250-EEB-C Diaphragm Pump, Air, Bolt, 2 Inch Fluid Connection Size, NPT, Santoprene, Santoprene, Top
Get it by Tuesday, Sep 1
5.00% off
€3,910.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Pressure | 120 psi |
| Check Seat Material | Santoprene |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Flow Rate @ 120 Psi | 172 GPM |
| Fluid Intake Connection | 2" Nptf |
| Fluid Outlet Connection | 2" Nptf |
| Included | Muffler |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Max. Discharge Pressure | 120 psi |
| Max. Flow Rate | 172 GPM |
| Max. Media Temp. | 225°F |
| Max. Solid Dia. | 1/4" |
| Media Discharge Location | Top |
| Media Intake Location | Bottom |
| Overall Height | 26.4" |
| Overall Length | 17.9" |
| Overall Width | 22.8" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Series | 66625 Series |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 29.25 |
| Ship height (cm) | 67.06 |
| Ship length (cm) | 45.47 |
| Ship width (cm) | 57.91 |
| Country of Origin | CN |
