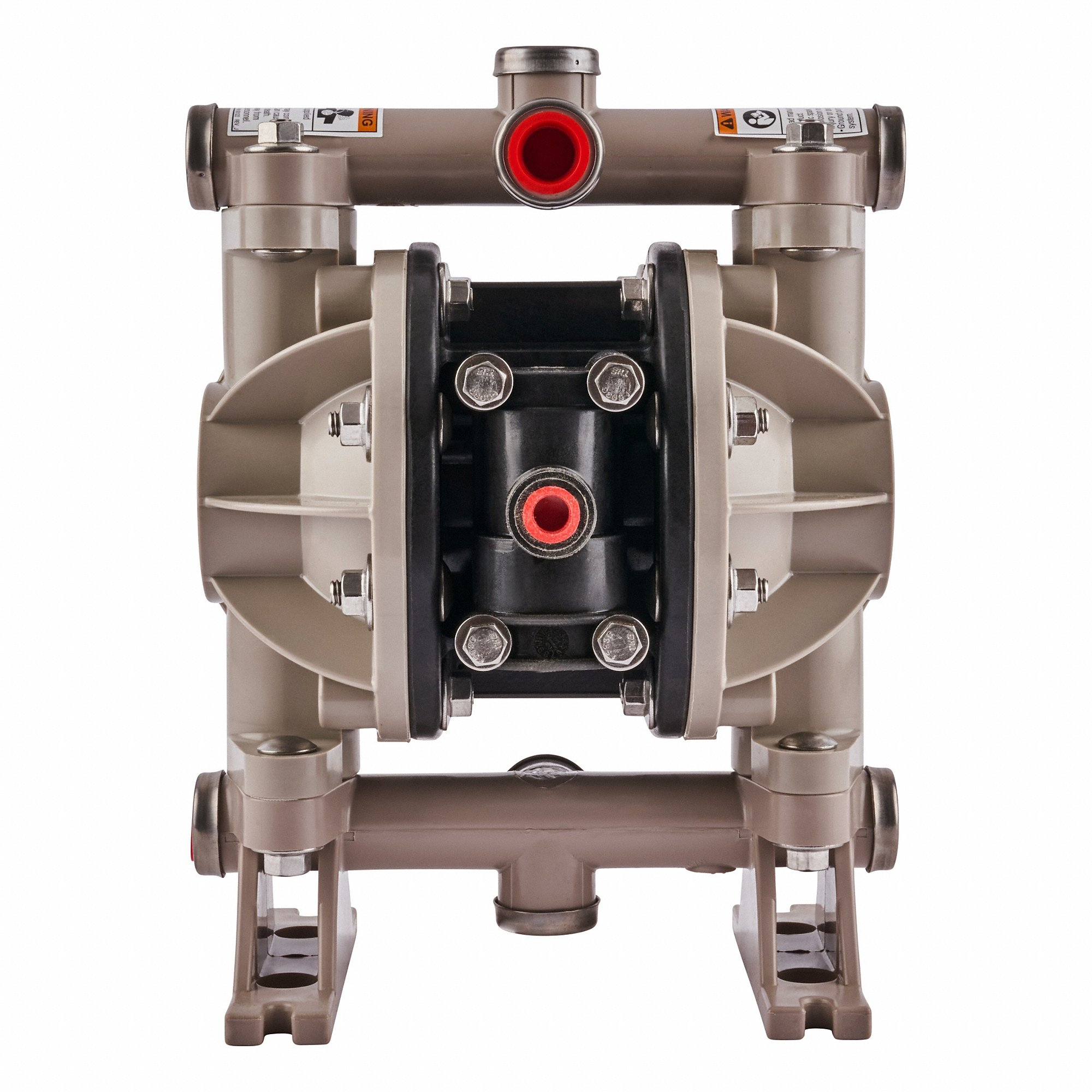

INGERSOLL-RAND 66605J-0D2 Diaphragm Pump, Polypropylene, 1/2 Inch Fluid Connection Size
Get it by Tuesday, Mar 3
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,809.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Diaphragm Material | Buna-N |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 13 GPM |
| Flow Rate @ 40 Psi | 9.5 GPM |
| Flow Rate @ 70 Psi | 12 GPM |
| Fluid Intake Connection | 1/2" Nptf |
| Fluid Outlet Connection | 1/2" Nptf |
| Housing Material | Polypropylene |
| Includes | Muffler |
| Manifold Connection | Multiport |
| Manifold Connection Type | NPT |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 10 GPM |
| Max. Media Temperature | 180°F |
| Max. Solid Dia. | 0.09" |
| Media Discharge Location | Side |
| Media Intake Location | Bottom |
| Mounting Hardware Material | Stainless Steel |
| Overall Height | 11.3" |
| Overall Length | 8.5" |
| Overall Width | 6 2/5" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 100 psi |
| Series | 66605 Series |
| Standards | Ansi S1.13-1971, Cagi-Pneurop S5.1 |
| Valve Material | Buna N |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 4.1 |
| Ship height (cm) | 28.7 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 16.26 |
| Country of Origin | US |
