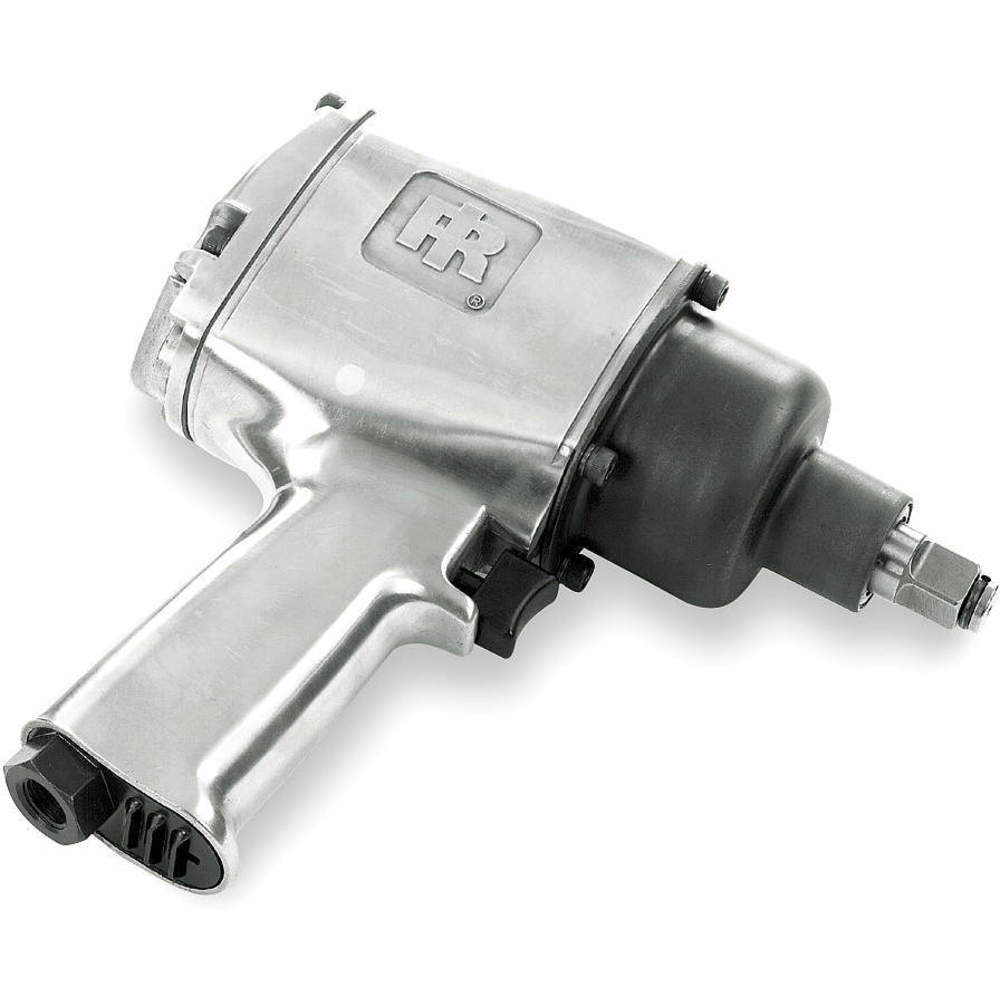

INGERSOLL-RAND 236 Air Impact Wrench, 1/2 Inch Drive, 7400 RPM, Aluminium Housing
Item: AE4JRPModel: 236Cross Ref: 5LA59
7 In Stock
Ships within 2 days via
5.00% off
€313.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Impact Wrench |
| Air Consumption | 4 CFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Anvil Type | Standard |
| Average Cfm @ 15 Second Run Time | 4.3 CFM |
| Breakaway Torque | 450 lbs.-ft. |
| Built-in Light | No |
| Cfm @ Full Load | 24 CFM |
| Clutch Style | Jumbo Hammer |
| Drive Size | 1/2" Square |
| Drive Type | Standard |
| Duty | General |
| Duty Rating | General Duty |
| Exhaust Location | Bottom |
| Fastening Torque | 450 lbs.-ft. |
| Features | Adjustable Power Forward/Full Power Reverse, Rear Dial Forward/Reverse Control |
| Free Speed | 7400 RPM |
| Handle Material | Aluminum |
| Handle Type | Pistol Grip |
| Housing Material | Aluminum |
| Impact Rated | Yes |
| Impact Sound Level | 90 dB |
| Impacts Per Minute | 1200 |
| Max. Bolt Capacity | 9/16" |
| Max. Bolt Capacity | 0.562" |
| Maximum Air Pressure | 100 psi |
| Maximum Bolt Capacity | 1/2" |
| Min. Hose Size | 3/8" |
| Minimum Air Pressure | 90 psi |
| Number Of Speed Settings | Continuous |
| Overall Length | 7" |
| Power Source | Air Powered |
| Power To Weight Ratio | 84.9 lbs.-ft. |
| Required Pressure | 90 psi |
| Retainer Type | Friction Ring |
| Square Drive Size | 1/2" |
| Standards | En Iso 28927-2, En Iso11148-6, En Iso15744 |
| Style | Pistol Grip |
| Tool Style | Full Size |
| Tool Weight | 5.3 lbs. |
| Torque Range | 25 lbs.-ft. to 200 lbs.-ft. |
| Vibration Level | 12 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 2.68 |
| Ship height (cm) | 18.29 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 6.6 |
| HS code | 8467115040 |
| Country of Origin | CN |
Product Details:
- Engineered for delivering high torque output with minimal exertion
- Lightweight & reliable pneumatic impact wrench provides enormous driving power
- Features a single hammer impact mechanism for working well in restricted and confined spaces
- Provided with forward / reverse power regulator for easy operation
Product Variants
| Product | Model | Handle Type | Drive Size | Retainer Type | Duty Rating | Tool Style | Fastening Torque | Breakaway Torque | Free Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2101XPA | Pistol Grip | - | Ring | - | - | - | - | 11000 RPM | €306.12 | |
 |
2101XPA-QC | Pistol Grip | 1/4" | Quick Change | General Duty | - | - | - | 14500 RPM | €399.86 | |
 |
2102XPA | Pistol Grip | 3/8" | Friction Ring | General Duty | Compact | 50 lbs.-ft. | 55 lbs.-ft. | 14500 RPM | €365.11 | |
 |
3955B2TI | D | 1 1/2" Square | Through Hole | Industrial Duty | Full Size | 3900 lbs.-ft. | 5000 lbs.-ft. | 2750 RPM | €8,027.87 | |
 |
2135PTIMAX | Pistol Grip | 1/2" Square | Pin Detent | Industrial Duty | Full Size | 550 lbs.-ft. | 780 lbs.-ft. | 11000 RPM | €739.83 | |
 |
2125QTiMAX | Pistol Grip | 1/2" Square | Friction Ring | Industrial Duty | Full Size | 332 lbs.-ft. | 300 lbs.-ft. | 15000 RPM | €663.03 | |
 |
2115TiMAX | Pistol Grip | 3/8" | Friction Ring | Industrial Duty | Full Size | 230 lbs.-ft. | 300 lbs.-ft. | 15000 RPM | €597.62 |
