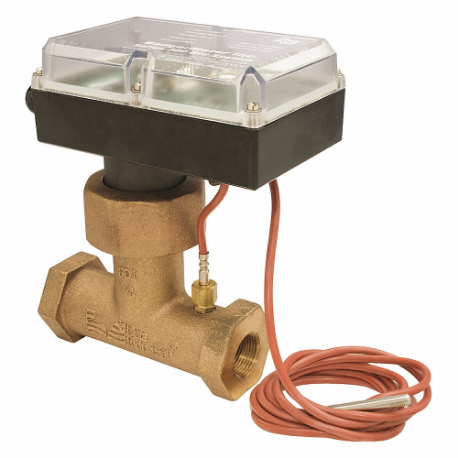

IMPELLER 380212000-1202 Electronic Flowmeter, 1 1/4 Inch For Pipe Size, 1 1/4 Inch Connection Size, Fnpt
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€2,039.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy | -2% to +2% |
| Compatible Flow Material | Water |
| Connection Size | 1 1/4" |
| Connection Type | NPT |
| Flow Range | 4.66-69.93 GPM |
| Flow Rate | 4.66-69.93 GPM |
| Flow Rate - Maximum | 69.93 GPM |
| Flow Rate - Minimum | 4.66 GPM |
| Flow Rate Range | 4.66-69.93 GPM |
| Flowmeter Type | Paddlewheel |
| Fluid Connection | 1 1/4" NPT |
| Fluid Temp. | -40°F to +260°F |
| For Pipe Size | 1 1/4" |
| Frequency (minimum) | 0.01 Hz |
| Frequency - Maximum | 100 Hz |
| Housing Material | Polycarbonate |
| Includes Flow Rate Adjustment Knob | No |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Length | 7 3/32" |
| Max. Media Temperature | 126.7°F |
| Max. Operating Pressure | 400 psi |
| Max. Pressure | 400 psi |
| Max. Voltage | 28V DC/35V AC |
| Media Temperature Range | -6.7°F to +126.7°F |
| Min. Media Temperature | -6.7°F |
| Mounting Location | Inline |
| Mounting Orientation | Horizontal |
| O-ring Material | EPDM |
| Output Type | Scaled Pulse |
| Overall Height | 8.1" |
| Overall Length | 7.1" |
| Overall Width | 3 1/2" |
| Pipe Size | 1 1/4" |
| Power Required | 12-28V AC |
| Product Type | Btu System Meter |
| Rotor Material | Stainless Steel |
| Seal Material | EPDM |
| Sensor Type | Paddle Wheel |
| Shaft Material | Tungsten Carbide |
| Type | Impeller |
| Unit Of Measure | Gallons |
| Viscosity - Maximum | 32.6 SUS |
| Wetted Material | Brass, Peek |
Shipping Info:
| Ship weight (kg) | 4.1 |
| Ship height (cm) | 20.57 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Size | Connection Type | Accuracy | Overall Length | Output Type | Rotor Material | Overall Height | For Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
250BR1505-1211 | 1 1/2" | FNPT | -1% to +1% | 6 1/2" | Standard Frequency Pulse | Nylon | 5 1/5" | 1 1/2" | €1,481.35 | |
|
380215000-1202 | 1 1/2" | NPT | -2% to +2% | 7.3" | Scaled Pulse | Stainless Steel | 8 1/5" | 1 1/2" | €1,969.38 | |
|
250BR1205-1211 | 1 1/8" | FNPT | - | 6.1" | Standard Frequency Pulse | Nylon | 5" | 1 1/4" | €1,252.42 | |
|
250BR1005-1211 | 1" | FNPT | -1% to +1% | 5 1/2" | Standard Frequency Pulse | Nylon | 4 4/5" | - | €1,220.05 | |
|
250BR0505-1211 | 1/2" | FNPT | -1% to +1% | 4" | Standard Frequency Pulse | Nylon | 4.7" | 1/2" | €1,110.84 | |
 |
228BR2505-1211 | 2 1/2" | NPT | -1% to +1% | 4 1/2" | Standard Frequency Pulse | Nylon | 8 2/5" | 2 1/2" | €1,939.15 | |
|
228BR2005-1211 | 2" | NPT | -1% to +1% | 4 1/2" | Standard Frequency Pulse | Nylon | 8 2/5" | 2" | €1,398.24 |
