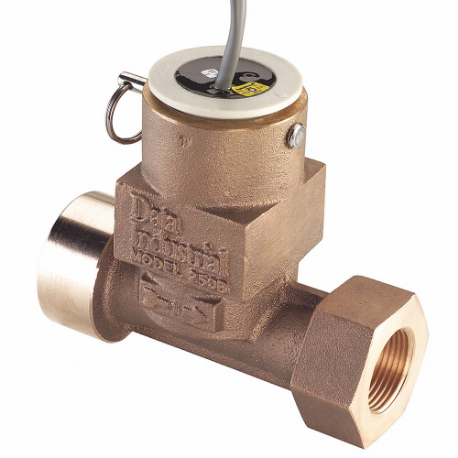

IMPELLER 250BR0505-1211 Electronic Flowmeter, 1/2 Inch For Pipe Size, 1/2 Inch Connection Size, Fnpt
Item: CR4MTUModel: 250BR0505-1211Cross Ref: 49DF19
7 In Stock
Ships within 2 days via
€812.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy | -1% to +1% |
| Cable Length | 20 ft. |
| Compatible Flow Material | Water |
| Connection Size | 1/2" |
| Connection Type | FNPT |
| Display Type | Not Applicable |
| Flow | 0.18-9.18 GPM |
| Flow Rate | 0.18-9.18 GPM |
| Flowmeter Type | Paddlewheel |
| Fluid Connection | 1/2" FNPT |
| Fluid Temp. | 0°F to +221°F |
| For Pipe Size | 1/2" |
| Housing Material | Bronze |
| Included Flow Rate Adjustment Knob | No |
| Included Pressure Gauge | No |
| Included Totalizer | No |
| Max. Flow Rate | 9.18 GPM |
| Max. Frequency | 200 Hz |
| Max. Media Temp. | 221°F |
| Max. Operating Pressure | 400 psi |
| Max. Pressure | 400 psi |
| Max. Viscosity | 32.6 SUS |
| Max. Voltage | 35V DC |
| Media Temp. | 0°F to 221°F |
| Min. Flow Rate | 0.18 GPM |
| Min. Frequency | 3.2 Hz |
| Min. Media Temp. | 0°F |
| Mounting Location | Inline |
| Mounting Orientation | Horizontal |
| O-ring Material | EPDM |
| Output Type | Standard Frequency Pulse |
| Overall Height | 4.7" |
| Overall Length | 4" |
| Product Type | Metallic Tee Type Flow Sensor |
| Pulse Rate | Not Applicable |
| Rotor Material | Nylon |
| Seal Material | EPDM |
| Sensor Type | Paddle Wheel |
| Shaft Material | Tungsten Carbide |
| Standards | Ce Certified |
| Type | Impeller |
| Unit Of Measure | Gallons |
| Wetted Material | Brass, EPDM, Nylon, Tungsten Carbide, UHMWPE |
Shipping Info:
| Ship weight (kg) | 2.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connection Size | Connection Type | Min. Flow Rate | Max. Flow Rate | Min. Media Temp. | Max. Media Temp. | Accuracy | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
250BR1505-1211 | 1 1/2" | FNPT | 1.65 GPM | 82.6 GPM | 0°F | 221°F | -1% to +1% | 6 1/2" | €1,003.67 | |
 |
380215000-1202 | 1 1/2" | NPT | 6.35 GPM | 95.18 GPM | -6.7°F | 126.7°F | -2% to +2% | 7.3" | €1,629.77 | |
|
380212000-1202 | 1 1/4" | NPT | 4.66 GPM | 69.93 GPM | -6.7°F | 126.7°F | -2% to +2% | 7.1" | €1,775.74 | |
|
250BR1205-1211 | 1 1/8" | FNPT | 1.14 GPM | 57.3 GPM | - | - | - | 6.1" | €848.57 | |
|
250BR1005-1211 | 1" | FNPT | 0.73 GPM | 36.7 GPM | 0°F | 221°F | -1% to +1% | 5 1/2" | €826.01 | |
 |
228BR2505-1211 | 2 1/2" | NPT | 7.65 GPM | 459 GPM | 0°F | 221°F | -1% to +1% | 4 1/2" | €1,605.03 | |
|
228BR2005-1211 | 2" | NPT | 5 GPM | 300 GPM | 0°F | 221°F | -1% to +1% | 4 1/2" | €1,072.01 |
