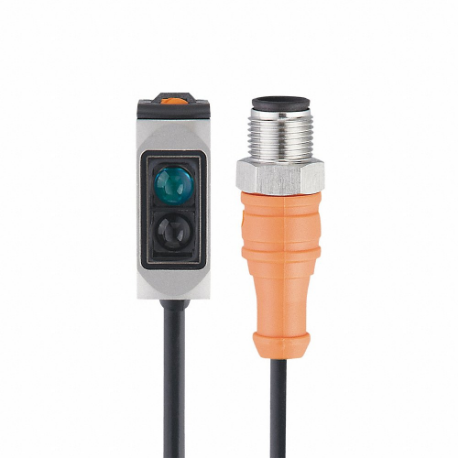

IFM O6H301 Photoelectric Sensor, 10 to 30 V DC, PNP, 0.3m Cable, Selectable Light On/Dark On
Item: CR4LUXModel: O6H301Cross Ref: 801T91
7 In Stock
Ships within 2 days via
10.00% off
€271.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Background Suppression Available | Yes |
| Body Material | Stainless Steel |
| Body Material Grade | Grade 316L |
| Cable Size | 0.3m |
| Circuit Type | PNP |
| Dc Supply Voltage Rating | 10-30V DC |
| Depth | 13 mm |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Red Light |
| Features | Background Suppression, Resistant To High Pressure Cleaning |
| Height | 34.8 mm |
| Housing | Rectangular |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67, IP68, IP69K |
| Lens Alignment | Side Lens |
| Light Source | LED |
| Light Spot Dimensions Refer To | At Maximum Range |
| Load Current - Maximum | 100 mA |
| Max. Sensing Distance | 200 mm |
| Min. Object Size | 200 mm x 200 mm |
| Operating Mode | Selectable Light On, Dark On |
| Operating Temp. Range | -25°C to +80°C |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Type | PNP |
| Overall Depth | 13 mm |
| Overall Height | 35 mm |
| Overall Width | 21 mm |
| Power Requirement | 10-30V DC |
| Product Type | Photoelectric Sensor |
| Range Adjustable | Yes |
| Reverse Polarity Protection | Yes |
| Sensing Distance - Minimum | 2 mm |
| Sensing Method | Diffuse |
| Sensor Body Style | Rectangular |
| Sensor Cable Length | 0.3m |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Short-circuit Protection | Yes |
| Standards | Ce, Culus, Ukca |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 1 kHz |
| Type Of Light | Red Light |
| Type Of Short-circuit Protection | Pulsed |
| Width | 21 mm |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Sensing Method | Max. Sensing Distance | Body Material | Ip Rating | Depth | Operating Mode | Circuit Type | Operating Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OGH581 | Diffuse | 200 mm | Zinc Alloy | - | 52 mm | Selectable Light On/Dark On | NPN | 1000 Hz | €203.95 | |
 |
OGE282 | Through Beam | 20m | Zinc | IP65, IP67 | 52 mm | Dark On | NPN | 1000 Hz | €158.04 | |
 |
OGH282 | Diffuse | 100 mm | Zinc | IP65, IP67 | 52 mm | Light On | NPN | 1000 Hz | €195.63 | |
|
OGH283 | Diffuse | 200 mm | Zinc | IP65, IP67 | 52 mm | Light On | - | 1000 Hz | €195.65 | |
|
OGH580 | Diffuse | 200 mm | Zinc | IP65, IP67 | 52 mm | Selectable Light On/Dark On | PNP | 1000 Hz | €198.63 | |
 |
OGP280 | Polarized Retroreflective | 4m | Zinc | IP65, IP67 | 52 mm | Light On | PNP | 1000 Hz | €180.61 | |
|
OGE280 | Through Beam Receiver | 20m | - | - | 52 mm | Dark On | PNP | 1000 Hz | €161.06 |
