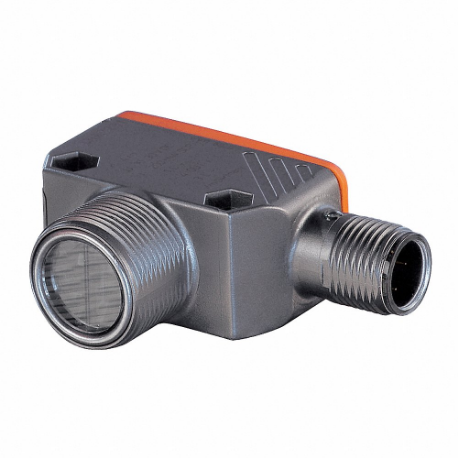

IFM OGE282 Photoelectric Sensor, 10 to 30V DC, NPN, 4-Pin M12 Male Connector, Dark On
Item: CR4LUBModel: OGE282Cross Ref: 35T425
7 In Stock
Ships within 2 days via
10.00% off
€142.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | Zinc |
| Circuit Type | NPN |
| Dc Supply Voltage Rating | 10-30V DC |
| Depth | 52 mm |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Connection Size | M12 |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Red Light |
| Features | Pmma Lens, Reverse Polarity And Overload Protection |
| Height | 35 mm |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67 |
| Length | 35.4 mm |
| Light Source | LED |
| Max. Load Amps | 200 mA |
| Max. Sensing Distance | 20m |
| Nema Enclosure Rating | No Enclosure |
| Nema Rating | Not Rated |
| Number Of Pins | 4 |
| Operating Frequency | 1000 Hz |
| Operating Mode | Dark On |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Depth | 36 mm |
| Overall Height | 53 mm |
| Overall Width | 19 mm |
| Power Requirement | 10-30V DC |
| Response Time | 2.5 ms |
| Sensing Method | Through Beam |
| Sensor Body Style | Rectangular |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Dark On |
| Shape | Right Angle |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 1 kHz |
| Through Beam Sensor Component | Photoelectric Sensor Receiver |
| Width | 18 mm |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Sensing Method | Max. Sensing Distance | Body Material | Ip Rating | Depth | Operating Mode | Circuit Type | Operating Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

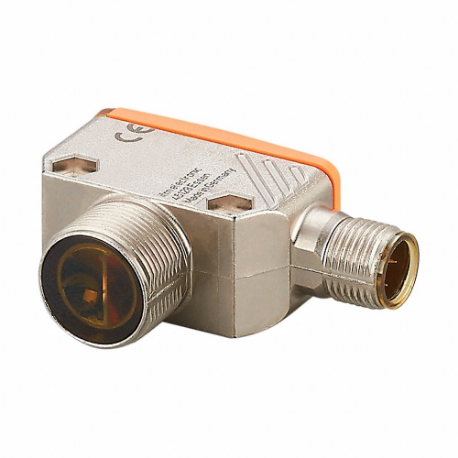

OGH581 | Diffuse | 200 mm | Zinc Alloy | - | 52 mm | Selectable Light On/Dark On | NPN | 1000 Hz | €203.95 | |
 |

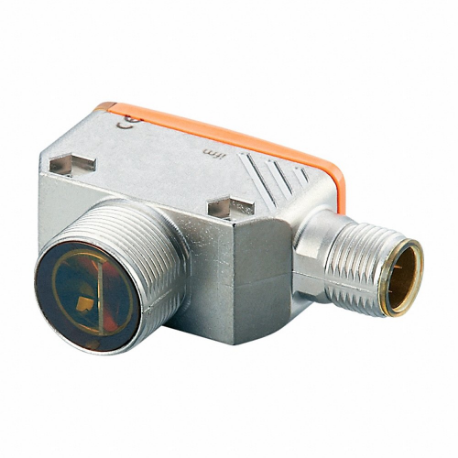

OGH282 | Diffuse | 100 mm | Zinc | IP65, IP67 | 52 mm | Light On | NPN | 1000 Hz | €195.63 | |
|
OGH283 | Diffuse | 200 mm | Zinc | IP65, IP67 | 52 mm | Light On | - | 1000 Hz | €195.65 | |
|
OGH580 | Diffuse | 200 mm | Zinc | IP65, IP67 | 52 mm | Selectable Light On/Dark On | PNP | 1000 Hz | €198.63 | |
 |

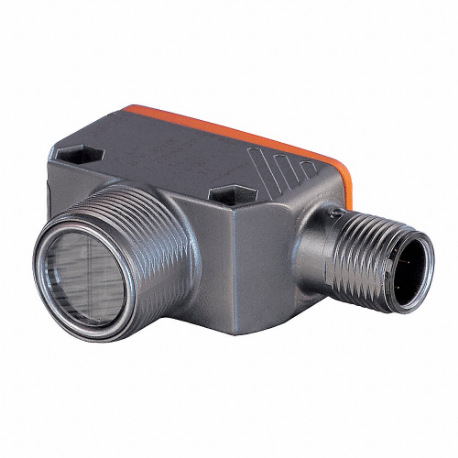

OGP280 | Polarized Retroreflective | 4m | Zinc | IP65, IP67 | 52 mm | Light On | PNP | 1000 Hz | €180.61 | |
|
OGE280 | Through Beam Receiver | 20m | - | - | 52 mm | Dark On | PNP | 1000 Hz | €161.06 | |
|
OGE281 | Through Beam | 20m | Zinc | IP65, IP67 | 52 mm | Light On | PNP | 1000 Hz | €161.01 |
