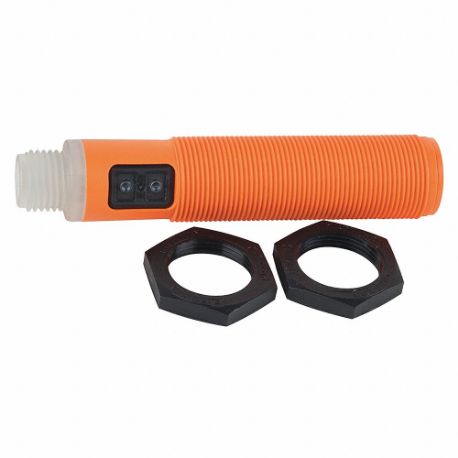

IFM KG0016 Cylindrical Proximity Sensor, 20 To 250VAC/Dc, 10 Hz Proximity Sensor Op Freq, 2 Wire
Item: CR4LHJModel: KG0016Cross Ref: 35T529
7 In Stock
Ships within 2 days via
10.00% off
€270.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage Rating | 30-250V AC |
| Basic Proximity Sensor Case Material | Plastic |
| Body Material | PBT |
| Dc Supply Voltage Rating | 20-250V DC |
| Display Qty | 1 |
| Electrical Connection | 1/2" Connector |
| Electrical Installation Type | Direct Connector |
| Factory Setting Sensing Range | 12 |
| Features | Potentiometer |
| Housing | Threaded Type |
| Includes | (2) Lock Nuts |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67 |
| Length | 87 mm |
| Max. Detecting Distance | 12 mm |
| Max. Load Current | 150/100 mA |
| Number Of Pins | 2 |
| Number Of Wires | 2 |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | 2 Wire AC/DC |
| Output Circuit Contact Form | NO, NC |
| Output Circuit Current - Maximum | 100 mA |
| Output Circuit Type | Ac, DC-Type |
| Output Circuit Voltage - Maximum | 8V DC |
| Output Mode | NC/No |
| Overload Protection | No |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Dia. | 18 mm |
| Proximity Sensor Electrical Connection Size | 1/2" |
| Proximity Sensor Electrical Connection Type | UNF |
| Proximity Sensor Operating Frequency | 10 Hz |
| Proximity Sensor Output Circuit Type | Two Wire |
| Reverse Polarity Protection | Yes |
| Sensing Distance - Maximum | 24 mm |
| Sensing Distance - Minimum | 4 mm |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Capacitive |
| Sensing Range Adjustable | Yes |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 18 mm |
| Sensor Height | 87 mm |
| Shielded / Unshielded | Unshielded |
| Short-circuit Proof | No |
| Supply Voltage | 30-250V AC/20-250V DC |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Detecting Distance | Ip Rating | Number Of Wires | Output Mode | Proximity Sensor Dia. | Proximity Sensing Method | Sensing Method | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IIS229 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Unshielded | €139.22 | |
 |
IIS244 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €143.74 | |
 |
IIS228 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €139.22 | |
 |
IIS248 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.23 | |
|
IIS235 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.20 | |
|
IIS237 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 | |
 |
IIS249 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 |
