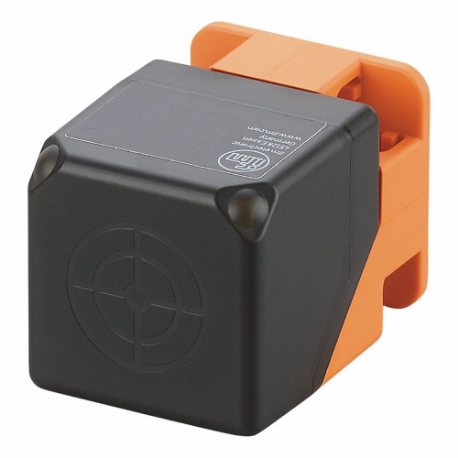

IFM IM5115 Rectangular Proximity Sensor, 10 To 36V DC, 100 Hz, 3 Wire Pnp
Item: CR4LYCModel: IM5115Cross Ref: 35T327
7 In Stock
Ships within 2 days via
10.00% off
€133.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rectangular Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Basic Proximity Sensor Case Material | Plastic |
| Body Material | Polyamide |
| Case Material | Polyamide |
| Dc Supply Voltage Rating | 10-36V DC |
| Depth | 40 mm |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Housing | Rectangular |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 66 mm |
| Max. Detecting Distance | 20 mm |
| Max. Load Current | 200 mA |
| Mounting | Flush Mountable |
| Number Of Wires | 3 |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
| Output Circuit Current - Maximum | 200 mA |
| Output Circuit Type | PNP |
| Output Circuit Voltage - Maximum | 2.5V DC |
| Output Mode | No |
| Overall Depth | 40 mm |
| Overall Height | 54 mm |
| Overall Width | 40 mm |
| Overload Protection | Yes |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Operating Frequency | 100 Hz |
| Proximity Sensor Output Circuit Type | Three Wire PNP |
| Reverse Polarity Protection | Yes |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Rectangular |
| Shielded / Unshielded | Shielded |
| Short-circuit Protection | Yes |
| Supply Voltage | 10-36V DC |
| Thread Size | M12 |
| Type Of Short-circuit Protection | Pulsed |
| Width | 40 mm |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 4 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 4 |
| Country of Origin | RO |
Product Variants
| Product | Model | Max. Detecting Distance | Ip Rating | Number Of Wires | Output Mode | Sensing Method | Proximity Sensing Method | Proximity Sensor Output Circuit Type | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

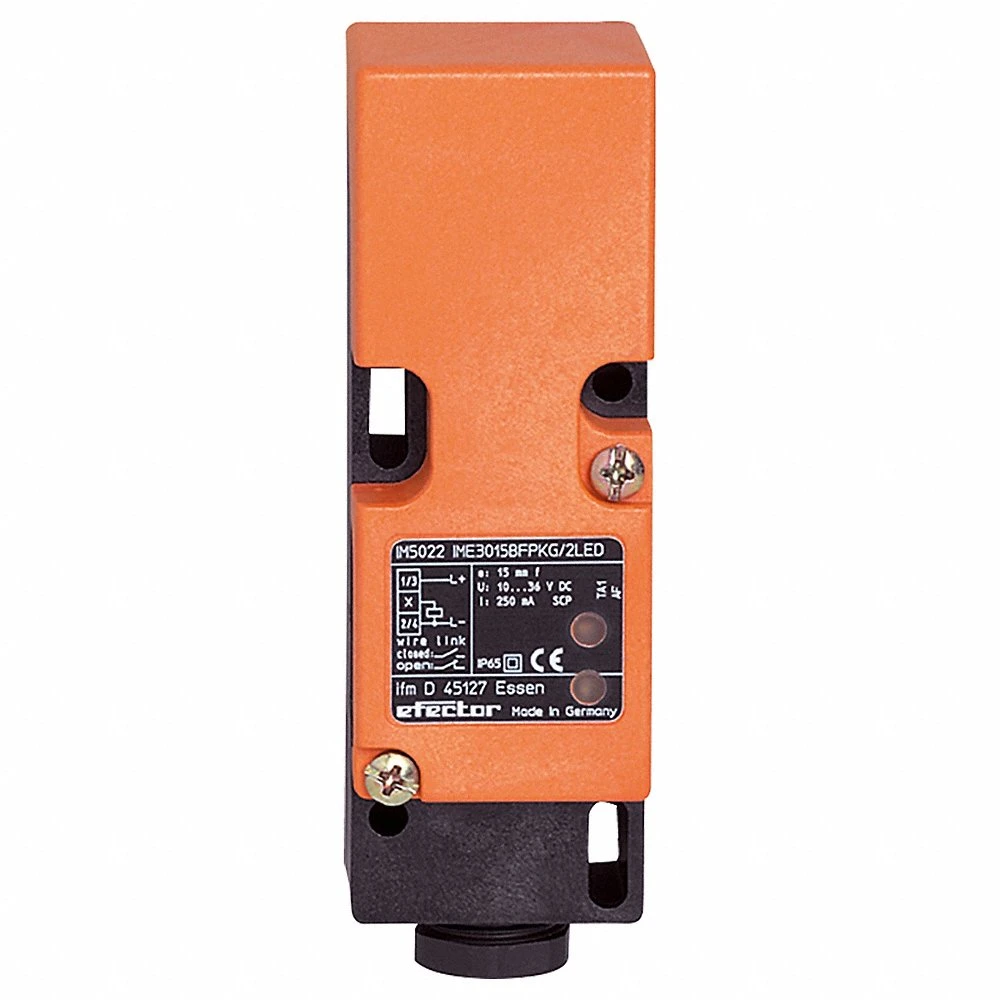

IM0020 | 15 mm | IP65 | 2 | NC/No | Inductive | Inductive | Two Wire | - | €313.07 | |
 |

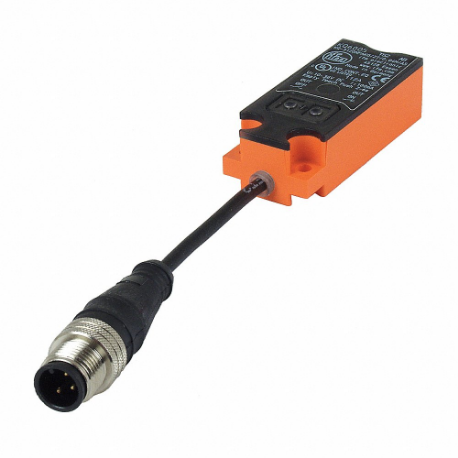

KQ6005 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP | Unshielded | €224.27 | |
 |

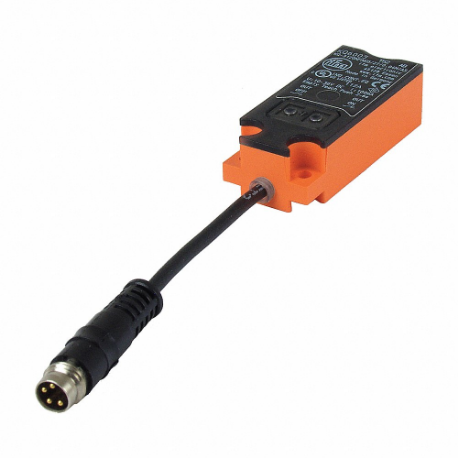

KQ6003 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP, NPN | Unshielded | €225.58 | |
 |

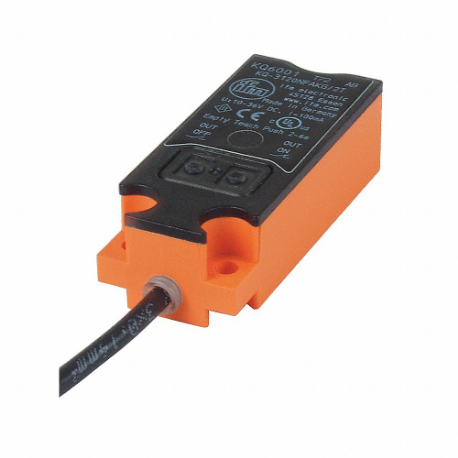

KQ6001 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP, NPN | Unshielded | €238.59 | |
 |
IS5001 | 2 mm | IP67 | 3 | No | Inductive | Inductive | PNP | Shielded | €150.51 | |
|
IM5116 | 35 mm | IP67 | 3 | No | Inductive | Inductive | Three Wire PNP | Unshielded | €147.54 | |
 |

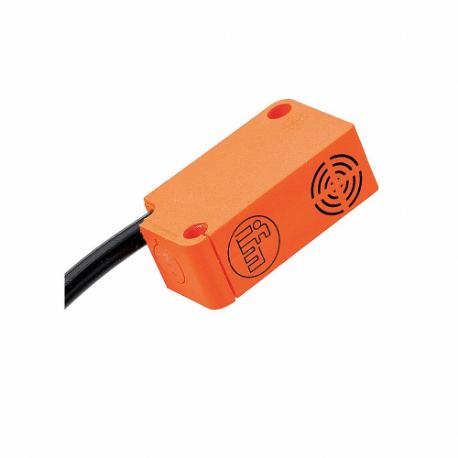

IS5004 | 2 mm | IP67 | 3 | NC | Inductive | Inductive | NPN | Shielded | €188.14 |
