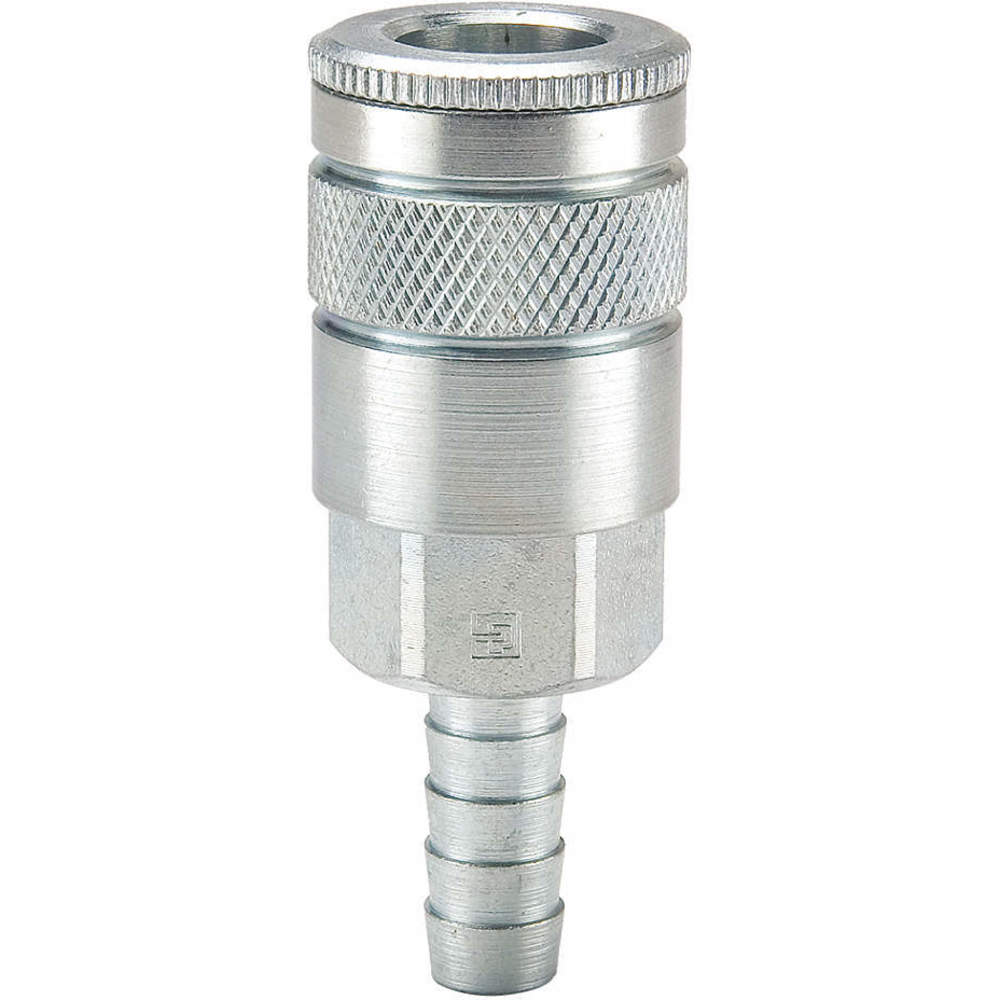

PARKER 16-7B Quick Coupler, 1/2 Inch Size, 300 Psi, Steel
Item: AC4WBUModel: 16-7BCross Ref: 30N356
7 In Stock
Ships within 2 days via
10.00% off
€77.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Application | Pneumatic |
| Barb Size | 3/4" |
| Barbed | Yes |
| Body Material | Steel |
| Body Size | 1/2" |
| Connection Type | Hose Barb |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Finish | Trivalent Chrome |
| Finish, Coating | Trivalent Chromium Plated |
| Fitting Type | Male Hose Barb |
| For Hose I.d. | 3/4" |
| Hose Connection | Hose Barb |
| Hose Connection Type | Hose Barb |
| Hose Fitting Gender | Male |
| Hose Fitting Size | 3/4" |
| Hose Inside Dia. | 3/4" |
| Includes Valve | Yes |
| Interchange Type | Automotive, Tru Flate |
| Length | 3 3/5" |
| Lock Type | Sleeve |
| Locking Type - Quick Connect Air Couplings | Sleeve |
| Material | Steel |
| Max. Flow Rate | 3114.85 LPM |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 1 3/16" |
| Max. Pressure | 300 psi |
| Max. Working Pressure | 300 psi |
| Max. Working Pressure @ 70 F | 300 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 3 5/8" |
| Plating | Zinc |
| Quick Connect Air Coupling Locking Type | Sleeve |
| Quick Connect Air Coupling Material | Steel |
| Quick Connect Air Coupling Seals | Nitrile |
| Seal | Nitrile |
| Seal Material | Nitrile |
| Seals | Nitrile |
| Seals - Quick Connect Air Couplings | Nitrile |
| Temp. Range | -40°F to +250°F |
| Thread Size | Not Available |
| Valve Type | Tubular |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 9.17 |
| Ship width (cm) | 3.3 |
| HS code | 8481803090 |
| Country of Origin | US |
Product Variants
| Product | Model | Hose Fitting Gender | Connection Type | Hose Fitting Size | Thread Size | Barbed | Interchange Type | Body Size | Hose Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24 | Male | NPT | 3/8" | 3/8"-18 | No | Industrial | 3/8" | MNPT | €57.89 | |
|
24C | Male | NPT | 1/4" | 1/4"-18 | No | Industrial | 3/8" | MNPT | €61.31 | |
|
24F | Male | NPT | 1/2" | 1/2"-14 | No | Industrial | 3/8" | MNPT | €61.08 | |
 |
25 | Female | NPT | 3/8" | 3/8"-18 | No | Industrial | 3/8" | FNPT | €49.00 | |
|
25C | Female | NPT | 1/4" | 1/4"-18 | No | Industrial | 3/8" | FNPT | €54.15 | |
|
25F | Female | NPT | 1/2" | 1/2"-14 | No | Industrial | 3/8" | FNPT | €67.31 | |
 |
B22 | Male | NPT | 1/4" | 1/4"-18 | No | Industrial | 1/4" | MNPT | €28.27 |
