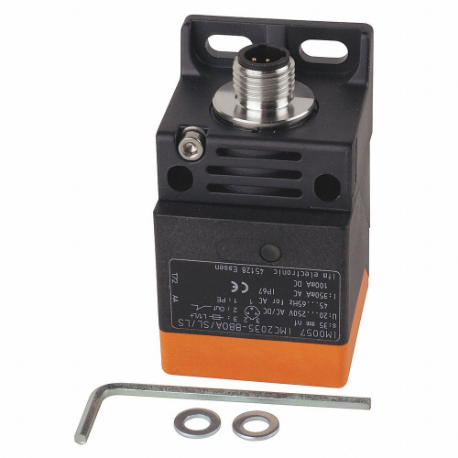

IFM IM0057 Rectangular Proximity Sensor, 24 To 240V AC/Dc, 25 Hz Ac/50 Hz Dc, 3 Wire, Plastic
Item: CR4LYKModel: IM0057Cross Ref: 35T336
7 In Stock
Ships within 2 days via
10.00% off
€200.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rectangular Proximity Sensor |
| Ac Supply Voltage Rating | 20-250V AC |
| Basic Proximity Sensor Case Material | Plastic |
| Body Finish | Bronze Coated |
| Body Material | PPE |
| Case Material | PPE, PPS |
| Dc Supply Voltage Rating | 20-250V DC |
| Depth | 40 mm |
| Display Qty | 1 |
| Electrical Connection | 1/2" Connector |
| Electrical Installation Type | Direct Connector |
| Housing | Rectangular |
| Includes Indicator Lights | Indicator Lights Included |
| Increased Sensing Range | Yes |
| Ip Rating | IP67 |
| Length | 66 mm |
| Max. Detecting Distance | 35 mm |
| Max. Load Current | 250/100 mA |
| Number Of Pins | 3 |
| Number Of Wires | 2 |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | 2 Wire AC/DC |
| Output Circuit Contact Form | NC |
| Output Circuit Current - Maximum | 250 mA |
| Output Circuit Type | Ac, DC-Type |
| Output Circuit Voltage - Maximum | 6V DC |
| Output Mode | NC |
| Overall Depth | 40 mm |
| Overall Height | 66 mm |
| Overall Width | 40 mm |
| Overload Protection | No |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Electrical Connection Type | Unf Male Connector |
| Proximity Sensor Operating Frequency | 25 Hz AC/50 Hz DC |
| Proximity Sensor Output Circuit Type | Three Wire |
| Reverse Polarity Protection | No |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Inductive |
| Sensor Body Style | Rectangular |
| Shielded / Unshielded | Unshielded |
| Short-circuit Proof | No |
| Supply Voltage | 20-250V AC/20-250V DC |
| Thread Size | 1/2"-20 |
| Width | 40 mm |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 4 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 4 |
| Country of Origin | RO |
Product Variants
| Product | Model | Max. Detecting Distance | Ip Rating | Number Of Wires | Output Mode | Sensing Method | Proximity Sensing Method | Proximity Sensor Output Circuit Type | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IM0020 | 15 mm | IP65 | 2 | NC/No | Inductive | Inductive | Two Wire | - | €313.07 | |
 |
KQ6005 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP | Unshielded | €224.27 | |
 |
KQ6003 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP, NPN | Unshielded | €225.58 | |
 |
KQ6001 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP, NPN | Unshielded | €238.59 | |
 |
IS5001 | 2 mm | IP67 | 3 | No | Inductive | Inductive | PNP | Shielded | €150.51 | |
 |
IM5115 | 20 mm | IP67 | 3 | No | Inductive | Inductive | Three Wire PNP | Shielded | €147.82 | |
|
IM5116 | 35 mm | IP67 | 3 | No | Inductive | Inductive | Three Wire PNP | Unshielded | €147.54 |
