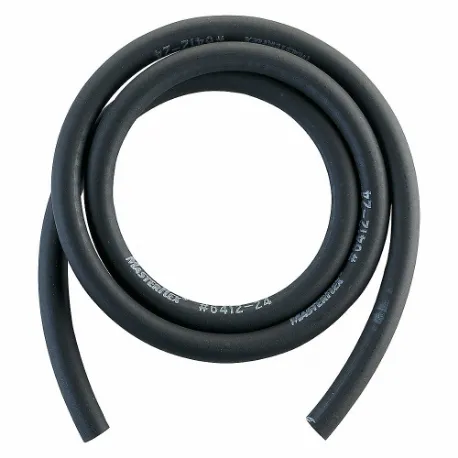

HEIDOLPH 036303830 Tubing, Viton, Fkm, Black, 7.9 mm Inside Dia, 12.9 mm Outside Dia, 3.28 Ft Overall Length
Item: CR3VFRModel: 036303830Cross Ref: 36RP17
7 In Stock
Ships within 2 days via
10.00% off
€2,170.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Clarity | Opaque |
| Color | Black |
| Continuous Max. Operating Pressure | 0.8 Bar |
| Features | Low Gas Permeability |
| Flexibility | Flexible |
| For Fluid Type | Acids, Lyes, Solvents |
| Inside Dia. | 5/16" |
| Inside Diameter | 7.9 mm |
| Length | 3.28 ft. |
| Material | FKM |
| Material Trade Name | Viton |
| Max. Operating Temp. | 401°F |
| Maximum Operating Pressure | 0.8 Bar, 1.8 Bar |
| Maximum Operating Temperature | 205°C |
| Min. Operating Temp. | -22°F |
| Minimum Operating Temperature | -30°C |
| Outside Dia. | 33/64" |
| Outside Diameter | 12.9 mm |
| Overall Length | 3.3 ft. |
| Resistance Properties | Acid Resistant, Corrosion Resistant, Solvents Resistant |
| Short Time Max. Operating Pressure | 1.8 Bar |
| System Of Measurement | Metric |
| Type | Flexible |
| Wall Thickness | 2.5 mm |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Outside Dia. | Inside Dia. | Wall Thickness | Continuous Max. Operating Pressure | Inside Diameter | Outside Diameter | Short Time Max. Operating Pressure | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 036303760 | 5/32" | 1/32" | 1.6 mm | 0.7 Bar | 0.8 mm | 4 mm | 1.7 Bar | FKM | €651.95 | |
| 036303770 | 3/16" | 1/16" | 1.6 mm | 0.7 Bar | 1.7 mm | 4.9 mm | 1.7 Bar | FKM | €681.59 | |
| 036303750 | 4.59 mm | 2.79 mm | 0.9 mm | 0.5 Bar | - | - | - | FKM | €302.26 | |
| 036303780 | 1/4" | 1/8" | 1.6 mm | 0.7 Bar | 3.1 mm | 6.3 mm | 1.7 Bar | FKM | €824.23 | |
| 036303790 | 5/16" | 3/16" | 1.6 mm | 0.5 Bar | 4.8 mm | 8 mm | 1.5 Bar | FKM | €1,084.21 | |
| 036303810 | 9.8 mm | 4.8 mm | 2.5 mm | 0.8 Bar | - | - | 1.8 Bar | FKM | - | RFQ
|
| 036303820 | 7/16" | 1/4" | 2.5 mm | - | 6.4 mm | 11.3 mm | - | FKM | - | RFQ
|
