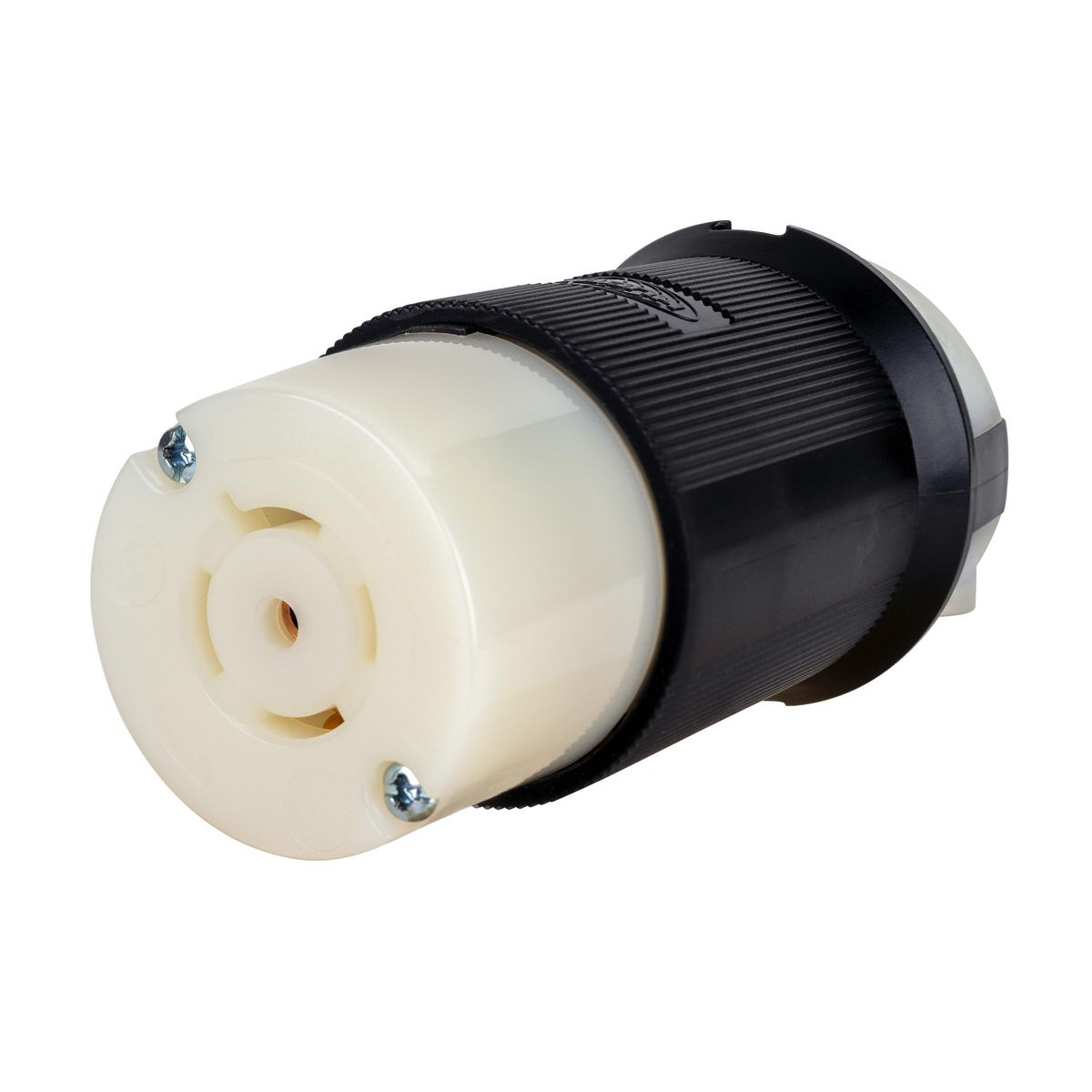

HUBBELL HBL2523ST Locking Connector, L22-20R, 20 A, 277/480V AC, 4 Poles, Black/White
Item: CR4FWNModel: HBL2523STCross Ref: 797VC9
7 In Stock
Ships within 2 days via
10.00% off
€166.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 20A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| For Environment | Dry |
| For Maximum Cable Diameter | 1.15" |
| For Minimum Cable Diameter | 0.35" |
| Grade | Federal Specification |
| Grounding | Non Grounded |
| Housing Color | Black, White |
| Hp | 5 hp |
| Ip Rating | IP20 |
| Length | 2.33" |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Wire Size | 16 AWG |
| Nema Receptacle Configuration | NEMA L22-20R |
| Number Of Poles | 4 |
| Number Of Wires | 4 |
| Phase | Three |
| Product Datasheet | hubbell-hbl2523st.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 277/480V AC |
| Voltage Rating | 277/480V AC |
| Wire Connection Type | Spring Clamp Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Voltage Rating | Phase | Nema Configuration | Amps | Grounding | Nema Receptacle Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24CM23 | 3 | 4 | - | - | - | - | - | - | €160.24 | |
 |
HBL2413ST | 3 | 4 | 125/250V AC | Three | - | 20A | Grounded | NEMA L14-20R | €116.75 | |
 |
HBL2713ST | 3 | 4 | 125/250V AC | Single | - | 30A | Grounded | NEMA L14-30R | €223.28 | |
 |
HBL2423ST | 3 | 4 | 250V AC | Three | L15-20 | 20A | Grounded | NEMA L15-20R | €116.36 | |
 |
HBL2723ST | 3 | 4 | 250V AC | Three | L15-30 | 30A | Grounded | NEMA L15-30R | €226.31 | |
 |
HBL2433ST | 3 | 4 | 480V AC | Three | L16-20 | 20A | Grounded | NEMA L16-20R | €124.61 | |
 |
HBL2733ST | 3 | 4 | 480V AC | Three | - | 30A | Grounded | NEMA L16-30R | €231.35 |
