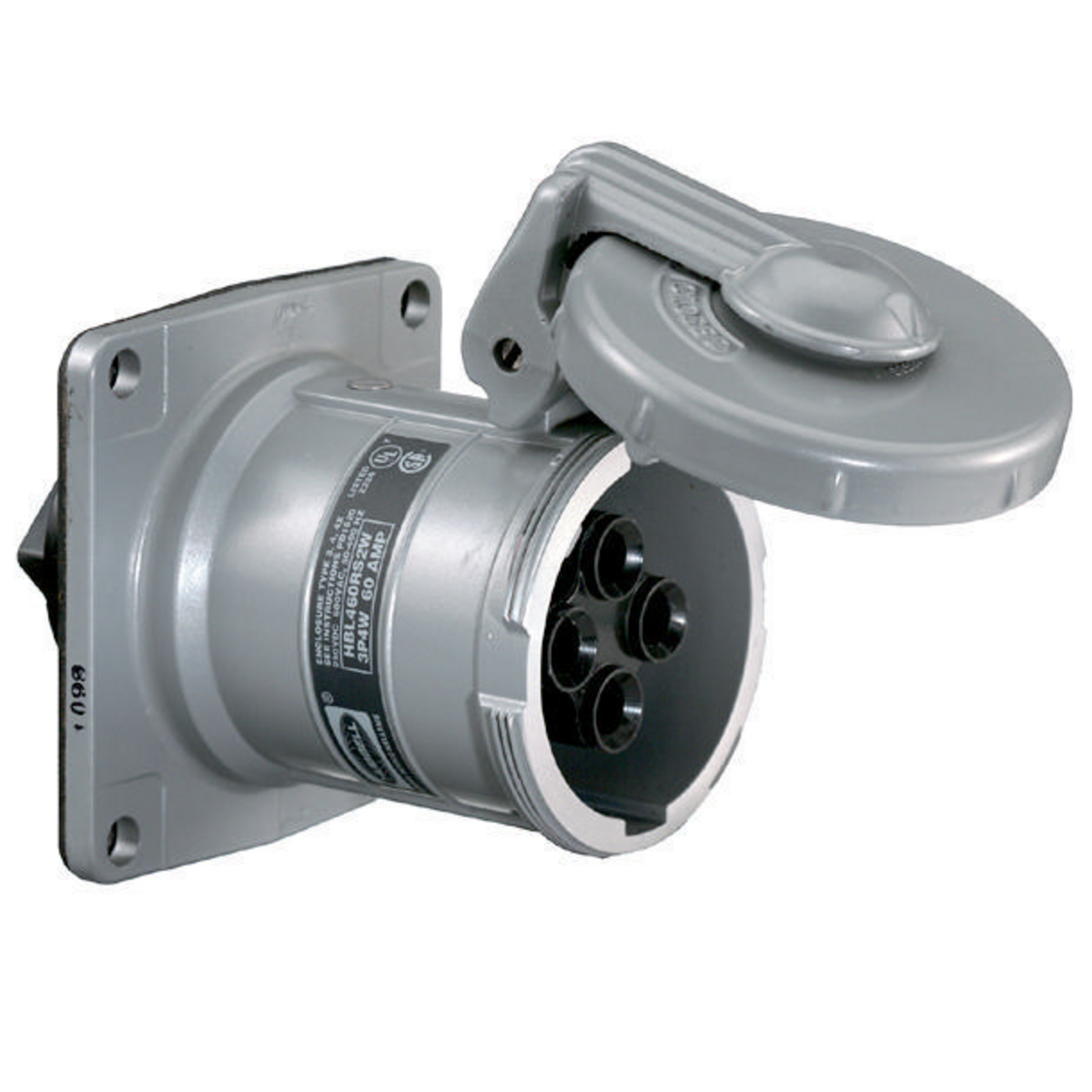

HUBBELL WIRING DEVICE-KELLEMS HBL560RS1W Pin And Sleeve Receptacle, Female, 60 A, 600 VAC, 3 Pole
Item: AE4ARTModel: HBL560RS1WCross Ref: 5HJ40
7 In Stock
Ships within 2 days via
10.00% off
€769.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Receptacle |
| Amps | 60A |
| Cap Type | Spring Loaded Cap |
| Color | Gray |
| Connection Orientation | Straight |
| Current Rating | 60A |
| Exposure Conditions | Wateright |
| Face Diameter | 4.66" |
| Features | Color Coded |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Horsepower Rating | 15 hp |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Zytel 101 |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Gangs | 1 |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl560rs1w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Wattage | 36000 W |
| Wattage | 36000 |
| Wire Connection Type | Screw Terminals |
| Wire Size | 8 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 11.94 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 13.72 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Phase | Number Of Poles | Number Of Wires | Grounding Style | Housing Color | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL360RS1W | 60A | 600V AC/250V DC | 1 | 2.0 | 3 | Style 1 | Silver | 8 AWG to 2 AWG | €674.46 | |
 |
HBL3100RS2W | 100A | 600V AC/250V DC | 1 | 2.0 | 3 | Style 2 | Silver | #3 AWG to #1/0 AWG | €918.99 | |
 |
HBL360RS2W | 100A | 600V AC/250V DC | 1 | 2.0 | 3 | Style 1 | Silver | 8 AWG to 2 AWG | €713.33 | |
 |
HBL4100RS1W | 100A | 600V AC/250V DC | 3 | 3.0 | 4 | Style 1 | Silver | #3 AWG to #1/0 AWG | €913.03 | |
 |
HBL4100RS2W | 100A | 600V AC/250V DC | 3 | 3.0 | 4 | Style 1 | Silver | #3 AWG to #1/0 AWG | €1,192.67 | |
 |
HBL430RS1W | 30A | 600V AC/250V DC | 3 | 3.0 | 4 | Style 1 | Silver | 12 AWG to 8 AWG | €470.15 | |
 |
HBL430RS2W | 30A | 600V AC/250V DC | 3 | 3.0 | 4 | Style 1 | Silver | 12 AWG to 8 AWG | €627.25 |
