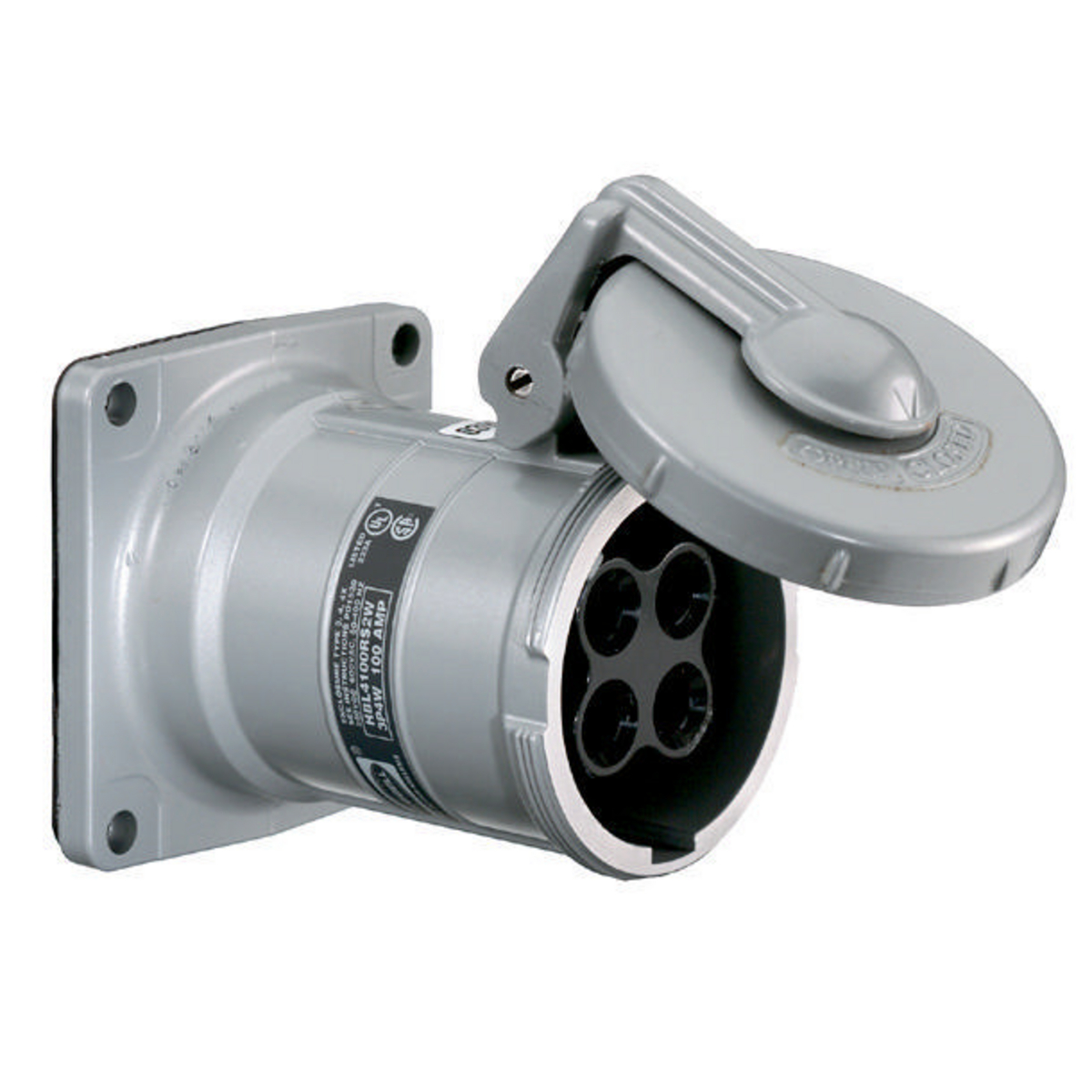

HUBBELL WIRING DEVICE-KELLEMS HBL4100RS1W Pin And Sleeve Receptacle, Female, 100 A, 600 VAC, 3 Pole
Item: AE4AQXModel: HBL4100RS1WCross Ref: 5HJ18
7 In Stock
Ships within 2 days via
5.00% off
€867.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Receptacle |
| Amps | 100A |
| Cap Type | Spring Loaded Cap |
| Color | Gray |
| Connection Orientation | Straight |
| Exposure Conditions | Wateright |
| Face Dia. | 4.7" |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Housing Color | Silver |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Valox 357 |
| Market | Industrial |
| Material | Thermoplastic |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 1/0 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 3 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Gangs | 1 |
| No. Of Poles | 3.0 |
| No. Of Wires | 4 |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl4100rs1w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 600V AC/250V DC |
| Wattage | 60000 |
| Watts | 60000 W |
| Wire Connection Type | Screw Terminal |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 13.72 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Voltage | Amps | Phase | Wire Size | Housing Color | Max. Wire Size | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

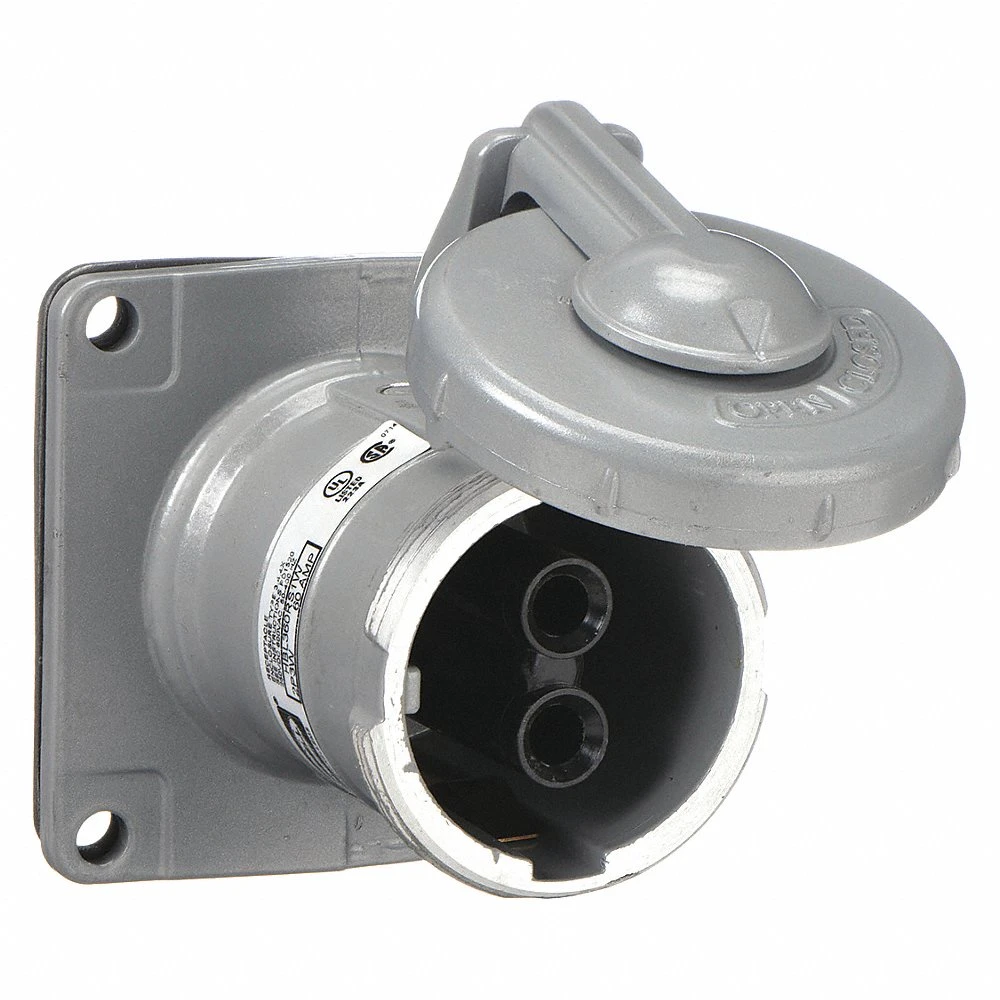

HBL360RS1W | 2.0 | 600V AC/250V DC | 60A | 1 | 8 AWG to 2 AWG | Silver | 2 AWG | 8 AWG | €674.46 | |
 |
HBL3100RS2W | 2.0 | 600V AC/250V DC | 100A | 1 | #3 AWG to #1/0 AWG | Silver | 2 AWG | 8 AWG | €918.99 | |
 |

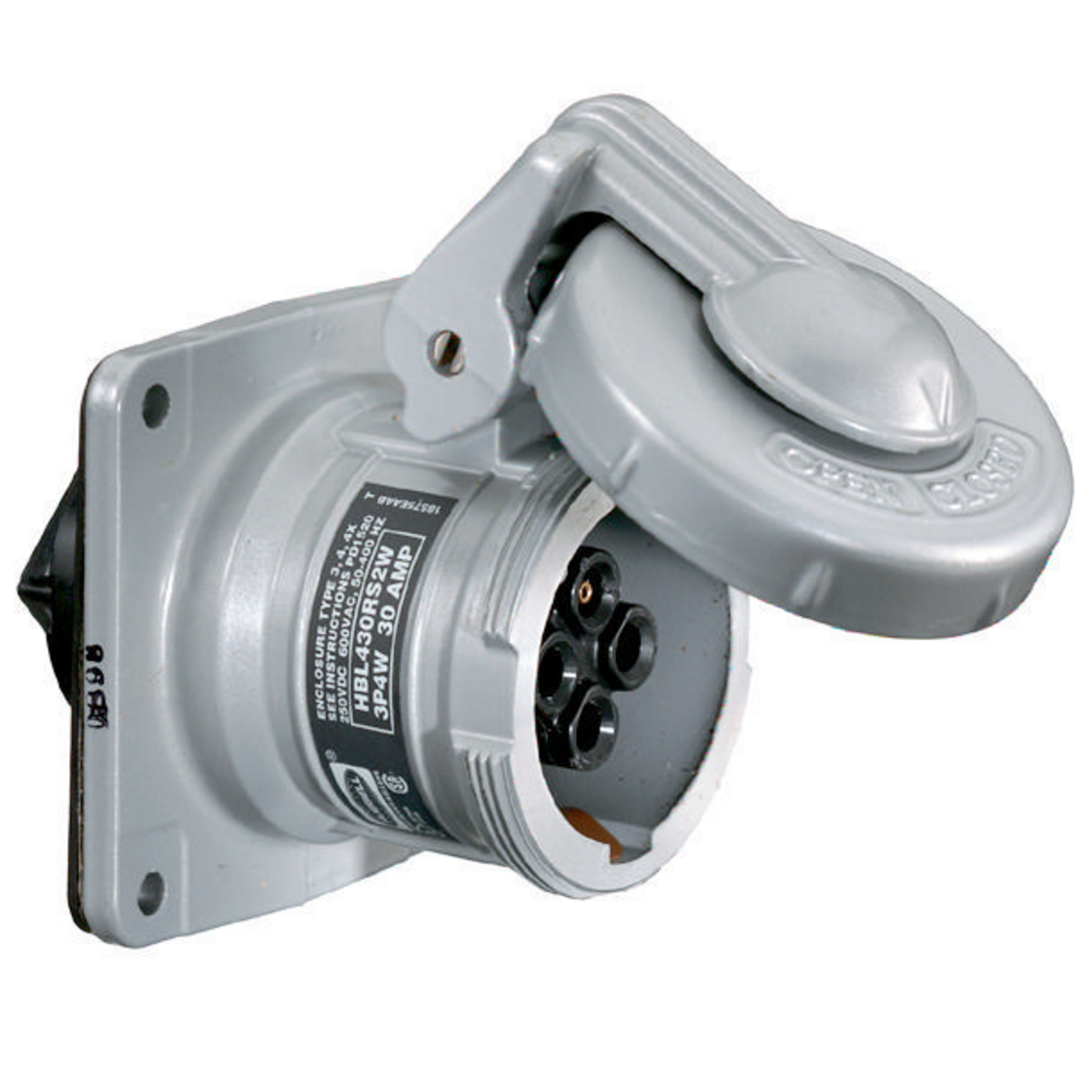

HBL360RS2W | 2.0 | 600V AC/250V DC | 100A | 1 | 8 AWG to 2 AWG | Silver | 1/0 AWG | 3 AWG | €713.33 | |
 |
HBL4100RS2W | 3.0 | 600V AC/250V DC | 100A | 3 | #3 AWG to #1/0 AWG | Silver | 8 AWG | 12 AWG | €1,192.67 | |
 |
HBL430RS1W | 3.0 | 600V AC/250V DC | 30A | 3 | 12 AWG to 8 AWG | Silver | 8 AWG | 12 AWG | €470.15 | |
 |

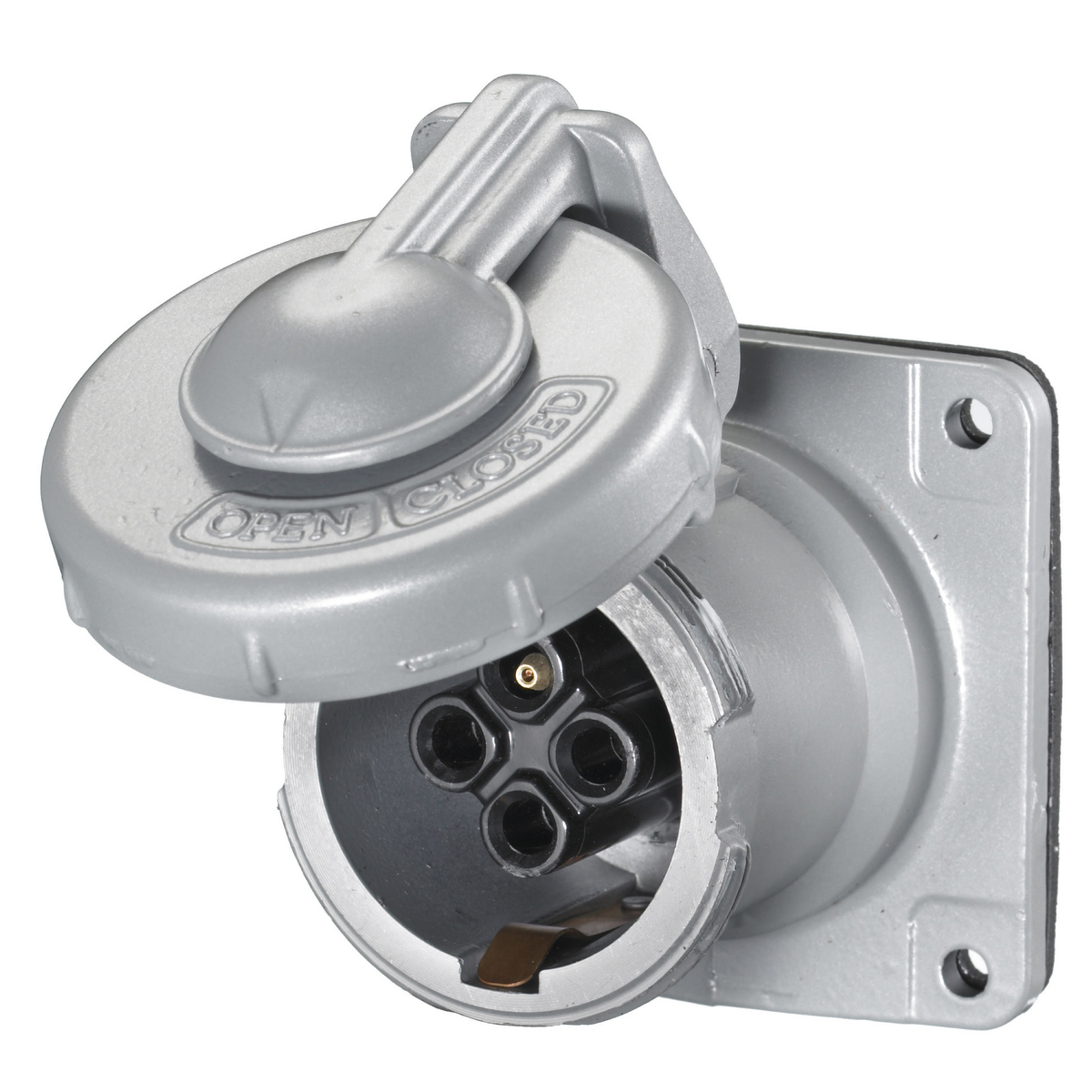

HBL430RS2W | 3.0 | 600V AC/250V DC | 30A | 3 | 12 AWG to 8 AWG | Silver | 2 AWG | 8 AWG | €627.25 | |
 |
HBL460RS1W | 3.0 | 600V AC/250V DC | 60A | 3 | 8 AWG to 2 AWG | Silver | 2 AWG | 8 AWG | €764.40 |
