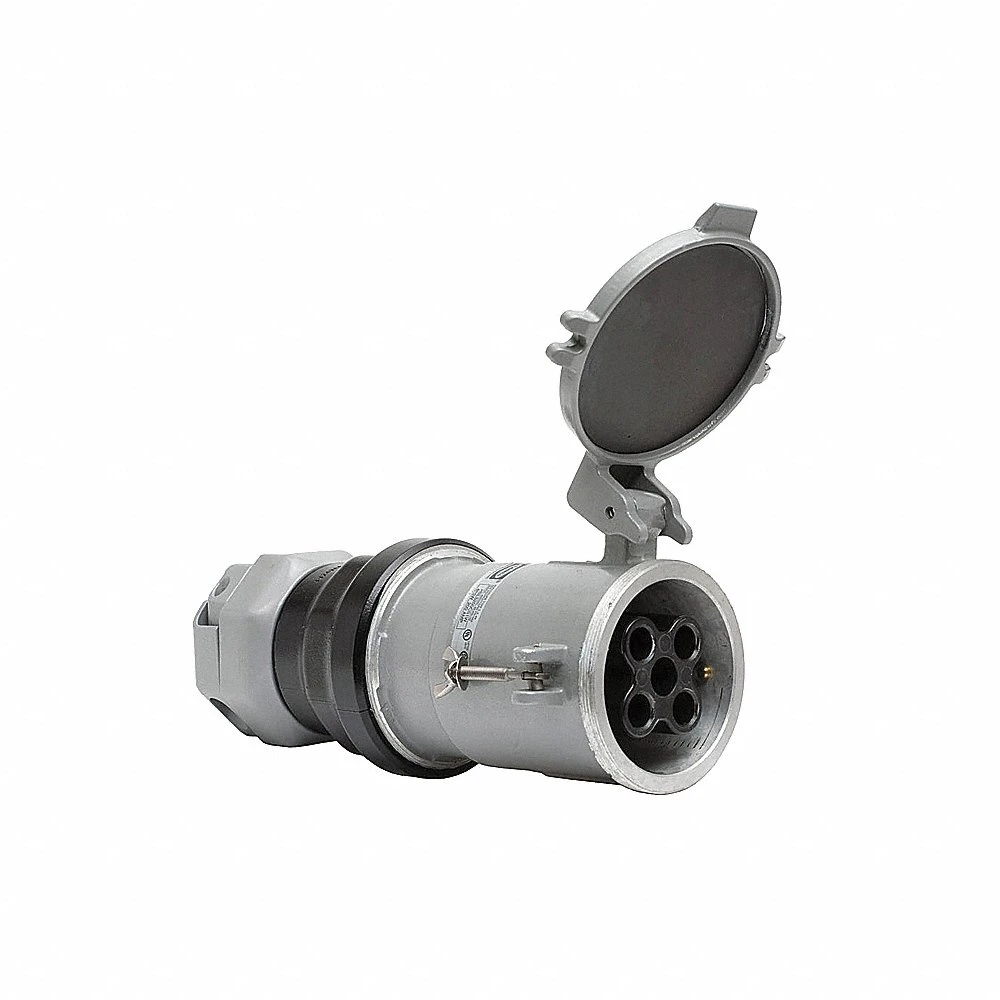

HUBBELL WIRING DEVICE-KELLEMS HBL5200CS1W Pin and Sleeve
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€2,274.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pin and Sleeve Connector |
| Amps | 200A |
| Cap Type | Spring Loaded Cap |
| Compatible With Series | Ul 1686 Class 1 Insulgrip |
| Conductor Size | #1 mcm to #250 mcm |
| Connection Orientation | Straight |
| Current Rating | 200A |
| Exposure Conditions | Wateright |
| Face Diameter | 6.7" |
| Features | Pin Chamber Confines Arcing Within The Interior Chamber, Spring Loaded, Gasketed Cover For Dust Tight Seal, Watertight Neoprene Sealing Glands For Reliable Seal |
| For Maximum Cable Diameter | 2.5" |
| For Minimum Cable Diameter | 1" |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Housing Color | Black, Gray |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Valox 357 |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Material | Composite |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1 AWG |
| Minimum Operating Temperature | -40°C |
| Mounting Style | Cord |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Conductors | 5 |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Outside Diameter | 7.39" |
| Overall Length | 13.65" |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5200cs1w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 600V AC/250V DC |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 6.48 |
| Ship height (cm) | 18.77 |
| Ship length (cm) | 34.67 |
| Ship width (cm) | 18.77 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Current Rating | Number Of Poles | Number Of Wires | Grounding Style | Housing Material | Housing Color | Phase | For Maximum Cable Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBLS330C4W | 30A | 2.0 | 3 | IEC | PBT | Yellow | Single | 1.25" | €1,029.69 | |
 |
HBLS330C6W | 30/32A | 2.0 | 3 | IEC | PBT | Blue | Single | 1.25" | €958.31 | |
 |
HBLS330C7W | 30A | 2.0 | 3 | IEC | PBT | Red | Single | 1.25" | €1,029.69 | |
|
HBLS332C4W | 32A | 2.0 | 3 | IEC | PBT | Yellow | Single | 1.25" | €977.03 | |
|
HBLS360C4W | 60A | 2.0 | 3 | IEC | PBT | Yellow | Three | 1.45" | €1,888.73 | |
|
HBLS360C6W | 60/63A | 2.0 | 3 | IEC | PBT | Blue | Single | 1.45" | €1,921.28 | |
|
HBLS360C7W | 60A | 2.0 | 3 | IEC | PBT | Red | Single | 1.45" | €1,888.73 |
