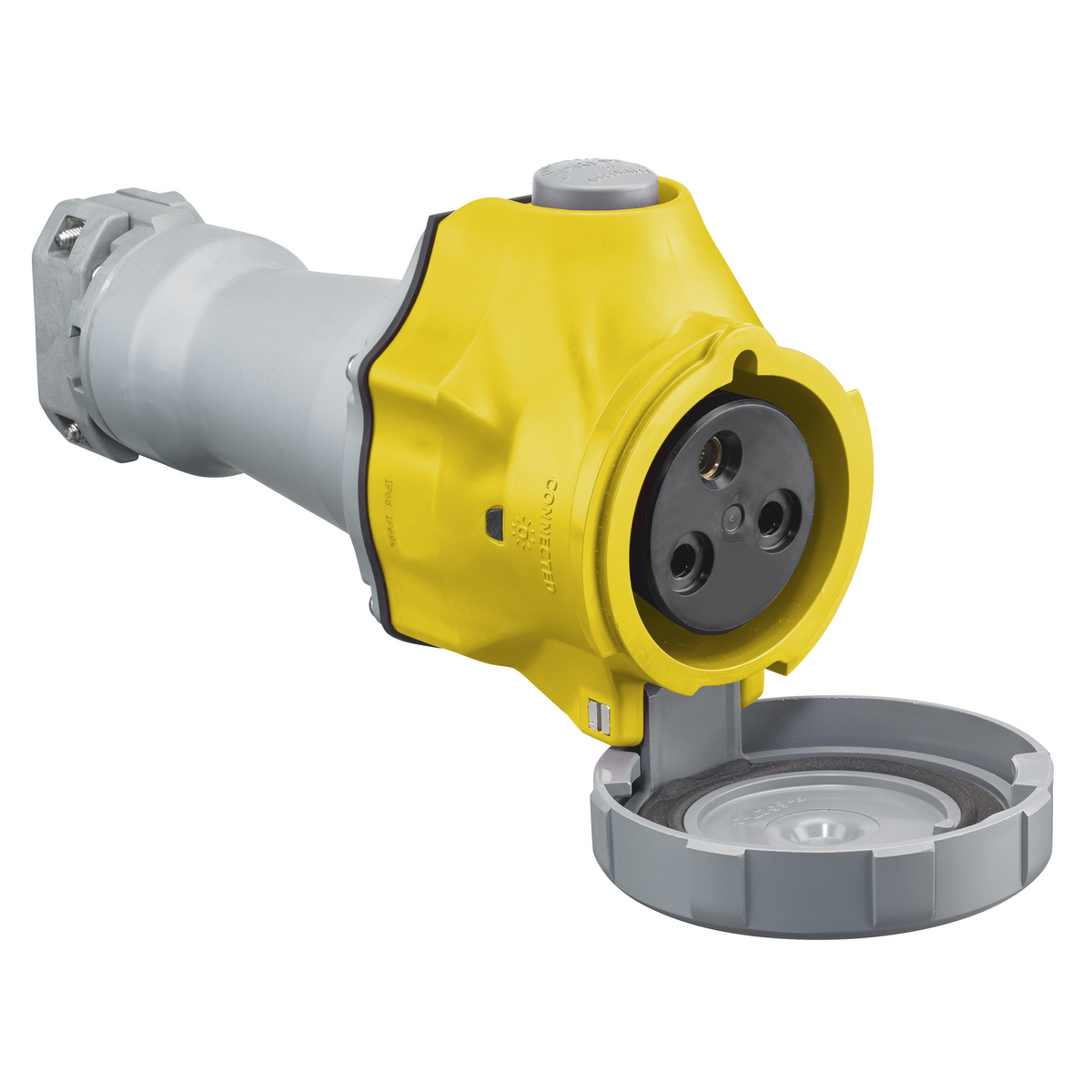

HUBBELL WIRING DEVICE-KELLEMS HBLS330C4W Pin and Sleeve Connector, 30A, 125V AC
Ships within 2 days via
Payment
Product Specifications:
| Item | Pin and Sleeve Connector |
| Amps | 30A |
| Cap Type | Spring Loaded Cap |
| Color | Yellow |
| Compatible With Series | Advantage Switch Rated |
| Connection Orientation | Straight |
| Contact Material | Beryllium Copper |
| Current Rating | 30A |
| Features | Spring Loaded Disconnect Button |
| For Environment | Wet |
| For Maximum Cable Diameter | 1.25" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 2 hp |
| Housing Color | Yellow |
| Housing Material | PBT |
| Housing Material Grade | Grade Valox 357 |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 12 AWG |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Poles | 2.0 |
| Number Of Wires | 3 |
| Outside Diameter | 4.5" |
| Overall Length | 9.9" |
| Phase | Single |
| Power Indicating Light | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbls330c4w.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.87 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 25.15 |
| Ship width (cm) | 11.43 |
| Country of Origin | US |
Product Details:
Hubbell wiring device kellems HBLS330C4W pin and sleeve connector is a robust and reliable solution designed for secure electrical connections in industrial environments. Rated for 30 amps and 125 volts AC, this connector is ideal for applications requiring consistent and safe power distribution, such as in manufacturing plants, construction sites, and heavy machinery operations. The connector is engineered to handle demanding conditions, ensuring optimal performance in challenging work environments.
The 30A rating makes it suitable for powering a range of industrial equipment, while the 125V AC rating ensures compatibility with standard power supplies. This connector meets high safety and performance standards, providing peace of mind for industrial professionals.
Documentation:
Product Variants
| Product | Model | Current Rating | Number Of Poles | Number Of Wires | Grounding Style | Housing Material | Housing Color | Phase | For Maximum Cable Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBLS332C4W | 32A | 2.0 | 3 | IEC | PBT | Yellow | Single | 1.25" | €911.90 | |
 |

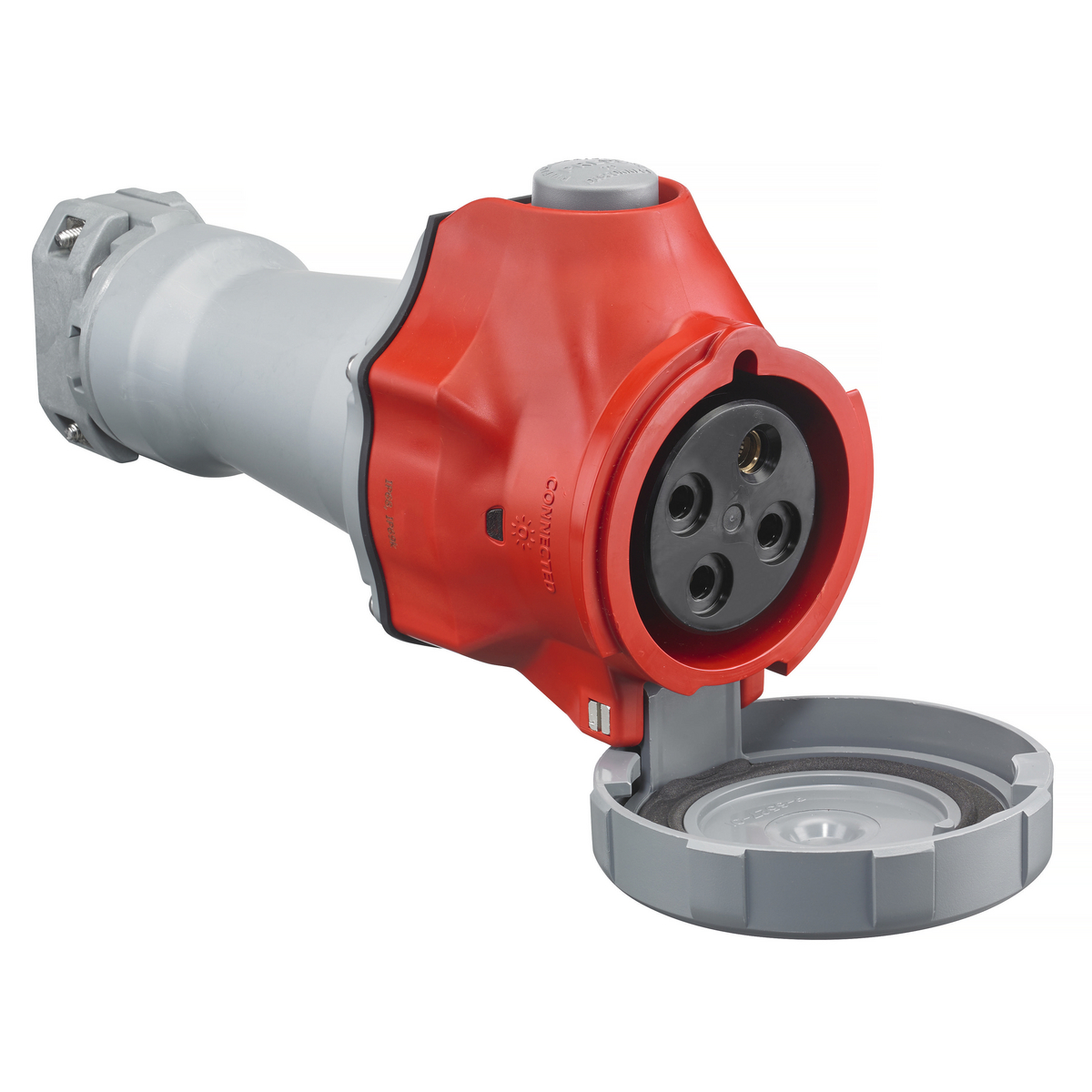

HBLS430C6W | 30/32A | 3.0 | 4 | IEC | PBT | Red | Three | 1.25" | €1,086.93 | |
 |
HBLS430C9W | 30A | 3.0 | 4 | IEC | PBT | Blue | Three | 1.25" | €898.60 | |
|
HBLS460C7W | 60A | 3.0 | 4 | IEC | PBT | Red | Three | 1.45" | €1,653.62 | |
|
HBLS460C6W | 60/63A | 3.0 | 4 | IEC | PBT | Red | Three | 1.45" | €1,973.15 | |
|
HBLS460C9W | 60/63A | 3.0 | 4 | IEC | PBT | Blue | Three | 1.45" | €1,483.70 | |
 |
HBLS430C12W | 30A | 3.0 | 4 | IEC | PBT | Orange | Single | 1.25" | €1,056.13 |
