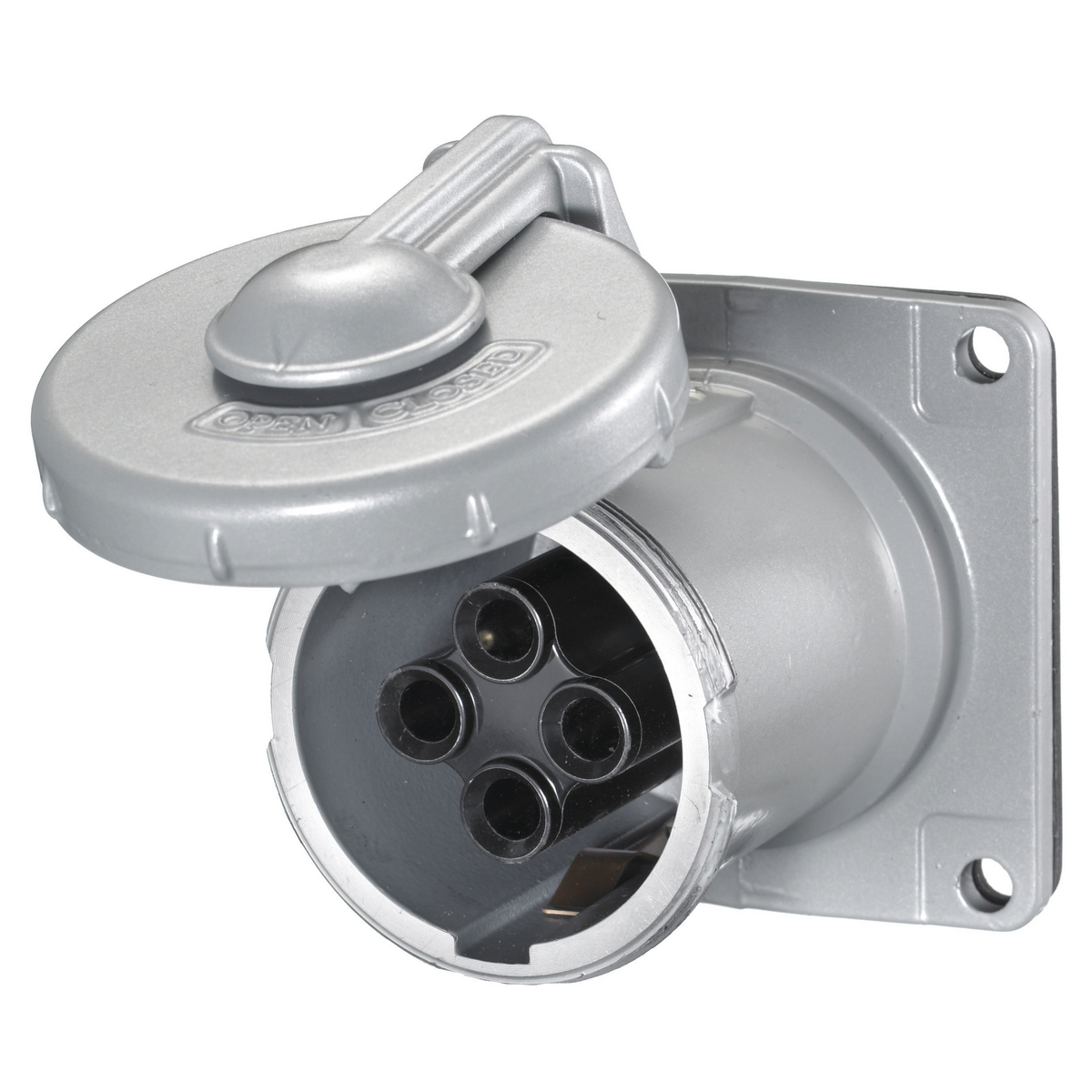

HUBBELL WIRING DEVICE-KELLEMS HBL460RS2W Pin And Sleeve Receptacle, Female, 60 A, 600 VAC, 3 Pole
Item: AE4ARLModel: HBL460RS2WCross Ref: 5HJ31
7 In Stock
Ships within 2 days via
5.00% off
€925.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Receptacle |
| Amps | 60A |
| Cap Type | Spring Loaded Cap |
| Color | Gray |
| Exposure Conditions | Wateright |
| Face Dia. | 4.66" |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Housing Color | Silver |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Valox 357 |
| Market | Industrial |
| Material | Thermoplastic |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 1/0 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 3 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | Not Rated |
| No. Of Poles | 3.0 |
| No. Of Wires | 4 |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl460rs2w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 600V AC/250V DC |
| Wattage | 36000 |
| Watts | 36000 W |
| Wire Connection Type | Screw Terminal |
| Wire Size | 8 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 1.19 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 13.72 |
| HS code | 8536694050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Voltage | Amps | Phase | Wire Size | Housing Color | Max. Wire Size | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL360RS1W | 2.0 | 600V AC/250V DC | 60A | 1 | 8 AWG to 2 AWG | Silver | 2 AWG | 8 AWG | €674.46 | |
 |
HBL3100RS2W | 2.0 | 600V AC/250V DC | 100A | 1 | #3 AWG to #1/0 AWG | Silver | 2 AWG | 8 AWG | €918.99 | |
 |
HBL360RS2W | 2.0 | 600V AC/250V DC | 100A | 1 | 8 AWG to 2 AWG | Silver | 1/0 AWG | 3 AWG | €713.33 | |
 |
HBL4100RS1W | 3.0 | 600V AC/250V DC | 100A | 3 | #3 AWG to #1/0 AWG | Silver | 1/0 AWG | 3 AWG | €913.03 | |
 |
HBL4100RS2W | 3.0 | 600V AC/250V DC | 100A | 3 | #3 AWG to #1/0 AWG | Silver | 8 AWG | 12 AWG | €1,192.67 | |
 |
HBL430RS1W | 3.0 | 600V AC/250V DC | 30A | 3 | 12 AWG to 8 AWG | Silver | 8 AWG | 12 AWG | €470.15 | |
 |
HBL430RS2W | 3.0 | 600V AC/250V DC | 30A | 3 | 12 AWG to 8 AWG | Silver | 2 AWG | 8 AWG | €627.25 |
