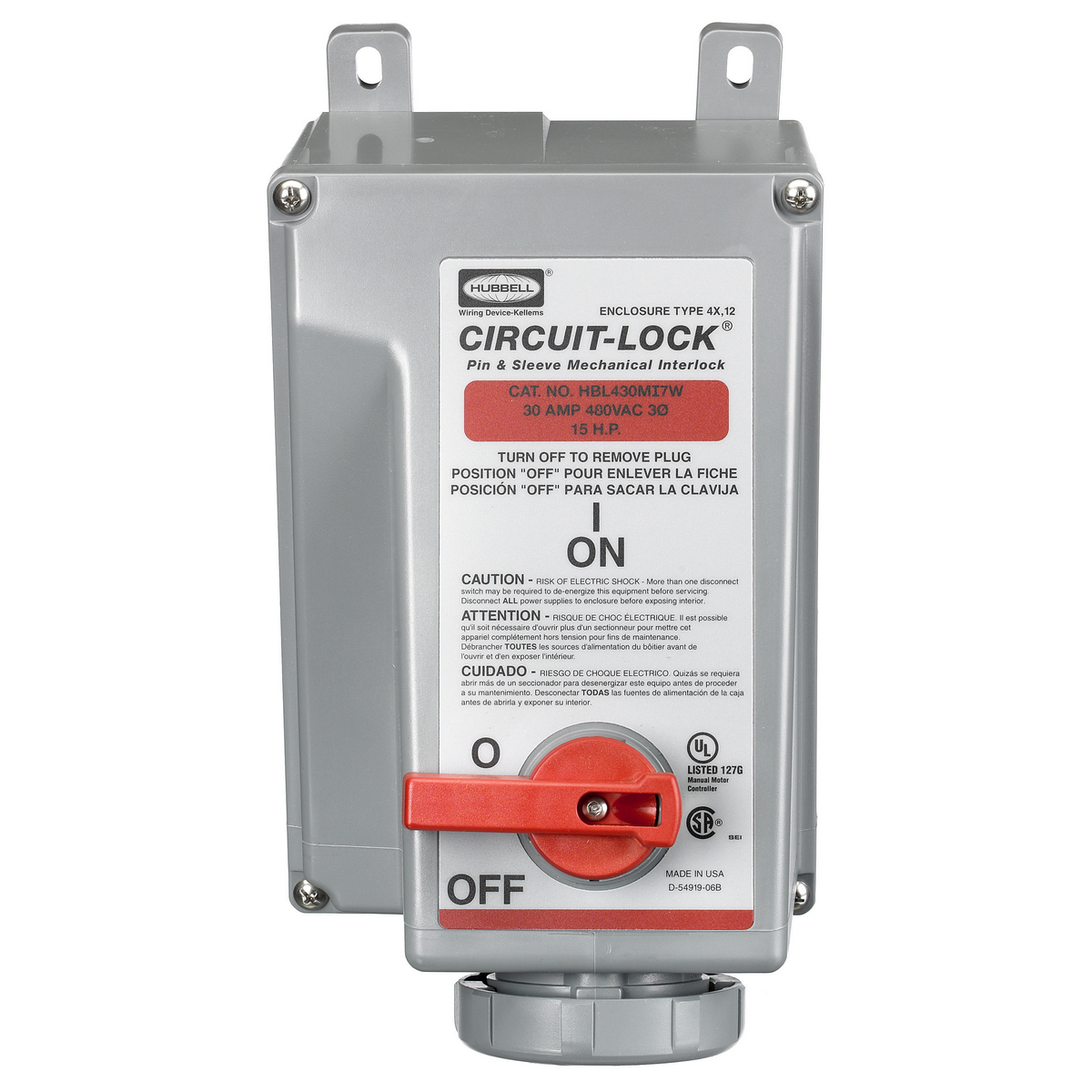

HUBBELL WIRING DEVICE-KELLEMS HBL430MI7W Mechanically Interlocked Receptacle, 3 Pole, 480 VAC, 30 A
Item: AE7ZGHModel: HBL430MI7WCross Ref: 6C573
7 In Stock
Ships within 2 days via
10.00% off
€1,780.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit-lock Watertight Mechanical Interlock Device |
| Accepts Plug Number | 5Z941 |
| Amps | 30A |
| Circuit Breaker | No |
| Circuit Breaker Amp Rating | 30A |
| Color | Red |
| Compatible Plug Grainger Part Number | 5Z941 |
| Compatible Plug Manufacturer Part Number | 5Z941 |
| Current Rating | 30A |
| Electrical Connection Type | Pin And Sleeve |
| Exposure Conditions | Wateright |
| For Location | Indoor/Outdoor |
| Fuse Protection | Non-Fused |
| Grounding | Grounded |
| Horsepower Rating | 15 hp |
| Housing Color | Red |
| Housing Material | Thermoplastic |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP67 |
| Locking Handle | Yes |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 12 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | Not Rated |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Overall Height | 10.12" |
| Overall Width | 7 3/4" |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl430mi7w.pdf |
| Resistance Properties | Watertight |
| Reverse Service | No |
| Type | Pin And Sleeve, Unfused |
| Ul 94 Flammability Rating | V-0, 5 VA |
| Use With | 5Z941 |
| Viewing Window | No |
| Voltage Rating | 480V AC |
| Wattage | 14400 W |
| Wattage | 14400 |
| Wire Size | 12 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 2.79 |
| Ship height (cm) | 25.7 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 19.69 |
| HS code | 8537109050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Color | Current Rating | Hp | Amps | Wire Size | Wattage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

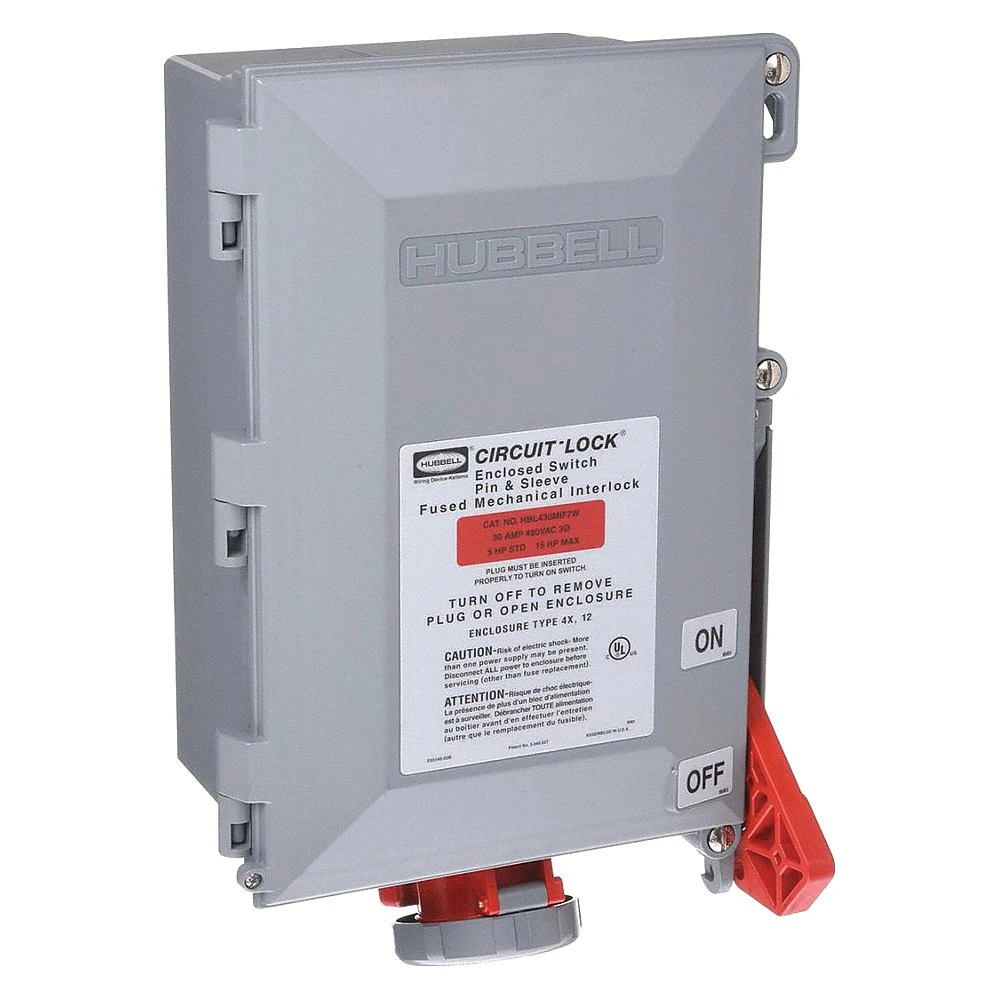

HBL430MIF7W | 3 | 4 | Red | 30A | - | 30A | 12 AWG to 8 AWG | 14400 W | €4,213.99 | |
 |

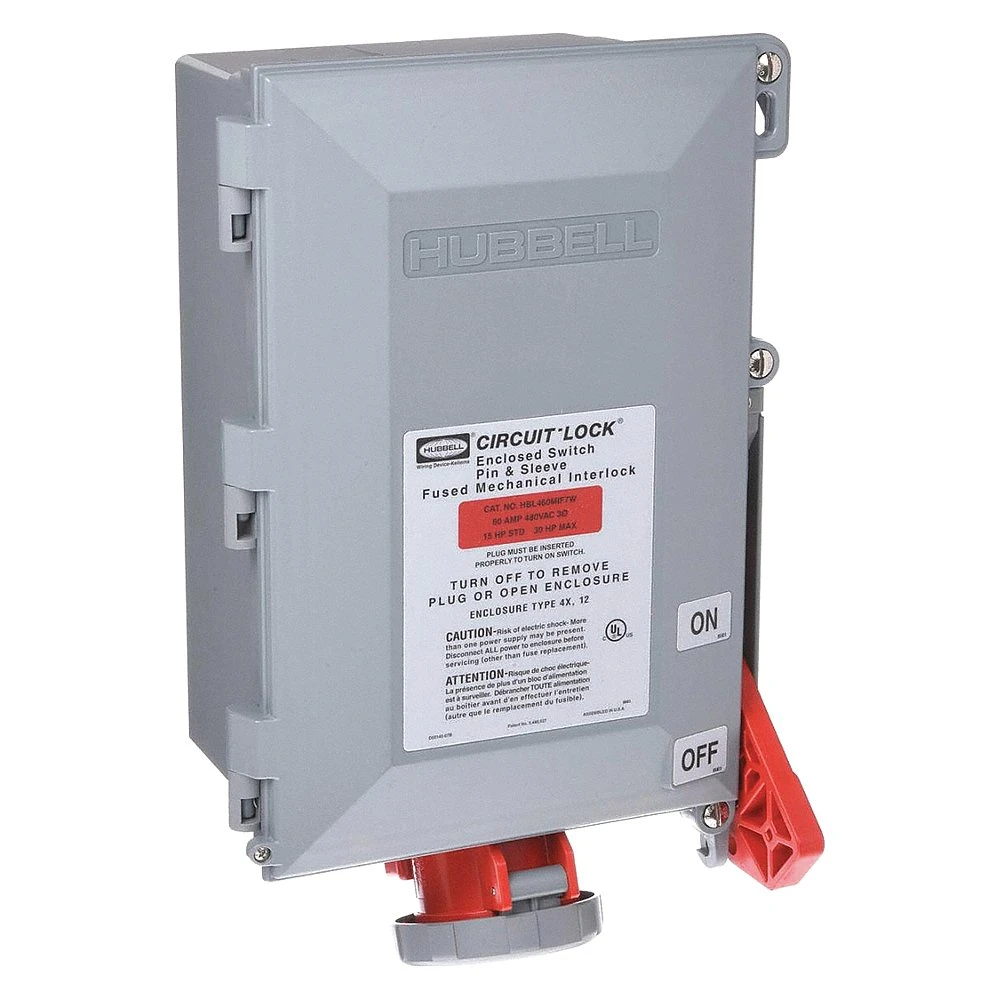

HBL460MIF7W | 3 | 4 | Red | - | 30 hp | 60A | 8 AWG to 2 AWG | 28800 W | €3,860.05 | |
 |

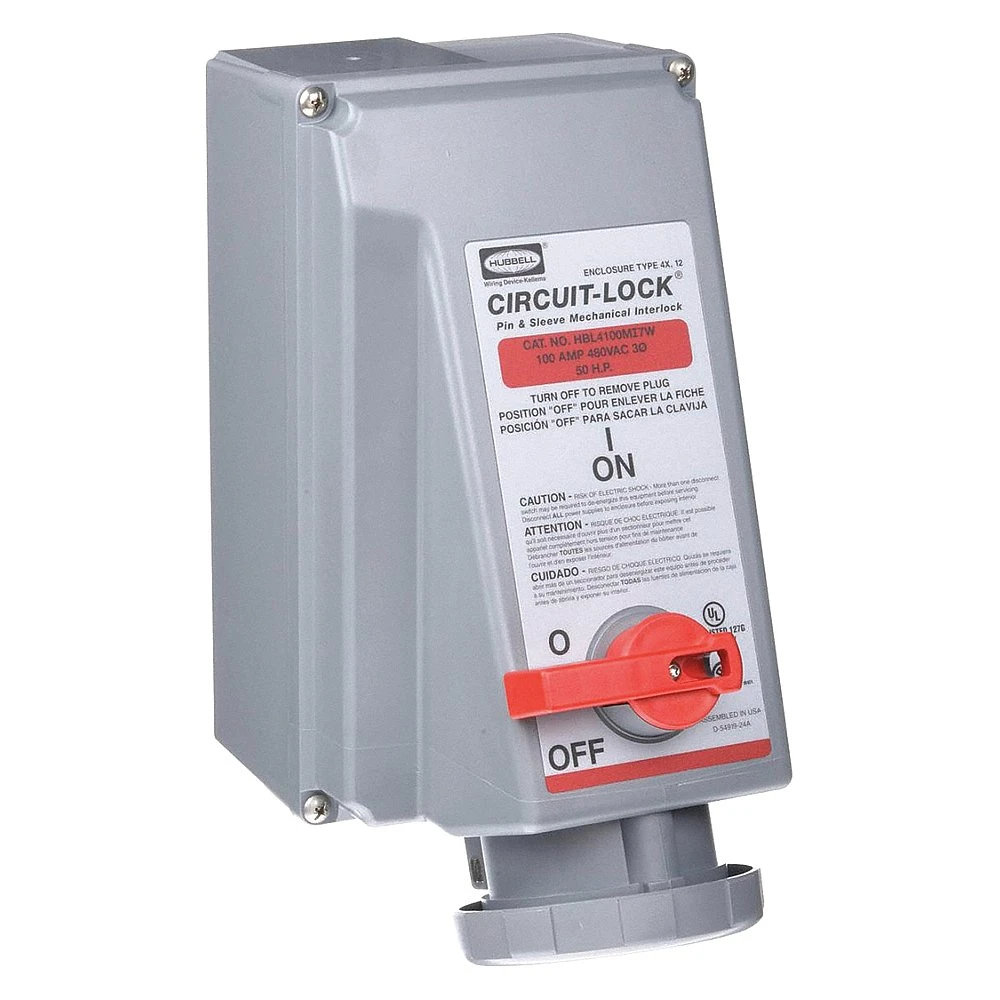

HBL4100MI7W | 3 | 4 | Red | 100A | 50 hp | 100A | #3 AWG to #1/0 AWG | 48000 W | €3,389.17 | |
 |

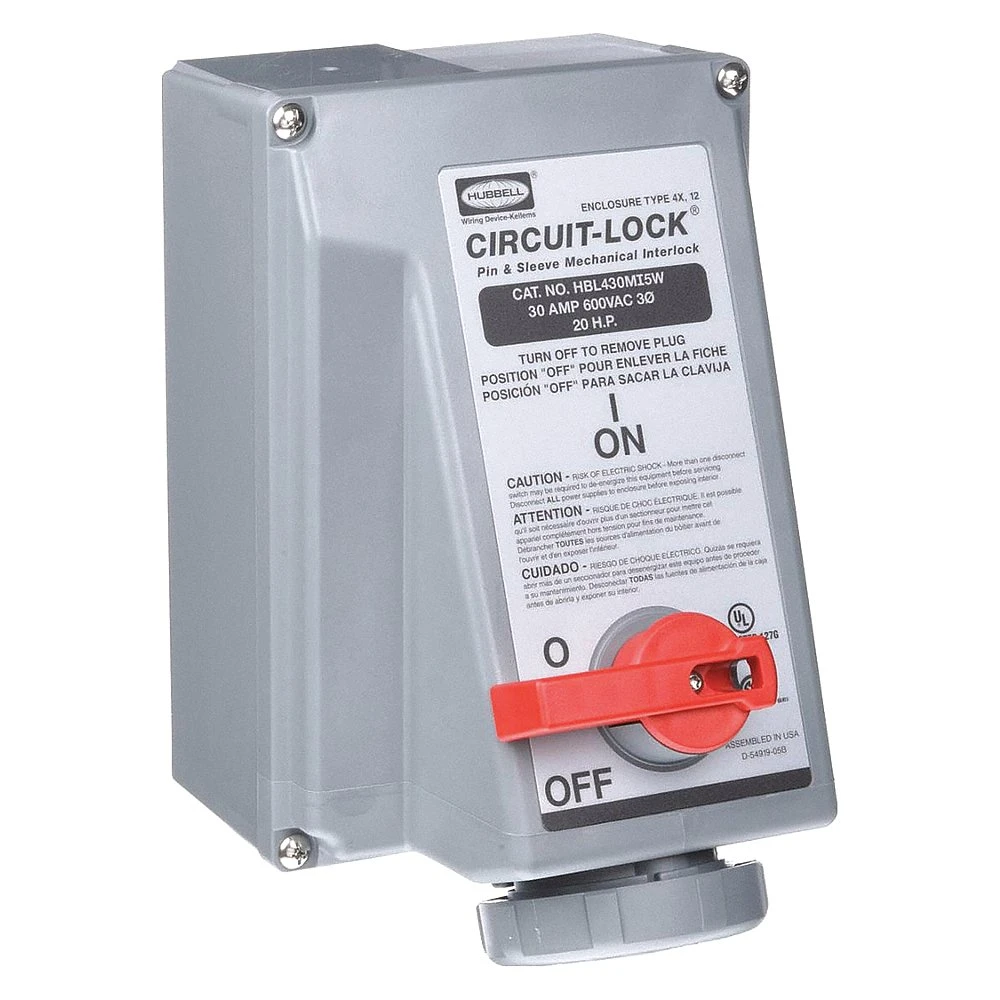

HBL430MI5W | 3 | 4 | Black | 30A | - | 30A | 12 AWG to 8 AWG | 18000 W | €2,113.02 | |
 |
HBL430MI9W | 3 | 4 | Blue | 30A | 7 1/2 hp | 30A | 12 AWG to 8 AWG | 7500 W | €1,947.36 | |
 |
HBL460MI7W | 3 | 4 | Red | 60A | 30 hp | 60A | 8 AWG to 2 AWG | 28800 W | €2,923.03 | |
 |
HBL560MI5W | 4 | 5 | Black | - | 40 hp | 60A | 8 AWG to 2 AWG | 36000 W | €2,840.27 |
