HUBBELL WIRING DEVICE-KELLEMS Circuit-Lock Watertight Mechanical Interlock Devices
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Number Of Poles | Number Of Wires | Color | Current Rating | Hp | Amps | Wire Size | Wattage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBL4100MI7W | 3 | 4 | Red | 100A | 50 hp | 100A | #3 AWG to #1/0 AWG | 48000 W | €3,389.17 | |
| B | HBL430MI9W | 3 | 4 | Blue | 30A | 7 1/2 hp | 30A | 12 AWG to 8 AWG | 7500 W | €1,947.36 | |
| C | HBL430MI5W | 3 | 4 | Black | 30A | - | 30A | 12 AWG to 8 AWG | 18000 W | €2,113.02 | |
| D | HBL460MI7W | 3 | 4 | Red | 60A | 30 hp | 60A | 8 AWG to 2 AWG | 28800 W | €2,923.03 | |
| E | HBL430MIF7W | 3 | 4 | Red | 30A | - | 30A | 12 AWG to 8 AWG | 14400 W | €4,213.99 | |

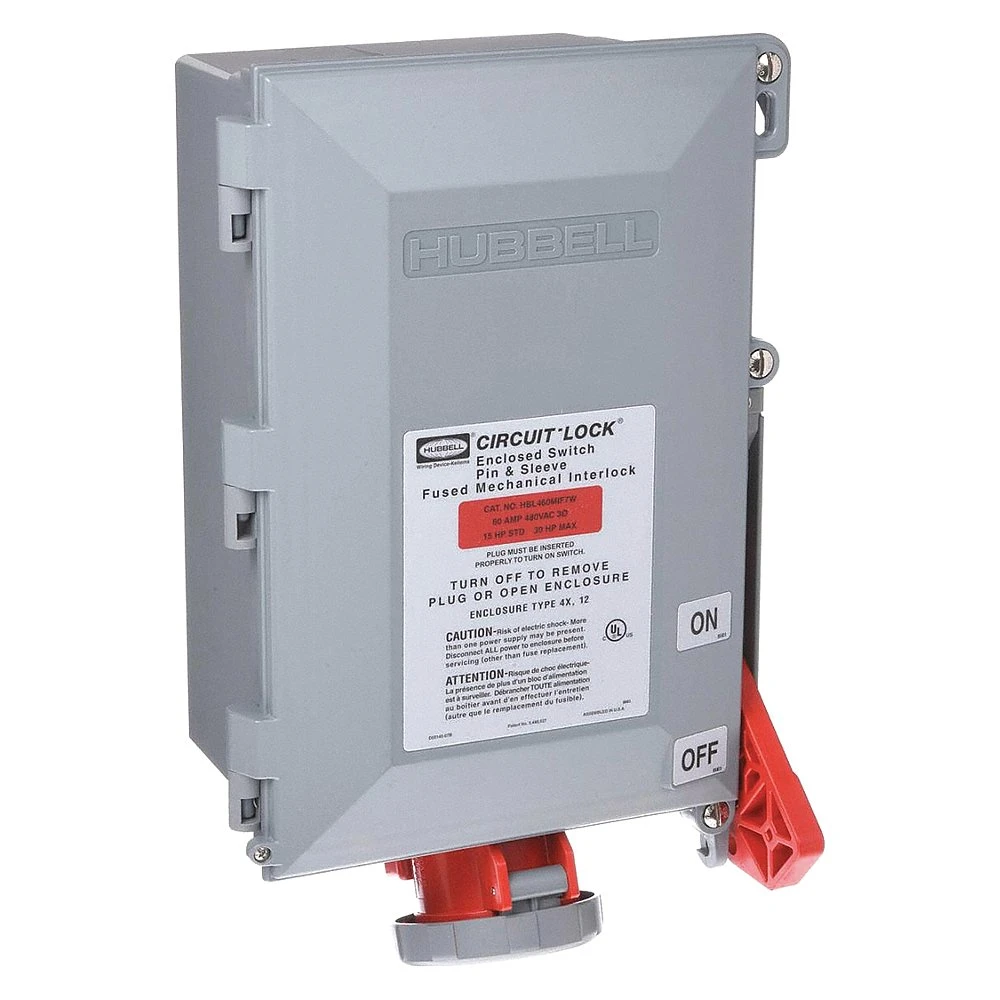

| F | HBL460MIF7W | 3 | 4 | Red | - | 30 hp | 60A | 8 AWG to 2 AWG | 28800 W | €3,860.05 | |
| G | HBL430MI7W | 3 | 4 | Red | 30A | - | 30A | 12 AWG to 8 AWG | 14400 W | €1,978.86 | |
| H | HBL560MI5W | 4 | 5 | Black | - | 40 hp | 60A | 8 AWG to 2 AWG | 36000 W | €2,840.27 | |
| I | HBL560MI9W | 4 | 5 | Blue | 60A | - | 60A | 8 AWG to 2 AWG | 12480 W | €3,315.82 |
Circuit-Lock Watertight Mechanical Interlock Devices
Hubbell Wiring Device-Kellems Circuit-Lock watertight mechanical interlock devices are electrical receptacles to minimise circuit making or breaking under loading conditions, or making a haphazard connection. These interlocking devices feature a Plug-Check mechanism for detecting the presence of plugs, and spring loaded covers integrated with a gasket to provide a watertight seal when turned & locked. They come with a removable door for easy installation & wiring, and deliver current ratings ranging from 30 to 100A. Choose from a wide range of these mechanical interlock devices, available in 3 & 4 pole configurations. Raptor Supplies also offers mechanically interlocked receptacleshaving large gears, enclosed in a gearbox.
