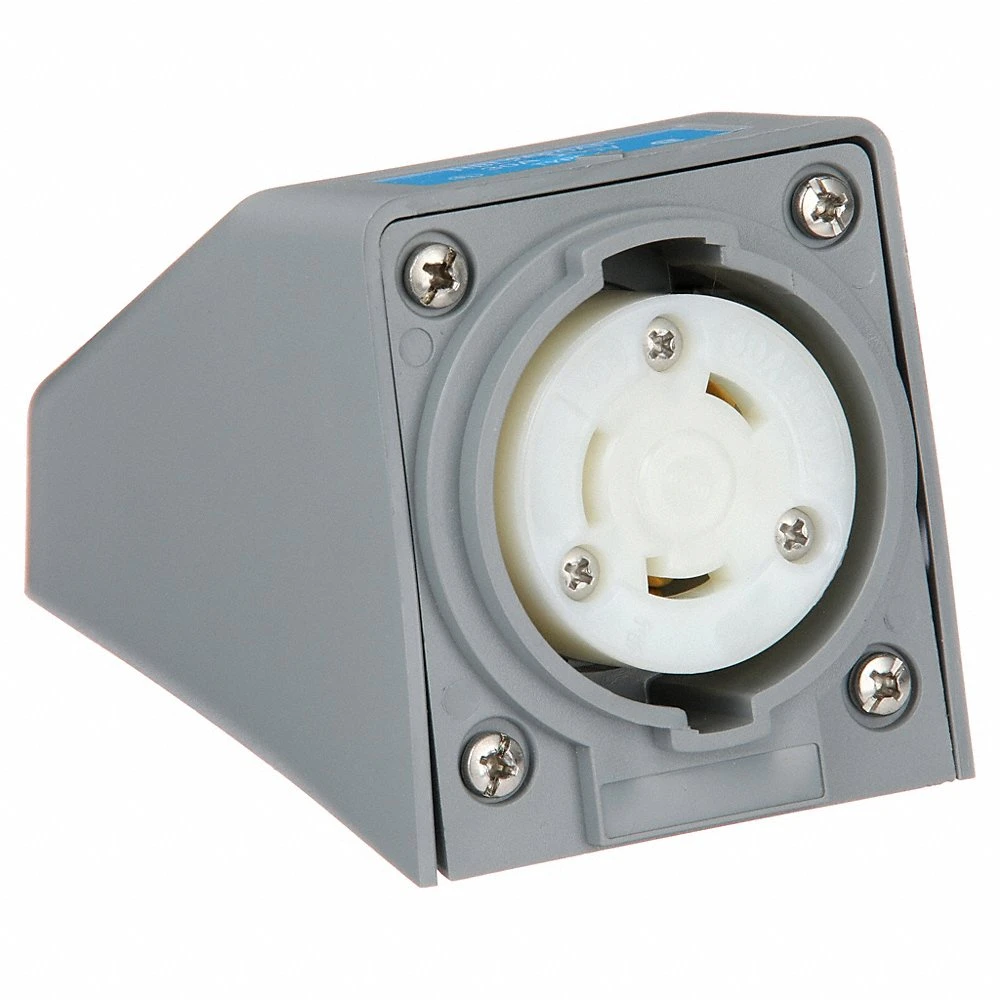

HUBBELL WIRING DEVICE-KELLEMS HBL2620AR Receptacle, 30A, 250VAC, 2 Pole, 3 Wire Grounding
Item: AD6ZRTModel: HBL2620ARCross Ref: 4CV24
7 In Stock
Ships within 2 days via
5.00% off
€107.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Angled Shrouded Receptacle |
| Afci | No |
| Amps | 30A |
| Color | White, Gray |
| Connectivity | Back Wired Screw Terminals |
| Contact Material | Brass |
| Cover Type | No Cover |
| Dielectric Strength | Withstands 2,000V minimum |
| Flange Shape | Rectangular |
| Flange Type | Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 3.14" |
| Housing Color | White, Gray |
| Housing Material | Valox |
| Hp | 2 hp |
| Ip Rating | IP20 |
| Length | 4.77" |
| Market | Industrial |
| Material | Impact Modified Pbt |
| Max. Hp | 2 hp |
| Max. Operating Temp. | 167°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA L6-30R |
| Nema Receptacle Configuration | L6-30R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2620ar.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| Shrouded | Yes |
| Type | Shrouded |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V AC |
| Wattage | 7500 W |
| Watts | 7500 W |
| Width | 2.85" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 7.98 |
| Ship length (cm) | 12.12 |
| Ship width (cm) | 7.24 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Phase | Amps | Height | Watts | Material | Voltage | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2310AR | 2 | 1 | 20A | 2.85" | 2500 W | Impact Modified Pbt | 125V AC | Gray | €70.70 | |
 |
HBL2320AR | 2 | 1 | 20A | 3.14" | 5000 W | Thermoplastic | 250V AC | Gray | €58.64 | |
 |
HBL2420AR | 3 | 3 | 20A | 3.14" | 5000 W | Thermoplastic | 250V AC | Gray | €101.80 | |
 |
HBL2430AR | 3 | 3 | 20A | 3.14" | 9600 W | Thermoplastic | 480V AC | Gray | €103.78 | |
 |
HBL2510AR | 4 | 3 | 20A | 3.14" | 4160 W | Impact Modified Pbt | 120/208V AC | Gray | €110.71 | |
 |

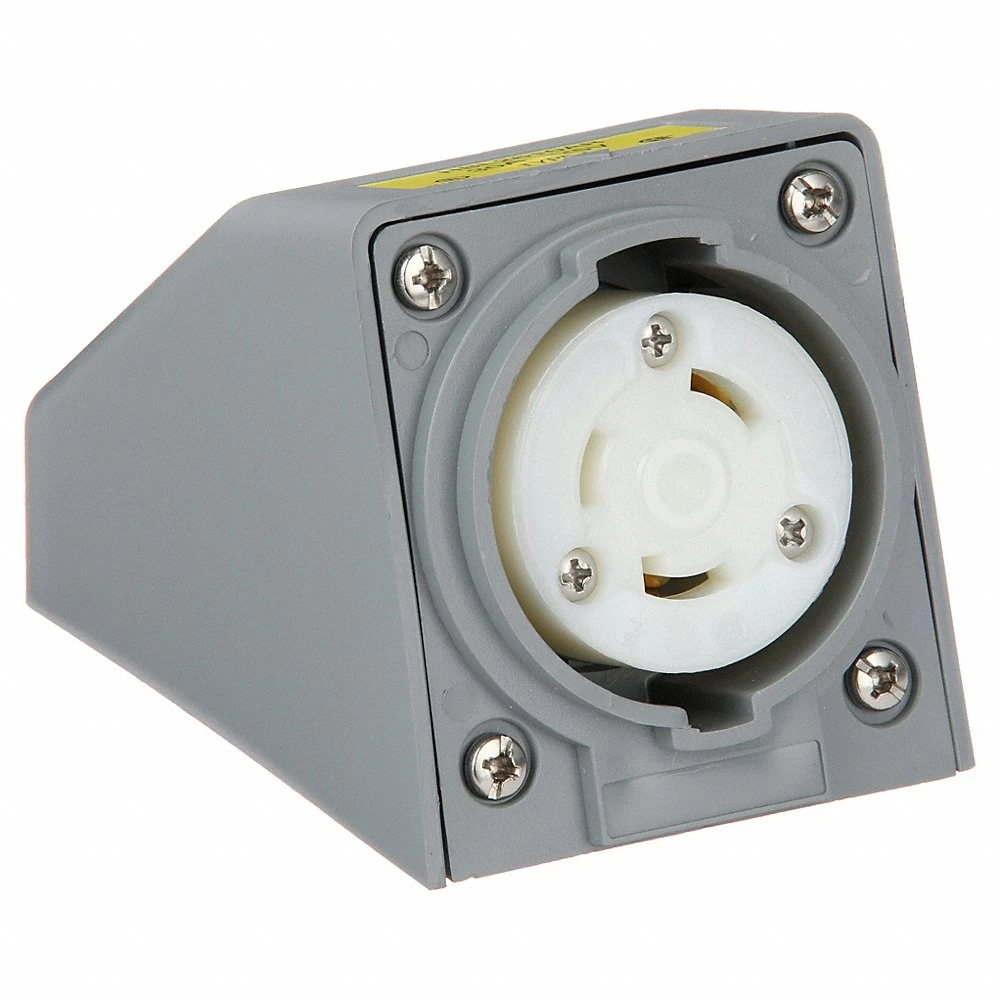

HBL2610AR | 2 | 1 | 30A | 3.14" | 3750 W | Impact Modified Pbt | 125V AC | Gray | €104.05 | |
 |

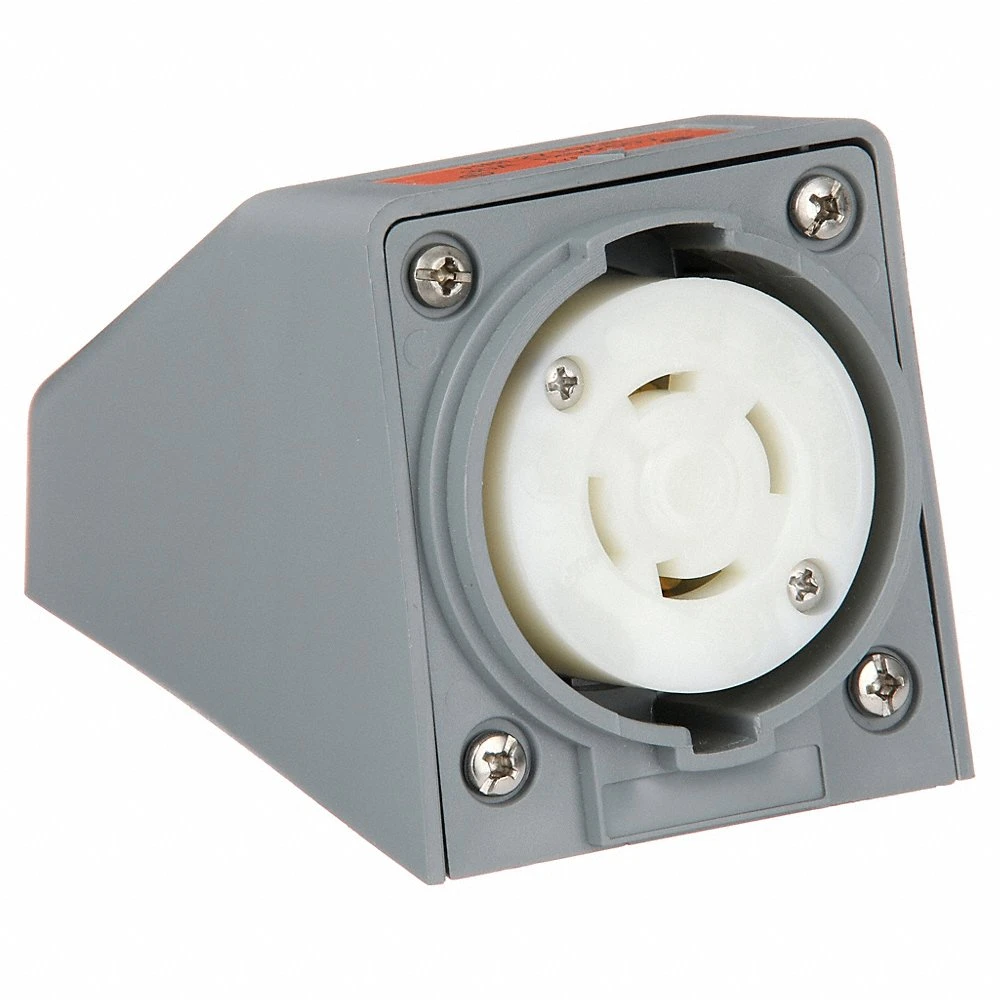

HBL2710AR | 3 | 1 | 30A | 3.14" | 7500 W | Impact Modified Pbt | 125/250V AC | Gray | €162.79 |
