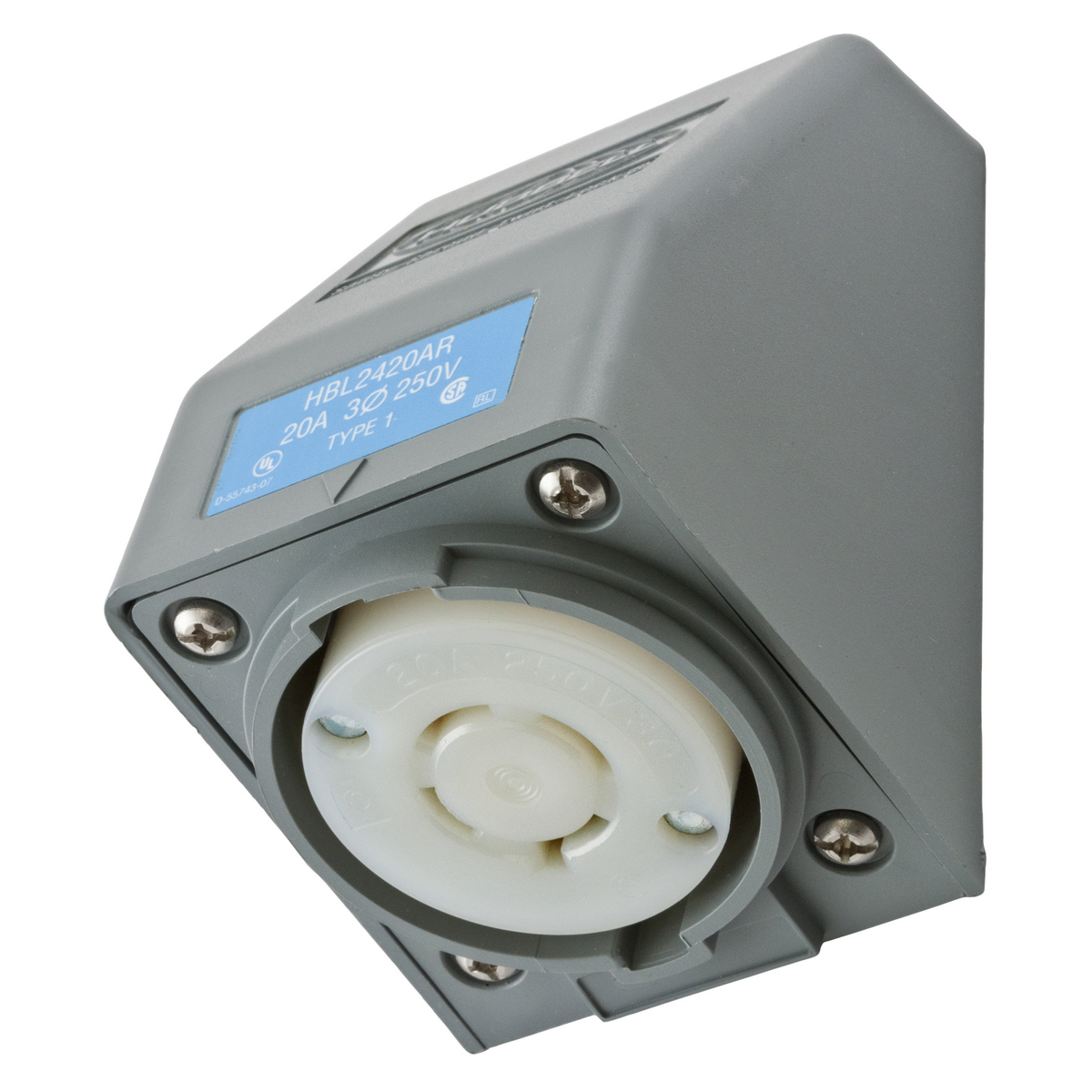

HUBBELL WIRING DEVICE-KELLEMS HBL2420AR Angled Receptacle, One Gang, 20A, 3-Phase, Delta, 250VAC, 3-Pole
Item: AD6ZHKModel: HBL2420ARCross Ref: 4CT92
7 In Stock
Ships within 2 days via
10.00% off
€91.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Angled Shrouded Receptacle |
| Afci | No |
| Amps | 20A |
| Color | Gray |
| Connectivity | Back Wired Screw Terminals |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Flange Shape | Rectangular |
| Flange Type | Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 3.14" |
| Horsepower Rating | 3 hp |
| Housing Color | Gray |
| Housing Material | Valox |
| Ip Rating | IP20 |
| Length | 4.77" |
| Market | Industrial |
| Material | Thermoplastic |
| Max. Hp | 3 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA L15-20R |
| Nema Receptacle Configuration | L15-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2420ar.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| Shrouded | Yes |
| Type | Shrouded |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V AC |
| Voltage Rating | 250V AC |
| Wattage | 5000 W |
| Width | 2.85" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 7.98 |
| Ship length (cm) | 12.12 |
| Ship width (cm) | 7.24 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Current Rating | Voltage Rating | Number Of Wires | Housing Color | Height | Wattage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2310AR | 1 | 2 | 20A | 125V AC | 3 | Gray | 2.85" | 2500 W | €70.70 | |
 |
HBL2320AR | 1 | 2 | 20A | 250V AC | 3 | Gray | 3.14" | 5000 W | €59.51 | |
 |
HBL2430AR | 3 | 3 | 20A | 480V AC | 4 | Gray | 3.14" | 9600 W | €103.78 | |
 |
HBL2510AR | 3 | 4 | 20A | 120/208V AC | 5 | Gray | 3.14" | 4160 W | €110.71 | |
 |
HBL2610AR | 1 | 2 | 30A | 125V AC | 3 | Gray | 3.14" | 3750 W | €104.05 | |
 |
HBL2620AR | 1 | 2 | 30A | 250V AC | 3 | Gray, White | 3.14" | 7500 W | €113.66 | |
 |
HBL2710AR | 1 | 3 | 30A | 125/250V AC | 4 | Gray | 3.14" | 7500 W | €162.79 |
