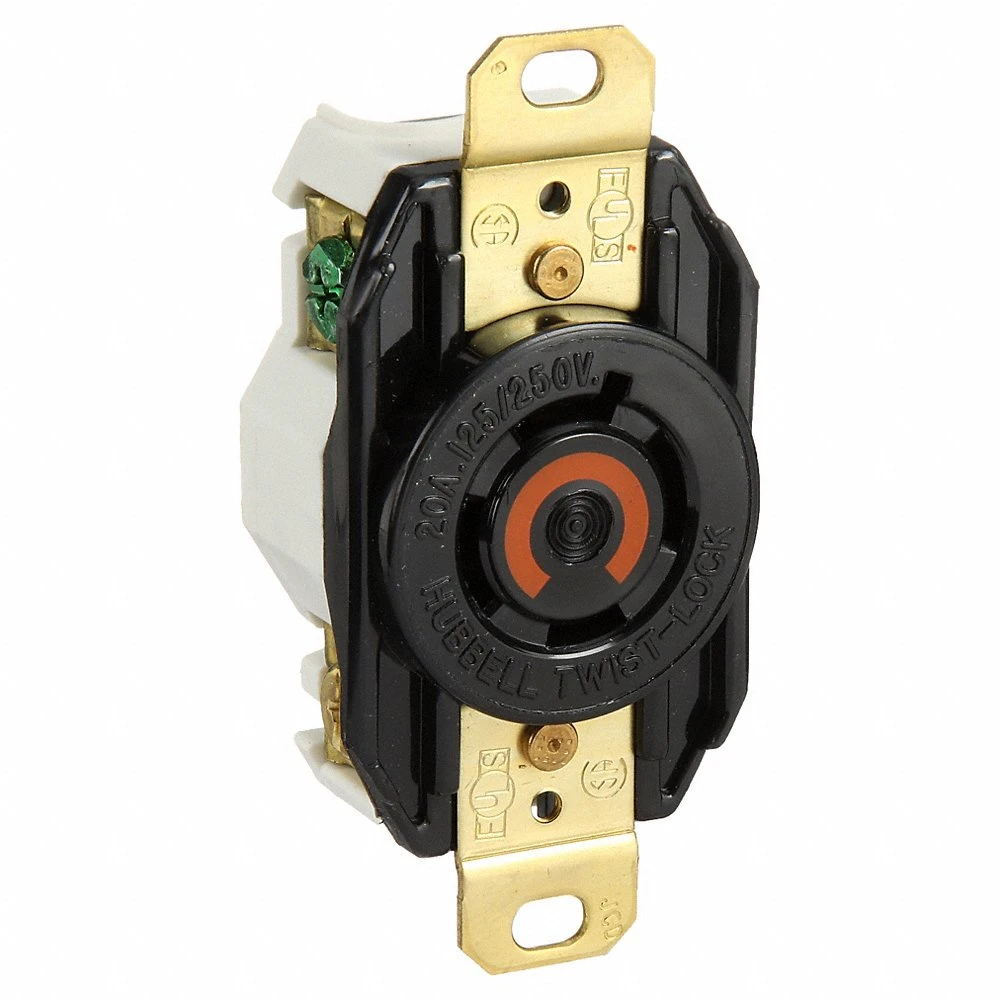

HUBBELL WIRING DEVICE-KELLEMS HBL2410 Single Flush Receptacle, 20A, 125/250V, 3-Pole, 4-Wire Grounding
Item: AD6RPDModel: HBL2410Cross Ref: 4A264
7 In Stock
Ships within 2 days via
10.00% off
€76.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Color | Black |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Flange Type | Non Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 1.23" |
| Horsepower Rating | 2 hp |
| Housing Color | Black |
| Housing Material | Nylon |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Market | Industrial |
| Material | Nylon |
| Max. Hp | 2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA L14-20R |
| Nema Receptacle Configuration | L14-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2410.pdf |
| Resistance Properties | Corrosion Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 125/250V AC |
| Wattage | 5000 W |
| Width | 1.7" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.12 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.32 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Phase | Current Rating | Voltage Rating | Ip Rating | Resistance Properties | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2330 | 2 | 3 | 1 | 20A | 277V AC | IP20 | Corrosion Resistant | Nylon | €70.70 | |
 |
HBL2510 | 4 | 5 | 3 | 20A | 120/208V AC | IP20 | Corrosion Resistant | Nylon | €115.90 | |
 |
HBL2810 | 4 | 5 | 3 | 30A | 120/208V AC | IP20 | Corrosion Resistant | Nylon | €165.66 | |
 |
HBL2350 | 2 | 3 | 1 | 20A | 600V AC | IP20 | Corrosion Resistant | Nylon | €84.16 | |
 |
HBL2440 | 4 | 4 | 3 | 20A | 120/208V AC | IP30 | Corrosion Resistant | Nylon | €101.32 | |
 |
HBL2740 | 3 | 4 | 3 | - | - | - | - | Nylon | €133.52 | |
 |
HBL2750 | 4 | 4 | 3 | 30A | 120/208V AC | IP20 | Corrosion Resistant | Thermoplastic | €158.00 |
