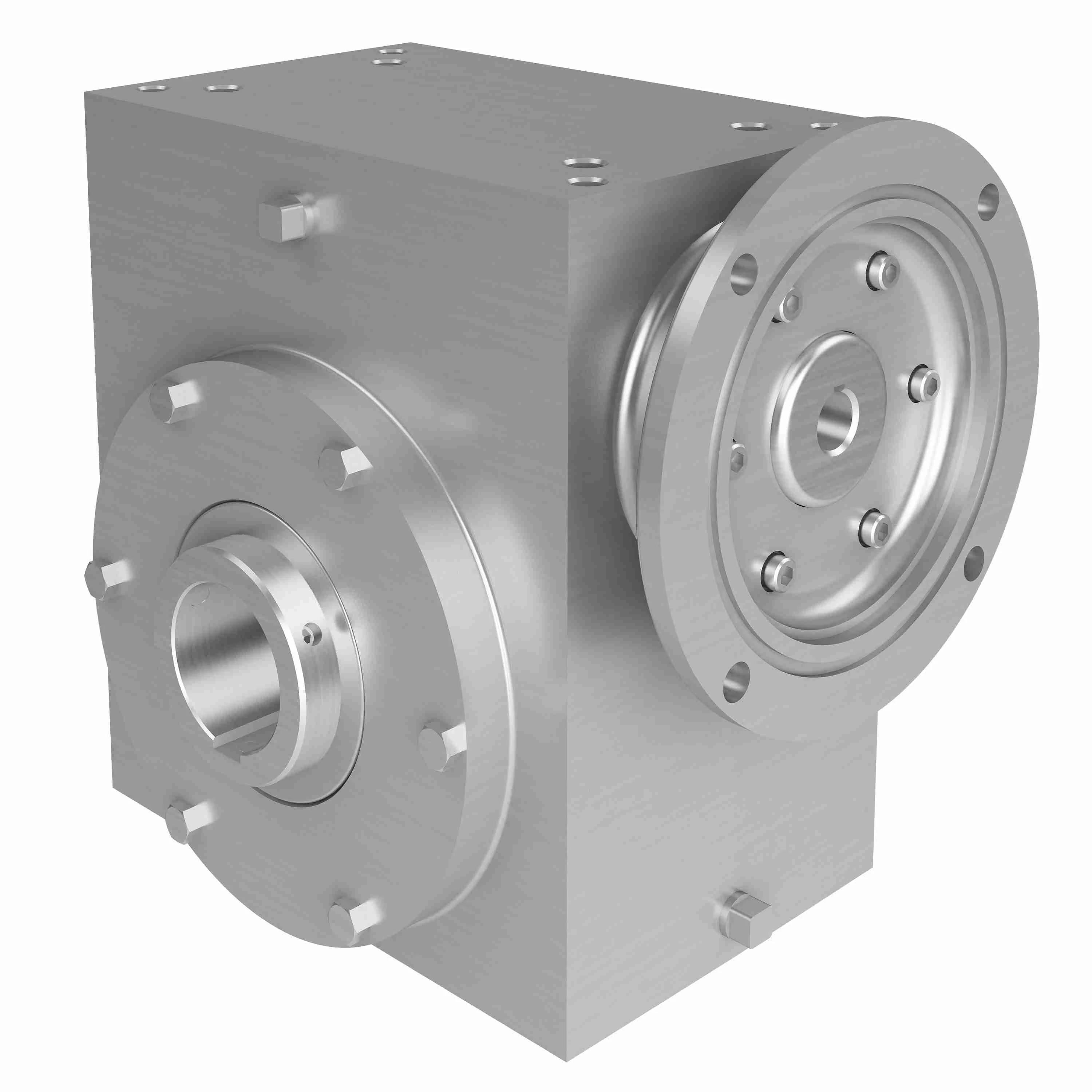

HUB CITY 0270-09354 Worm Reducer, 11.922 Hp, 1.688 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Dia. | 5/8" |
| Input Hp | 11 461/500 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 56C |
| Mounting Style | A |
| Output | 350 RPM |
| Output Dia. | 1.688" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 2033 lbs.-in. |
| Ratio | 5:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | A |
Shipping Info:
| Ship weight (kg) | 35.55 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 38.1 |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Torque | Output Speed | Max. Input Hp | Input Style | Output Shaft Direction | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-09458 | 1.438" | 7/8" | 2500 lbs.-in. to 5000 lbs.-in. | 35 RPM | 2.462 hp | C Face Quill | Left Or Right | A | €4,968.82 | |
 |
0270-09576 | 1 1/4" | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 58.3 RPM | 3.619 hp | C Face Quill | Left Or Right | A | €5,021.79 | |
 |
0270-09589 | 1.438" | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 43.75 RPM | 2.926 hp | C Face Quill | Left Or Right | A | €5,021.79 | |
 |
0270-09664 | 1.938" | 1 1/8" | 1000 lbs.-in. to 2500 lbs.-in. | 21.9 RPM | 1.03 hp | C Face Quill | Left Or Right | A | €5,021.79 | |
 |
0270-09680 | 2.188" | 1 1/8" | - | - | - | C Face Quill | Left, Right | A | - | RFQ
|
 |
0270-09869 | 1 1/2" | 5/8" | 1000 lbs.-in. to 2500 lbs.-in. | 17.5 RPM | 0.691 hp | C Face Quill | Left Or Right | B | €4,968.82 | |
 |
0270-10122 | 1 1/2" | 1 1/8" | - | - | - | C Face Quill | Left, Right | B | - | RFQ
|
