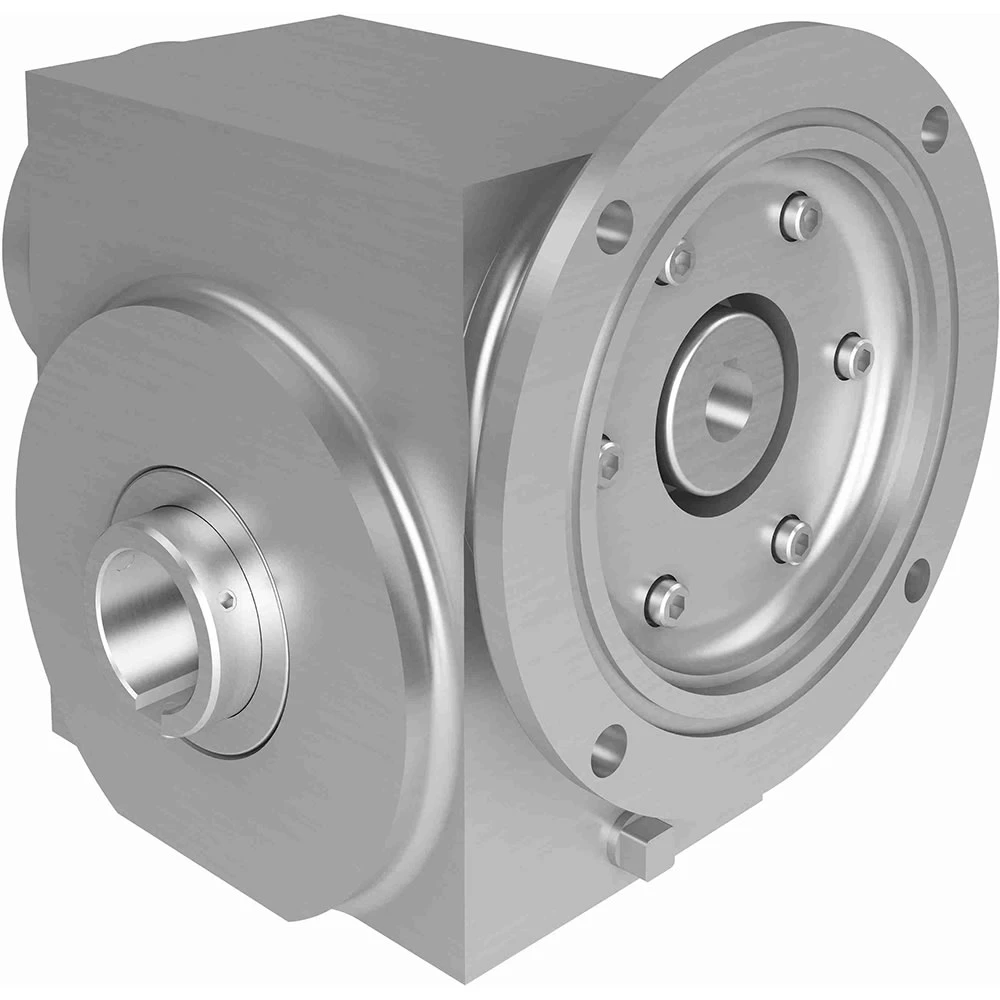

HUB CITY 0270-08957 Worm Reducer, 0.967 Hp, 1.188 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Friday, Aug 28
€3,074.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Dia. | 5/8" |
| Input Hp | 0.967 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 56C |
| Mounting Style | B |
| Output | 29.2 RPM |
| Output Dia. | 1.188" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Output Torque Rating | 1418 lbs.-in. |
| Product Datasheet | hub-city-0270-07776.pdf |
| Ratio | 60:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | B |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Documentation:
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Torque | Output Speed | Max. Input Hp | Input Style | Style | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-08956 | 1.188" | 5/8" | 1000 lbs.-in. to 2500 lbs.-in. | - | - | C Face Quill | B | 50:1 | €3,074.36 | |
 |
0270-08962 | 1 1/4" | 5/8" | - | - | - | C Face Quill | B | 10:1 | - | RFQ
|
 |
0270-08806 | 1.188" | 7/8" | 1000 lbs.-in. to 2500 lbs.-in. | 175 RPM | 3.564 hp | C Face Quill | A | 10:1 | - | RFQ
|
 |
0270-08839 | 1.438" | 7/8" | - | - | - | C Face Quill | A | 100:1 | - | RFQ
|
|
0270-08804 | 1.188" | 7/8" | - | - | - | C Face Quill | A | 5:1 | - | RFQ
|
 |
0270-08816 | 1 1/4" | 7/8" | 500 lbs.-in. to 1000 lbs.-in. | 350 RPM | 5.323 hp | C Face Quill | A | 5:1 | €3,074.36 | |
 |
0270-08935 | 1" | 5/8" | 500 lbs.-in. to 1000 lbs.-in. | 17.5 RPM | - | Quill | B | 100:01:00 | - | RFQ
|
