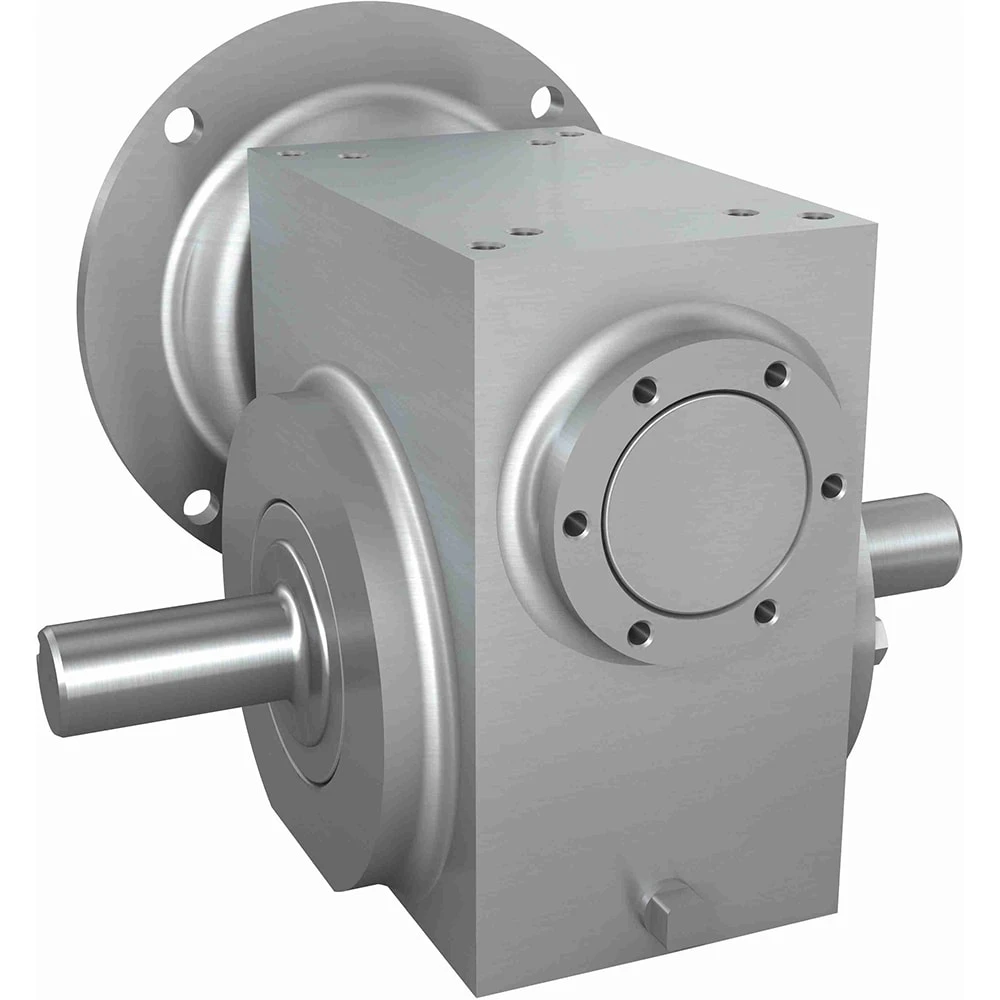

HUB CITY 0270-08095 Worm Reducer, 0.674 Hp, 1.000 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Friday, Aug 28
€1,856.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.06" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp | 1/2 hp to 1 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 0.674 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Speed | 29.2 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Overhung Load | 550 |
| Product Datasheet | hub-city-0270-07217.pdf |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 60:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 940 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Documentation:
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Speed | Output Torque | Max. Input Hp | Input Style | Output Shaft Direction | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-08115 | 1" | 5/8" | 70 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1.333 hp | C Face Quill | Right | C | €1,856.46 | |
 |
0270-08119 | 1" | 5/8" | 29.2 RPM | 500 lbs.-in. to 1000 lbs.-in. | 0.674 hp | C Face Quill | Right | C | €1,856.46 | |
 |
0270-08100 | 1" | 5/8" | 175 RPM | 500 lbs.-in. to 1000 lbs.-in. | 2.464 hp | C Face Quill | Left | B | €1,856.46 | |
 |
0270-08101 | 1" | 5/8" | 116.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1.887 hp | C Face Quill | Left | B | €1,856.46 | |
 |
0270-08105 | 1" | 5/8" | 43.75 RPM | 500 lbs.-in. to 1000 lbs.-in. | 0.916 hp | C Face Quill | Left | B | €1,856.46 | |
 |
0270-08106 | 1" | 5/8" | 35 RPM | 500 lbs.-in. to 1000 lbs.-in. | 0.769 hp | C Face Quill | Left | B | €1,856.46 | |
 |
0270-08107 | 1" | 5/8" | 29.2 RPM | 500 lbs.-in. to 1000 lbs.-in. | 0.674 hp | C Face Quill | Left | B | €1,856.46 |
