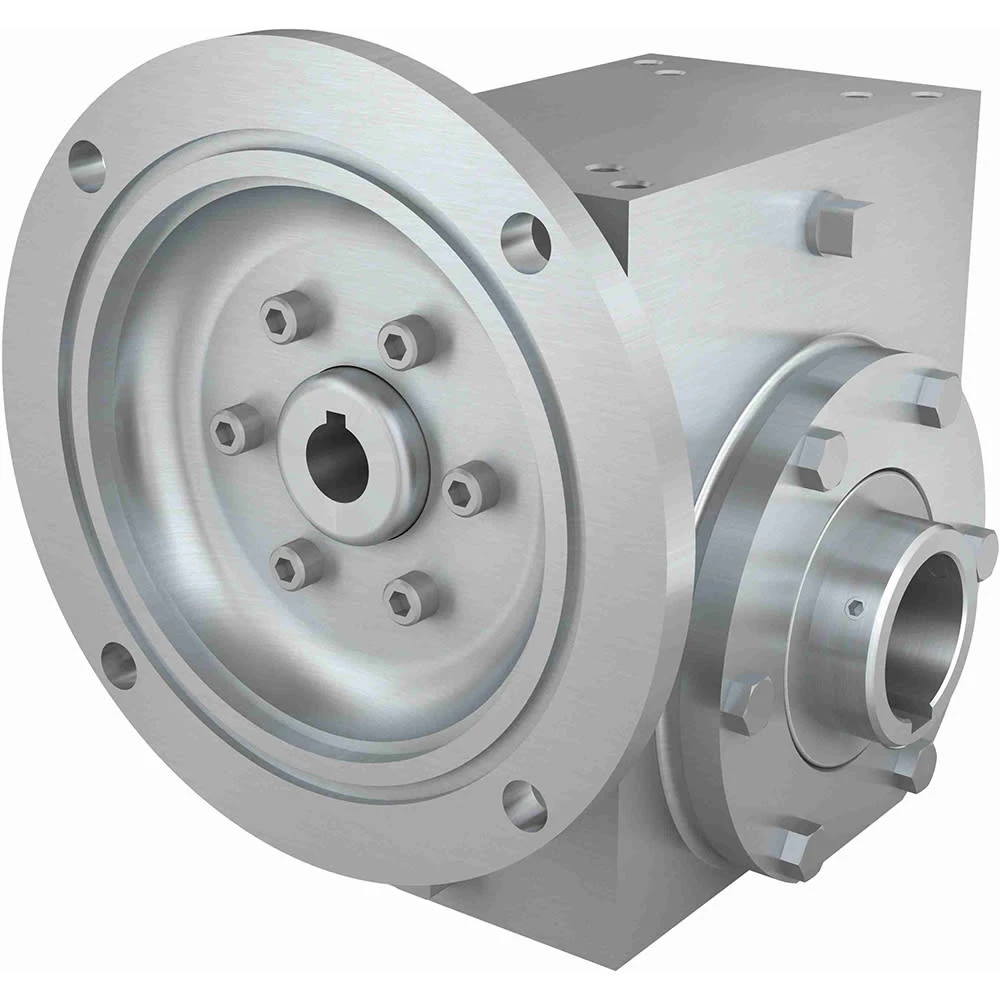

HUB CITY 0270-08488 Worm Reducer, 1.129 Hp, 1.250 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Tuesday, Dec 23
€2,550.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.06" |
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 1.129 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Rpm | 58.3 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Product Datasheet | hub-city-0270-07776.pdf |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 30:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 968 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Documentation:
Product Variants
| Product | Model | Max. Input Hp | Frame Size | Gear Type | Overhung Load | Housing Material | Output Type | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-08115 | 1.333 hp | 56C | Worm Right Angle | 550 | Stainless Steel | - | - | €1,856.46 | |
 |
0270-08119 | 0.674 hp | 56C | Worm Right Angle | 550 | Stainless Steel | - | - | €1,856.46 | |
 |
0270-08100 | 2.464 hp | 56C | Worm Right Angle | 550 | Stainless Steel | - | - | €1,856.46 | |
 |
0270-08101 | 1.887 hp | 56C | Worm Right Angle | 550 | Stainless Steel | - | - | €1,856.46 | |
 |
0270-08105 | 0.916 hp | 56C | Worm Right Angle | 550 | Stainless Steel | - | - | €1,856.46 | |
 |
0270-08106 | 0.769 hp | 56C | Worm Right Angle | 550 | Stainless Steel | - | - | €1,856.46 | |
 |
0270-08107 | 0.674 hp | 56C | Worm Right Angle | 550 | Stainless Steel | - | - | €1,856.46 |
