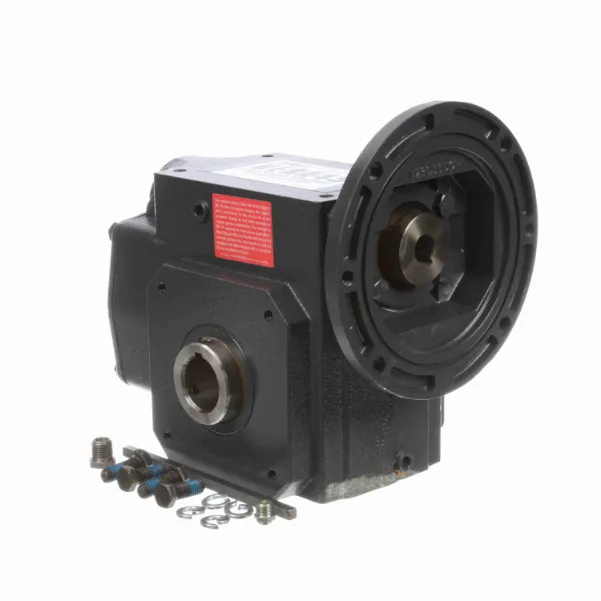

HUB CITY 0250-54079 Helical Hypoid Reducer, 1.53 HP, 0.876 Inch I.D, ES Mounting Type, Cast Iron
Get it by Tuesday, Aug 25
€1,788.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3.263" |
| Frame Size | 140TC |
| Gear Drive Size | HERA45 |
| Housing Height | 6.938" |
| Housing Length | 8" |
| Housing Material | Cast Iron |
| Housing Width | 6 1/4" |
| Hp | 1 hp to 1 1/2 hp |
| Input Dia. | 0.876" |
| Input Hp | 1 53/100 hp |
| Input Hp @ 1750 Rpm | 1.53 hp |
| Input Style | C Face Quill |
| Length Through Bore | 6 1/4" |
| Max. Input Hp | 1.53 hp |
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 50:1 |
| Output Dia. | 1 1/4" |
| Output Shaft | Hollow Bore |
| Output Speed | 33.3 RPM |
| Output Torque | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Datasheet | hub-city-0250-60911.pdf |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 52.5:1 |
| Service Factor | 1 |
| Style | ES |
| Torque | 2600 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
Documentation:
Product Variants
| Product | Model | Output Dia. | Output Torque | Input Dia. | Output Speed | Max. Input Hp | Input Style | Ratio | Input Hp @ 1750 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

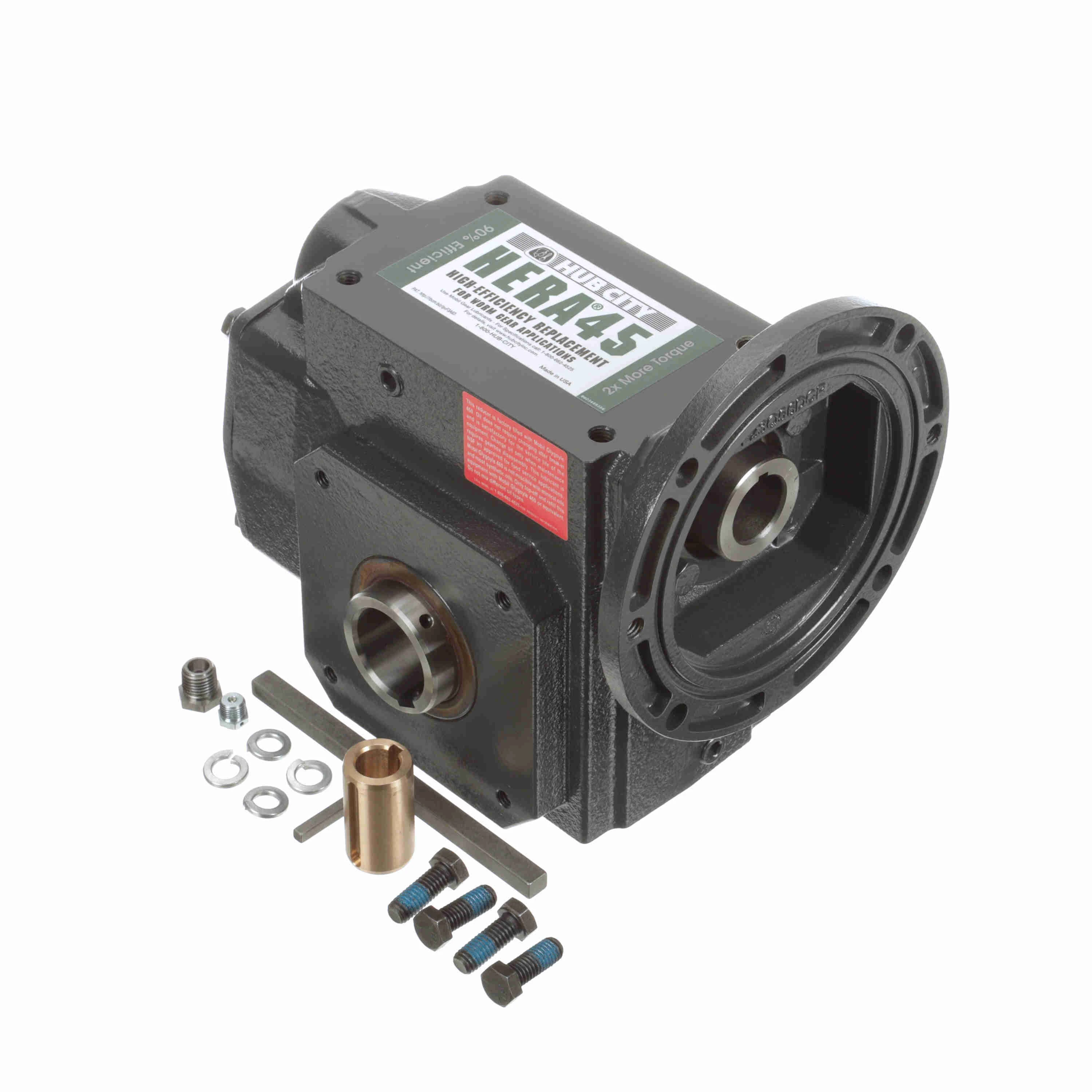

0250-54037 | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 62.5 RPM | 2 43/50 hp | C Face Quill | 28.01:1 | 2 43/50 hp | €1,624.14 | |
 |
0250-54052 | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | - | - | C Face Quill | 19.51 | - | €1,788.13 | RFQ
|
 |
0250-54053 | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | - | - | C Face Quill | 28.01:1 | - | €1,788.13 | RFQ
|
 |
0250-54055 | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | - | - | C Face Quill | 52.51 | - | €1,788.13 | RFQ
|
 |
0250-54080 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 29.3 RPM | 1 17/50 hp | C Face Quill | 59.79:1 | 1 17/50 hp | €1,788.13 | |
 |
0250-54082 | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 154 RPM | 7 3/50 hp | C Face Quill | 11.36:1 | 7 3/50 hp | €1,788.13 | |
|
0250-54083 | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 112.2 RPM | 5 7/50 hp | C Face Quill | 15.6:1 | 5 7/50 hp | €1,624.14 |
