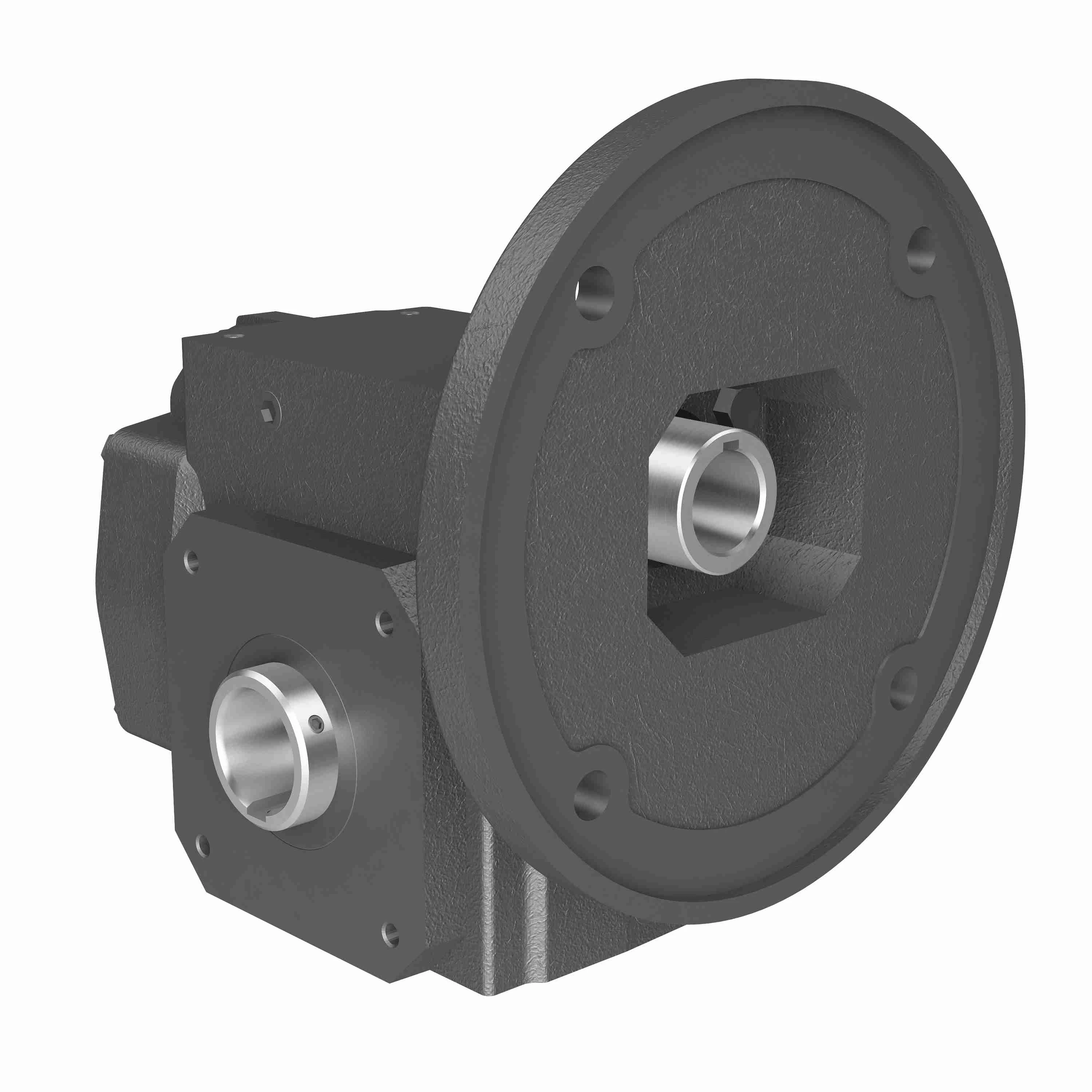

HUB CITY HERA45 Series Helical Hypoid Reducers, ES Type, Cast Iron
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2
E2
F2
G2
H2
I2| Style | Model | Output Dia. | Output Torque | Input Dia. | Output Speed | Max. Input Hp | Input Style | Ratio | Input Hp @ 1750 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-54096 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 29.3 RPM | 1 17/50 hp | C Face Quill | 59.79:1 | 1 17/50 hp | €1,788.13 | |
| B | 0250-54044 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | - | - | C Face Quill | 19.51 | - | €1,788.13 | RFQ
|
| C | 0250-54047 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 33.3 RPM | 1.53 hp | C Face Quill | 52.5:1 | 1.53 hp | €1,285.43 | |
| D | 0250-54046 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 43.8 RPM | 2.01 hp | C Face Quill | 39.98:1 | 2.01 hp | €1,788.13 | |
| E | 0250-54137 | 1 1/2" | 1000 lbs.-in. to 2500 lbs.-in. | 1.126" | 224.4 RPM | 8 1/2 hp | C Face Quill | 7.8:1 | 8 1/2 hp | €1,788.13 | |
| F | 0250-54093 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 62.5 RPM | 2 43/50 hp | C Face Quill | 28.01:1 | 2 43/50 hp | €1,788.13 | |
| G | 0250-54139 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 112.2 RPM | 5 7/50 hp | C Face Quill | 15.6:1 | 5 7/50 hp | €1,788.13 | |
| H | 0250-54048 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 29.3 RPM | 1 17/50 hp | C Face Quill | 59.79:1 | 1 17/50 hp | €1,788.13 | |
| I | 0250-54045 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 62.5 RPM | 2 43/50 hp | C Face Quill | 28.01:1 | 2 43/50 hp | €1,788.13 | |
| J | 0250-54140 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 89.7 RPM | 4.11 hp | C Face Quill | 19.5:1 | 4.11 hp | €1,788.13 | |
| K | 0250-54143 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 33.3 RPM | 1.53 hp | C Face Quill | 52.5:1 | 1.53 hp | €1,788.13 | |
| L | 0250-54091 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 112.2 RPM | 5 7/50 hp | C Face Quill | 15.6:1 | 5 7/50 hp | €1,788.13 | |
| M | 0250-54095 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 33.3 RPM | 1.53 hp | C Face Quill | 52.5:1 | 1.53 hp | €1,788.13 | |
| N | 0250-54042 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | - | - | C Face Quill | 11.36:1 | - | €1,788.13 | |
| O | 0250-54090 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 154 RPM | 7 3/50 hp | C Face Quill | 11.36:1 | 7 3/50 hp | €1,788.13 | |
| P | 0250-54141 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 62.5 RPM | 2 43/50 hp | C Face Quill | 28.01:1 | 2 43/50 hp | €1,788.13 | |
| Q | 0250-54041 | 1 1/2" | 1000 lbs.-in. to 2500 lbs.-in. | 0.626" | - | - | C Face Quill | 7.81 | - | €1,788.13 | |
| R | 0250-54142 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 43.8 RPM | 2.01 hp | C Face Quill | 39.98:1 | 2.01 hp | €1,788.13 | |
| S | 0250-54094 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 43.8 RPM | 2.01 hp | C Face Quill | 39.98:1 | 2.01 hp | €1,788.13 | |
| T | 0250-54089 | 1 1/2" | 1000 lbs.-in. to 2500 lbs.-in. | 0.876" | 224.4 RPM | 8 1/2 hp | C Face Quill | 7.8:1 | 8 1/2 hp | €1,788.13 | |
| U | 0250-54144 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 29.3 RPM | 1 17/50 hp | C Face Quill | 59.79:1 | 1 17/50 hp | €1,788.13 | |
| V | 0250-54043 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 112.2 RPM | 5 7/50 hp | C Face Quill | 15.6:1 | 5 7/50 hp | €1,788.13 | |
| W | 0250-54092 | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 89.7 RPM | 4.11 hp | C Face Quill | 19.5:1 | 4.11 hp | €1,788.13 | |
| X | 0250-54075 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 112.2 RPM | 5 7/50 hp | C Face Quill | 15.6:1 | 5 7/50 hp | €1,788.13 | |
| Y | 0250-54125 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 62.5 RPM | 2 43/50 hp | C Face Quill | 28.01:1 | 2 43/50 hp | €1,788.13 | |
| Z | 0250-54121 | 1 1/4" | 1000 lbs.-in. to 2500 lbs.-in. | 1.126" | 224.4 RPM | 8 1/2 hp | C Face Quill | 7.8:1 | 8 1/2 hp | €1,788.13 | |
| A1 | 0250-54126 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 43.8 RPM | 2.01 hp | C Face Quill | 39.98:1 | 2.01 hp | €1,788.13 | |
| B1 | 0250-54032 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 29.3 RPM | 1 17/50 hp | C Face Quill | 59.79:1 | 1 17/50 hp | €1,788.13 | |
| C1 | 0250-54124 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 89.7 RPM | 4.11 hp | C Face Quill | 19.5:1 | 4.11 hp | €1,788.13 | |
| D1 | 0250-54026 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 154 RPM | 7 3/50 hp | C Face Quill | 11.36:1 | 7 3/50 hp | €1,788.13 | |
| E1 | 0250-54028 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 89.7 RPM | 4.11 hp | C Face Quill | 19.5:1 | 4.11 hp | €1,788.13 | |
| F1 | 0250-54027 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 112.2 RPM | 5 7/50 hp | C Face Quill | 15.6:1 | 5 7/50 hp | €1,788.13 | |
| G1 | 0250-54030 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 43.8 RPM | 2.01 hp | C Face Quill | 39.98:1 | 2.01 hp | €1,788.13 | |
| H1 | 0250-54025 | 1 1/4" | 1000 lbs.-in. to 2500 lbs.-in. | 0.626" | - | - | C Face Quill | 7.81 | - | €1,788.13 | |
| I1 | 0250-54031 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 33.3 RPM | 1.53 hp | C Face Quill | 52.5:1 | 1.53 hp | €1,624.14 | |
| J1 | 0250-54127 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 33.3 RPM | 1.53 hp | C Face Quill | 52.5:1 | 1.53 hp | €1,788.13 | |
| K1 | 0250-54079 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 33.3 RPM | 1.53 hp | C Face Quill | 52.5:1 | 1.53 hp | €1,788.13 | |
| L1 | 0250-54122 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 154 RPM | 7 3/50 hp | C Face Quill | 11.36:1 | 7 3/50 hp | €1,788.13 | |
| M1 | 0250-54073 | 1 1/4" | 1000 lbs.-in. to 2500 lbs.-in. | 0.876" | 224.4 RPM | 8 1/2 hp | C Face Quill | 7.8:1 | 8 1/2 hp | €1,788.13 | |
| N1 | 0250-54080 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 29.3 RPM | 1 17/50 hp | C Face Quill | 59.79:1 | 1 17/50 hp | €1,788.13 | |
| O1 | 0250-54128 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 29.3 RPM | 1 17/50 hp | C Face Quill | 59.79:1 | 1 17/50 hp | €1,788.13 | |
| P1 | 0250-54123 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 112.2 RPM | 5 7/50 hp | C Face Quill | 15.6:1 | 5 7/50 hp | €1,788.13 | |
| Q1 | 0250-54076 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 89.7 RPM | 4.11 hp | C Face Quill | 19.5:1 | 4.11 hp | €1,788.13 | |
| R1 | 0250-54029 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 62.5 RPM | 2 43/50 hp | C Face Quill | 28.01:1 | 2 43/50 hp | €1,788.13 | |
| S1 | 0250-54077 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 62.5 RPM | 2 43/50 hp | C Face Quill | 28.01:1 | 2 43/50 hp | €1,788.13 | |
| T1 | 0250-54074 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 154 RPM | 7 3/50 hp | C Face Quill | 11.36:1 | 7 3/50 hp | €1,788.13 | |
| U1 | 0250-54078 | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 43.8 RPM | 2.01 hp | C Face Quill | 39.98:1 | 2.01 hp | €1,788.13 | |
| V1 | 0250-54064 | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 29.3 RPM | 1 17/50 hp | C Face Quill | 59.79:1 | 1 17/50 hp | €1,285.43 | |
| W1 | 0250-54016 | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 29.3 RPM | 1 17/50 hp | C Face Quill | 59.79:1 | 1 17/50 hp | €1,788.13 | |
| X1 | 0250-54061 | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 62.5 RPM | 2 43/50 hp | C Face Quill | 28.01:1 | 2 43/50 hp | €1,285.43 | |
| Y1 | 0250-54058 | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | 154 RPM | 7 3/50 hp | C Face Quill | 11.36:1 | 7 3/50 hp | €1,788.13 | |
| Z1 | 0250-54015 | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 33.3 RPM | 1.53 hp | C Face Quill | 52.5:1 | 1.53 hp | €1,788.13 | |
| A2 | 0250-54106 | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 154 RPM | 7 3/50 hp | C Face Quill | 11.36:1 | 7 3/50 hp | €1,788.13 | |
| B2 | 0250-54105 | 1 1/8" | 1000 lbs.-in. to 2500 lbs.-in. | 1.126" | 224.4 RPM | 8 1/2 hp | C Face Quill | 7.8:1 | 8 1/2 hp | €1,285.43 | |
| C2 | 0250-54010 | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 154 RPM | 7 3/50 hp | C Face Quill | 11.36:1 | 7 3/50 hp | €1,788.13 | |
| D2 | 0250-54108 | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 89.7 RPM | 4.11 hp | C Face Quill | 19.5:1 | 4.11 hp | €1,285.43 | |
| E2 | 0250-54110 | 1 1/8" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 43.8 RPM | 2.01 hp | C Face Quill | 39.98:1 | 2.01 hp | €1,285.43 | |
| F2 | 0250-54049 | 1" | 1000 lbs.-in. to 2500 lbs.-in. | 0.876" | 224.4 RPM | 8 1/2 hp | C Face Quill | 7.8:1 | 8 1/2 hp | €1,788.13 | |
| G2 | 0250-54103 | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 1.126" | 33.3 RPM | 1.53 hp | C Face Quill | 52.5:1 | 1.53 hp | €1,788.13 | |
| H2 | 0250-54056 | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 0.876" | - | - | C Face Quill | 59.79:1 | - | €1,788.13 | |
| I2 | 0250-54004 | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 0.626" | 89.7 RPM | 4.11 hp | C Face Quill | 19.5:1 | 4.11 hp | €1,788.13 |
