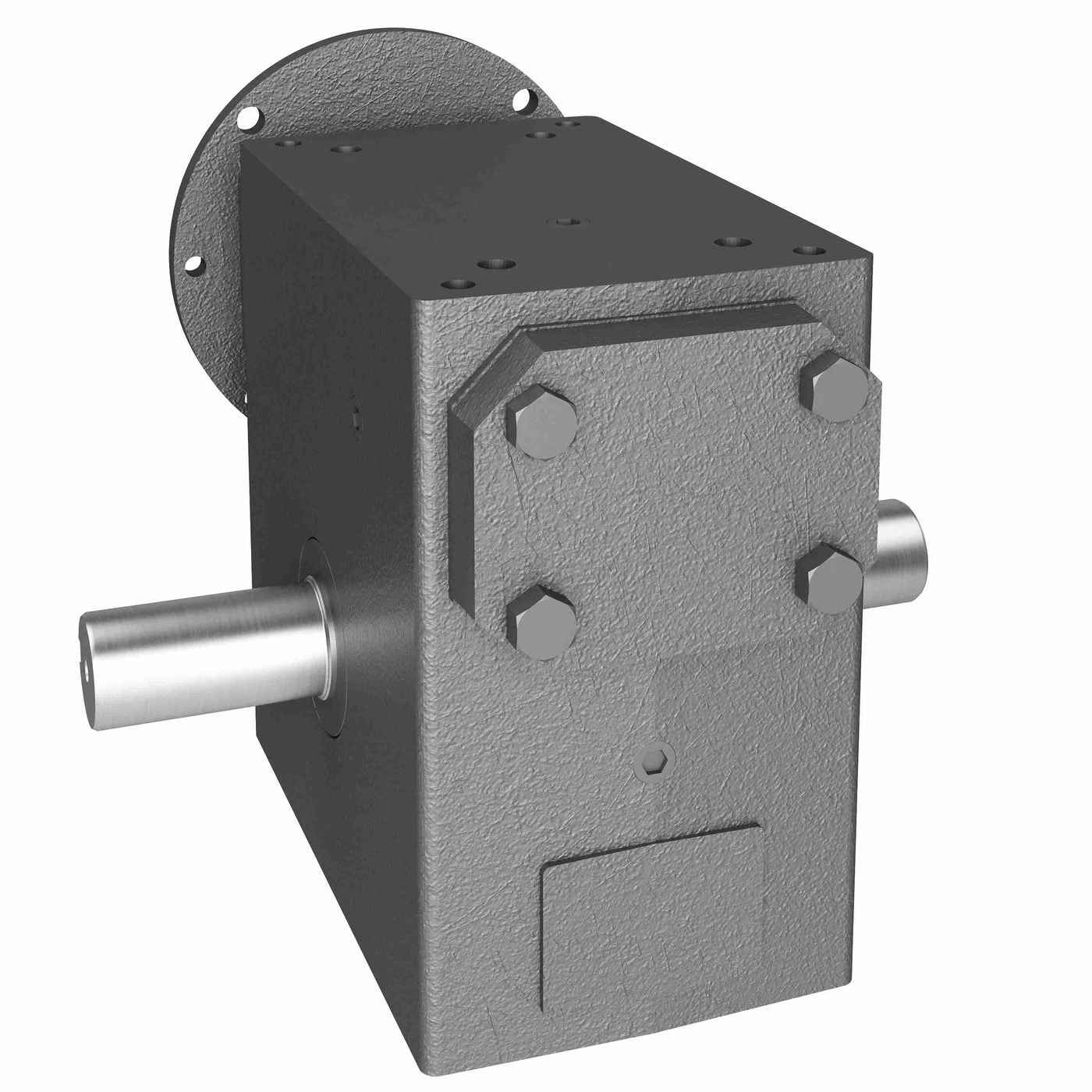

HUB CITY 0230-14811 Worm Reducer, 3.56 Hp, 1.375 Inch I.D, 1.125 Inch O.D, Cast Iron
Get it by Tuesday, Apr 14
€1,936.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" |
| Center Distance Range | Above 3.25" |
| Frame Size | 180TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 3 hp to 5 hp |
| Input Dia. | 1 1/8" |
| Input Style | C Face Quill |
| Keyway Size | 1/4" x 1/8" |
| Max. Input Hp | 3 14/25 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 3/8" |
| Output Rpm | 58.3 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Overhung Load | 1100 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 30:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 2943 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 30.15 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | max. input hp | input style | output shaft | ratio | output rpm | frame size | motor frame size | output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-15015 | 3 14/25 hp | C Face Quill | Hollow Bore | 30:1 | 58.3 RPM | 140TC | - | - | €2,457.02 | |
 |
0230-14850 | 1 17/20 hp | C Face Quill | Shaft | 60:1 | 29.2 RPM | 140TC | - | - | €1,676.91 | |
 |
0230-14737 | 4.59 hp | Shaft | Hollow Bore | 20:1 | 87.5 RPM | - | - | - | €2,185.89 | |
 |
0230-14901 | 10 hp | C Face Quill | Shaft | 5:1 | 350 RPM | 180TC | - | - | €1,936.83 | |
 |
0230-14631 | 3 14/25 hp | Shaft | Shaft | 30:1 | 58.3 RPM | - | - | - | €1,657.75 | |
 |
0230-15047 | 6 19/25 hp | C Face Quill | Hollow Bore | 10:1 | 175 RPM | 180TC | - | - | €2,457.02 | |
 |
0230-14978 | 3 23/25 hp | C Face Quill | Hollow Bore | 25:1 | 70 RPM | 140TC | - | - | €2,457.02 |
