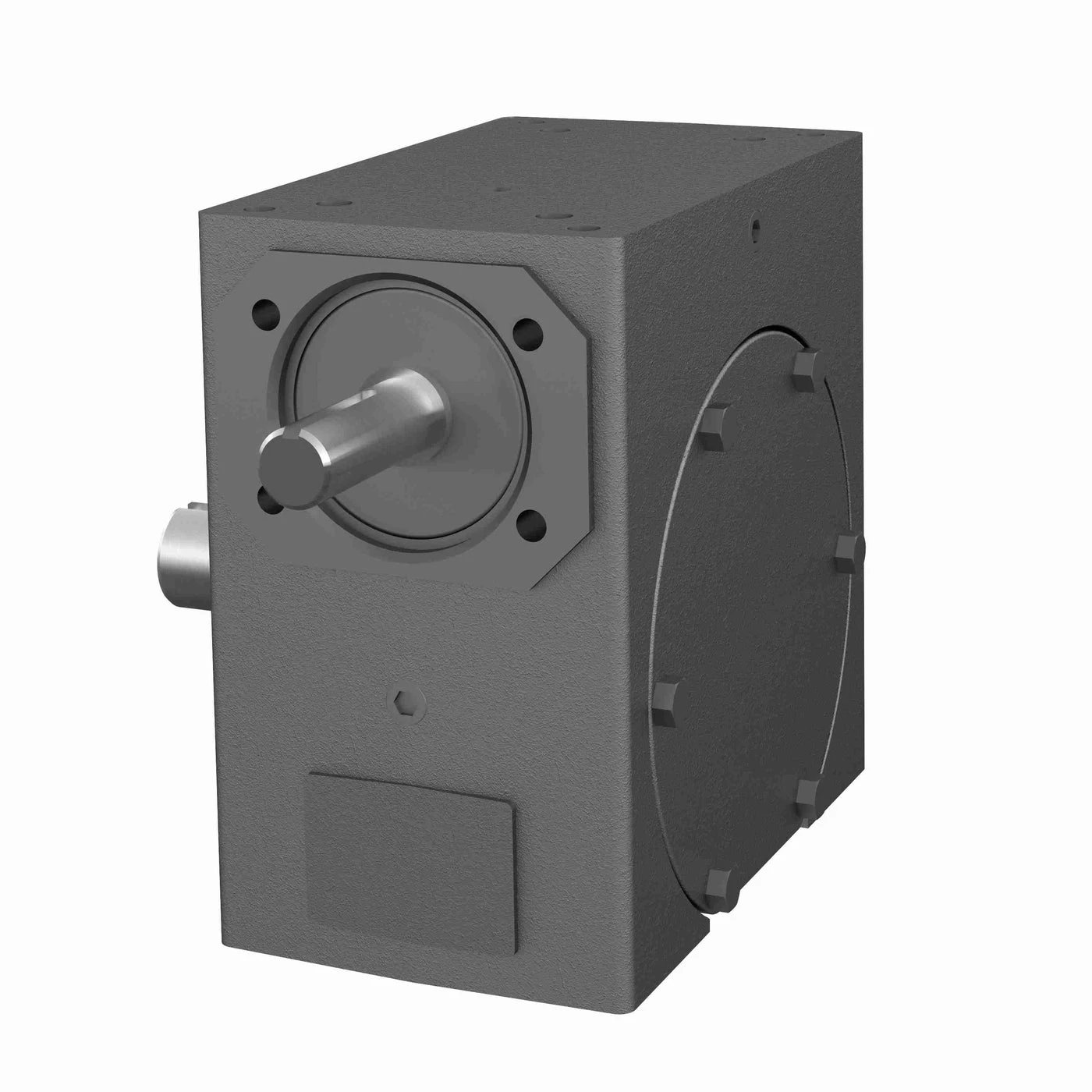

HUB CITY 0230-14617 Worm Reducer, 4.59 Hp, 1.375 Inch I.D, 0.875 Inch O.D, Cast Iron
Get it by Monday, Dec 22
€1,657.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" |
| Center Distance Range | Above 3.25" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 3 hp to 5 hp |
| Input Dia. | 7/8" |
| Input Style | Shaft |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 4.59 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 3/8" |
| Output Rpm | 87.5 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Left |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Overhung Load | 1100 |
| Product Datasheet | hub-city-0230-14610.pdf |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 20:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 2686 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 27 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Documentation:
Product Variants
| Product | Model | Max. Input Hp | Frame Size | Gear Type | Overhung Load | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|
 |
0230-15015 | 3 14/25 hp | 140TC | Worm | - | Cast Iron | €2,457.02 | |
 |
0230-14850 | 1 17/20 hp | 140TC | Worm | 1100 | Cast Iron | €1,676.91 | |
 |
0230-14737 | 4.59 hp | - | Worm | - | Cast Iron | €2,185.89 | |
 |
0230-14901 | 10 hp | 180TC | Worm | 1100 | Cast Iron | €1,936.83 | |
 |
0230-14631 | 3 14/25 hp | - | Worm | 1100 | Cast Iron | €1,657.75 | |
 |
0230-15047 | 6 19/25 hp | 180TC | Worm | - | Cast Iron | €2,457.02 | |
 |
0230-14978 | 3 23/25 hp | 140TC | Worm | - | Cast Iron | €2,457.02 |
