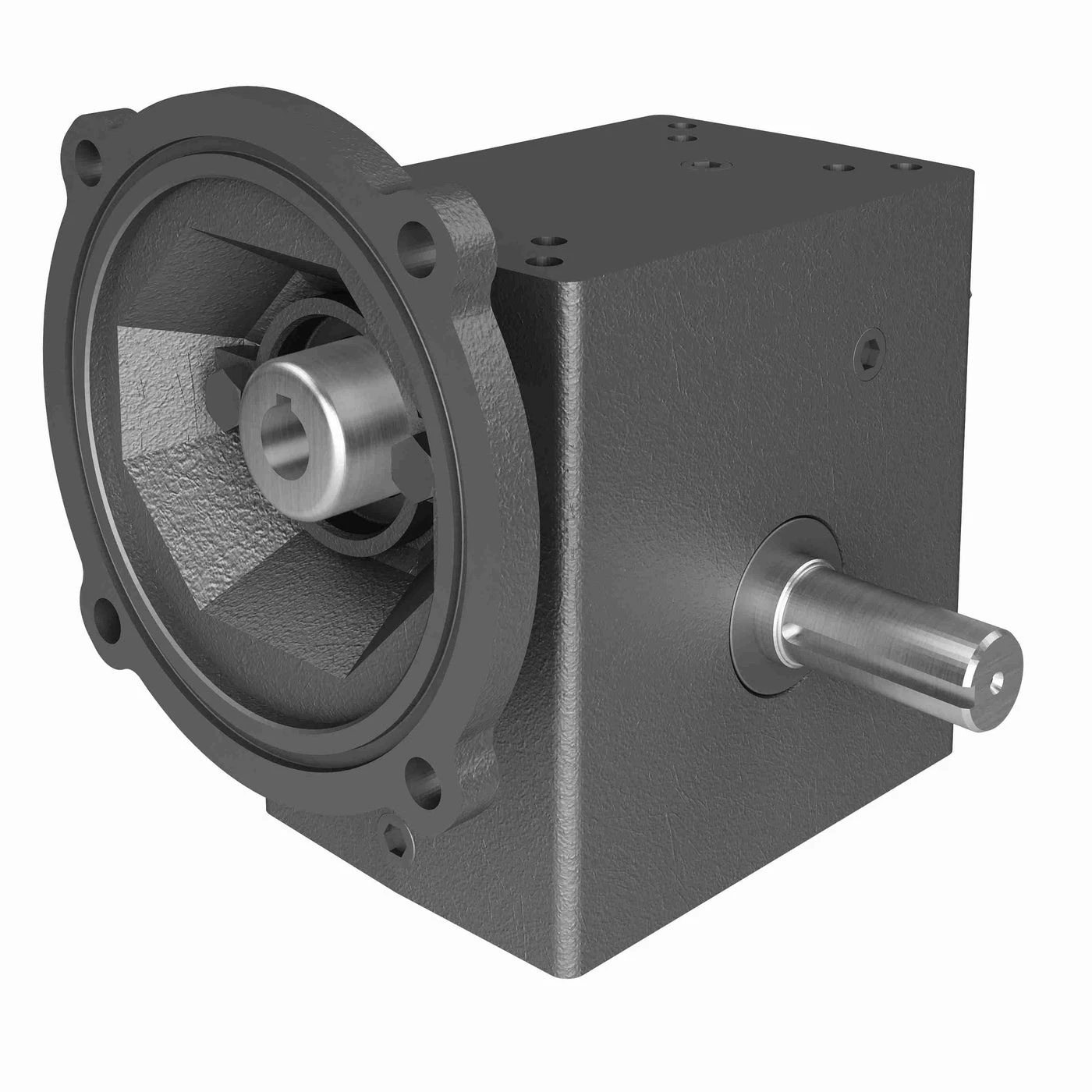

HUB CITY 0230-02569 Worm Reducer, 1.5 Hp, 0.875 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Thursday, Aug 27
€898.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.06" |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 1 1/2 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 7/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Speed | 87.5 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Overhung Load | 550 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 20:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 839 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 24.13 |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Max. Input Hp | Output Speed | Style | Output Shaft | Ratio | Input Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-02577 | 7/8" | 7/8" | 3.89 hp | 350 RPM | A | Shaft | 5:1 | C Face Quill | €898.14 | |
 |
0230-03184 | 1" | 5/8" | 0.83 hp | 43.8 RPM | R | Hollow Bore | 40:1 | C Face Quill | €1,531.02 | |
|
0230-02963 | 1" | 5/8" | 2 1/2 hp | 175 RPM | L | Hollow Bore | 10:1 | C Face Quill | €1,531.02 | |
 |
0230-02644 | 7/8" | 5/8" | 0.83 hp | 43.8 RPM | C | Shaft | 40:1 | C Face Quill | €898.14 | |
 |
0230-02961 | 1" | 5/8" | 3.89 hp | 350 RPM | L | Hollow Bore | 5:1 | C Face Quill | €1,531.02 | |
 |
0230-02603 | 7/8" | 5/8" | 2 1/2 hp | 175 RPM | B | Shaft | 10:1 | C Face Quill | €987.95 | |
 |
0230-02639 | 7/8" | 5/8" | 2 1/2 hp | 175 RPM | C | Shaft | 10:1 | C Face Quill | €1,037.36 |
