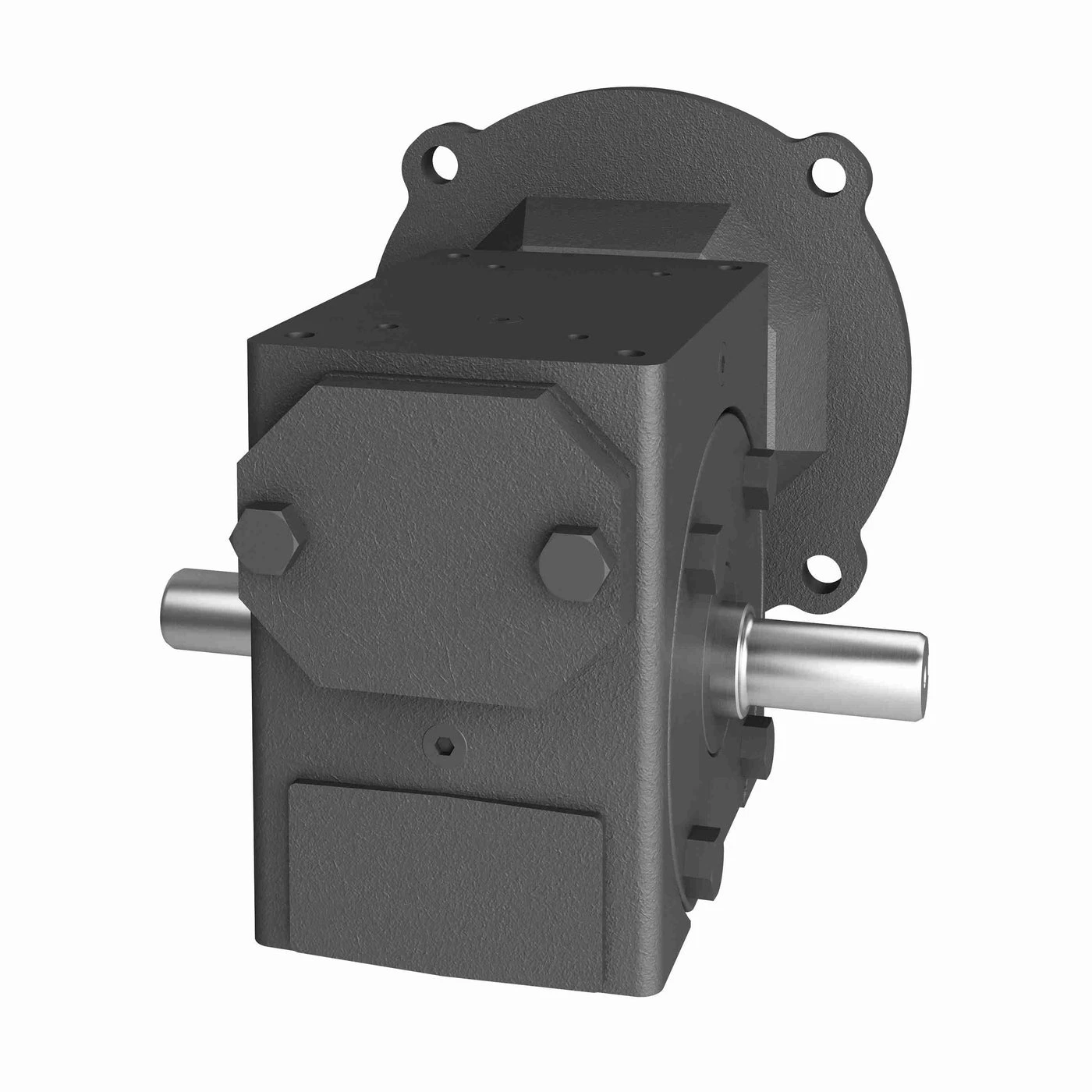

HUB CITY 0230-01476 Worm Reducer, 0.78 Hp, 0.750 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Thursday, Aug 27
€890.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" , 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 1/2 hp to 1 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 39/50 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 3/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Speed | 70 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Overhung Load | 550 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 25:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 536 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 24.13 |
Product Variants
| Product | Model | Output Speed | Output Torque | Max. Input Hp | Torque | Hp | Output Shaft Direction | Style | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-01511 | 87.5 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1 hp | 541 lbs.-in. | 1 hp to 2 hp | Left | B | 20:1 | €890.09 | |
 |
0230-01543 | 350 RPM | 250 lbs.-in. to 500 lbs.-in. | 2.57 hp | 397 lbs.-in. | 2 hp to 3 hp | Right | C | 5:1 | €770.65 | |
 |
0230-01514 | 43.8 RPM | 500 lbs.-in. to 1000 lbs.-in. | 11/20 hp | 540 lbs.-in. | 1/2 hp to 1 hp | Left | B | 40:1 | €770.65 | |
 |
0230-01547 | 87.5 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1 hp | 541 lbs.-in. | 1 hp to 2 hp | Right | C | 20:1 | €890.09 | |
 |
0230-01474 | 117 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1 1/4 hp | 541 lbs.-in. | 1 hp to 2 hp | Double | A | 15:1 | €847.71 | |
 |
0230-01471 | 350 RPM | 250 lbs.-in. to 500 lbs.-in. | 2.57 hp | 397 lbs.-in. | 2 hp to 3 hp | Double | A | 5:1 | €968.80 | |
 |
0230-01546 | 117 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1 1/4 hp | 541 lbs.-in. | 1 hp to 2 hp | Right | C | 15:1 | €890.09 |
