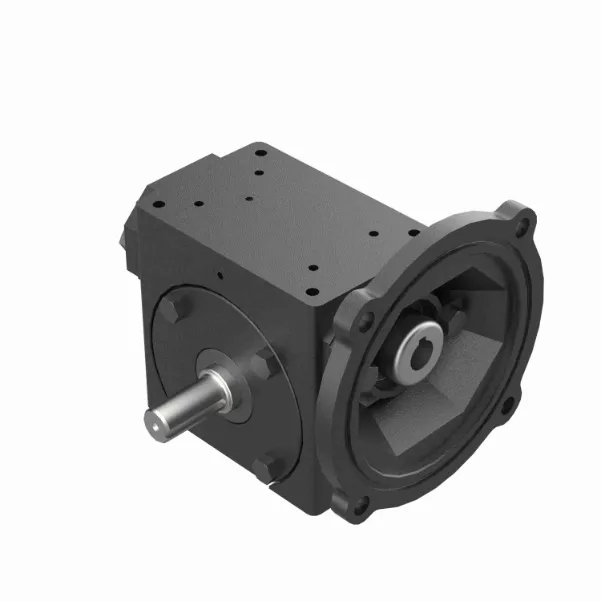

HUB CITY 0230-01473 Worm Reducer, 1.63 Hp, 0.750 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Tuesday, Apr 14
€770.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" |
| Center Distance Range | 1" to 3 1/4" |
| Dimensions | 7" |
| Efficiency | 83.6% |
| Frame Size | 56C |
| Gear Ratio | 10:1 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Hp | 1 63/100 hp |
| Input Max. Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Lubrication Type | Conventional Oil |
| Material | Cast Iron |
| Max. Input Hp | 1.63 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 3/4" |
| Output Keyway Size | 3/16" x 3/32" |
| Output Length | 1.78" |
| Output Max. Speed | 175 RPM |
| Output Rpm | 175 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Torque Range | 250 lbs.-in. to 500 lbs.-in. |
| Output Torque Rating | 491 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 550 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 10:1 |
| Series | 180PCX Series |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 491 lbs.-in. |
| Type | Right Angle Single Reduction Style A |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 24.13 |
Product Variants
| Product | Model | max. input hp | output rpm | ratio | gear type | series | gear ratio | center distance | input style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-01511 | 1 hp | 87.5 RPM | 20:1 | Worm | - | - | 1 3/4" | C Face Quill | €890.09 | |
 |
0230-01543 | 2.57 hp | 350 RPM | 5:1 | Worm | - | - | 1 3/4" | C Face Quill | €770.65 | |
 |
0230-01514 | 11/20 hp | 43.8 RPM | 40:1 | Worm | - | - | 1 3/4" | C Face Quill | €770.65 | |
 |
0230-01547 | 1 hp | 87.5 RPM | 20:1 | Worm | - | - | 1 3/4" | C Face Quill | €890.09 | |
 |
0230-01474 | 1 1/4 hp | 117 RPM | 15:1 | Worm | - | - | 1 3/4" | C Face Quill | €847.71 | |
 |
0230-01471 | 2.57 hp | 350 RPM | 5:1 | Worm | - | - | 1 3/4" | C Face Quill | €968.80 | |
 |
0230-01546 | 1 1/4 hp | 117 RPM | 15:1 | Worm | - | - | 1 3/4" | C Face Quill | €890.09 |
