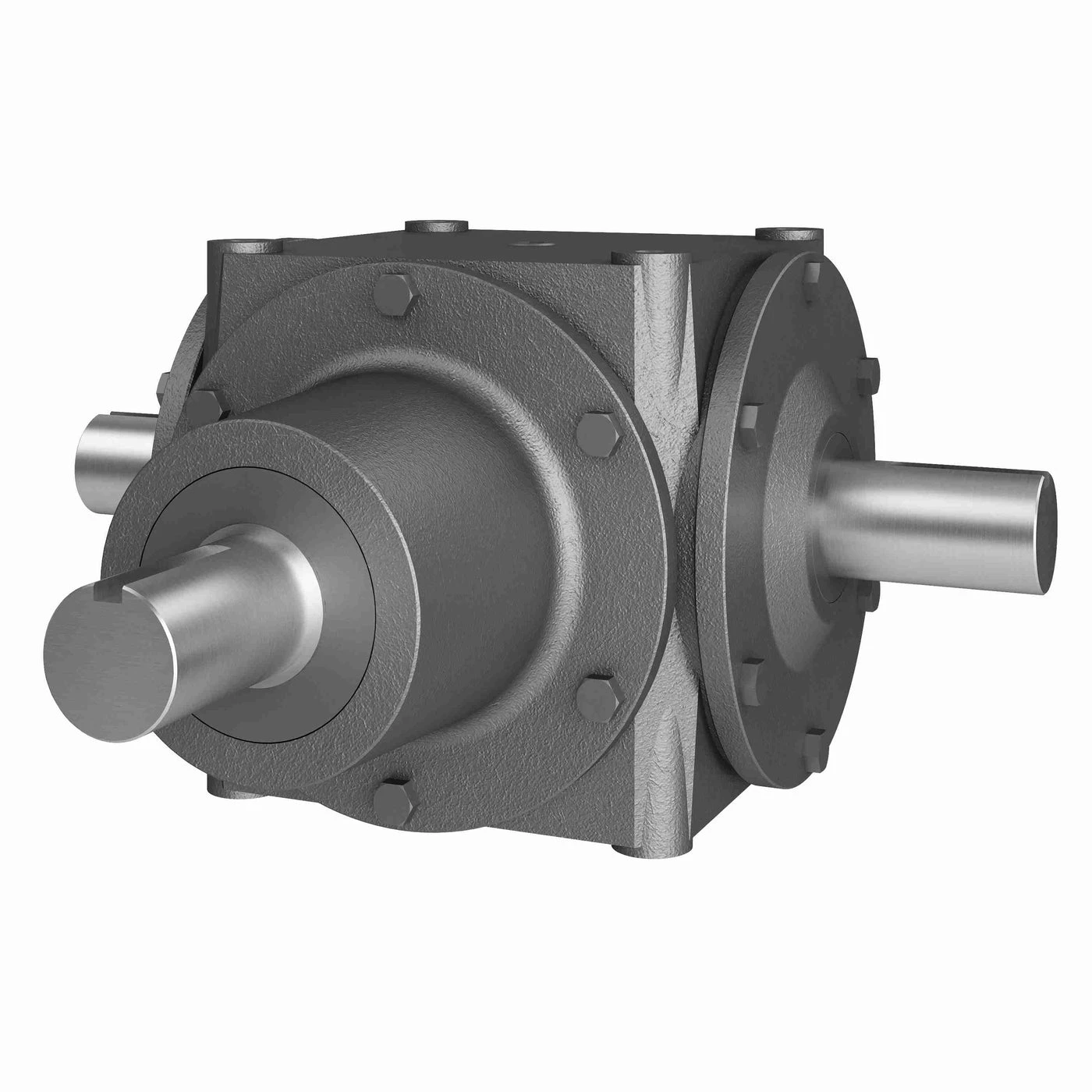

HUB CITY 0220-59418 Bevel Gear Drive, 45 HP, 1.750 Inch I.D, 1.750 Inch O.D, Ductile Iron
Get it by Tuesday, Sep 1
€4,727.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 810 |
| Gear Type | Straight Bevel |
| Housing Height | 8 3/16" |
| Housing Length | 12 19/32" |
| Housing Material | Ductile Iron |
| Housing Width | 9 29/32" |
| Hp | 30 hp to 50 hp |
| Input Dia. | 1 3/4" |
| Input Style | Shaft |
| Max. Input Hp | 45 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Speed | 639.1 RPM |
| Output Torque | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1.33:1 |
| Service Factor | 1 |
| Style | D, E |
| Torque | 4350 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 40.5 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 41.28 |
| Ship width (cm) | 39.37 |
Product Variants
| Product | Model | Output Torque | Output Speed | Max. Input Hp | Output Shaft Direction | Style | Gear Type | Ratio | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-59401 | 5000 lbs.-in. to 10000 lbs.-in. | 690 RPM | 56 1/5 hp | Double | A, B | Straight Bevel | 1:1 | 5130 lbs.-in. | €3,167.85 | |
 |
0220-59443 | 2500 lbs.-in. to 5000 lbs.-in. | - | - | Left, Right | C, F | Spiral Bevel | 1:1 | - | €5,086.90 | |
 |
0220-59458 | 2500 lbs.-in. to 5000 lbs.-in. | - | - | Left, Right | C, F | Spiral Bevel | 3:1 | - | €5,371.47 | |
 |
0220-59442 | 2500 lbs.-in. to 5000 lbs.-in. | 1750 RPM | - | Double | A, B | Spiral Bevel | 1:1 | 4750 lbs.-in. | €4,037.22 | |
 |
0220-59436 | 2500 lbs.-in. to 5000 lbs.-in. | - | 33 hp | Double | A, B | Straight Bevel | 1.71:1 | 3100 lbs.-in. | €4,821.90 | |
 |
0220-59444 | 2500 lbs.-in. to 5000 lbs.-in. | - | - | Left, Right | D, E | Spiral Bevel | 1:1 | - | €5,086.90 | |
 |
0220-59402 | 5000 lbs.-in. to 10000 lbs.-in. | 690 RPM | 56 1/5 hp | Left Or Right | C, F | Straight Bevel | 1:1 | 5130 lbs.-in. | €3,991.51 |
