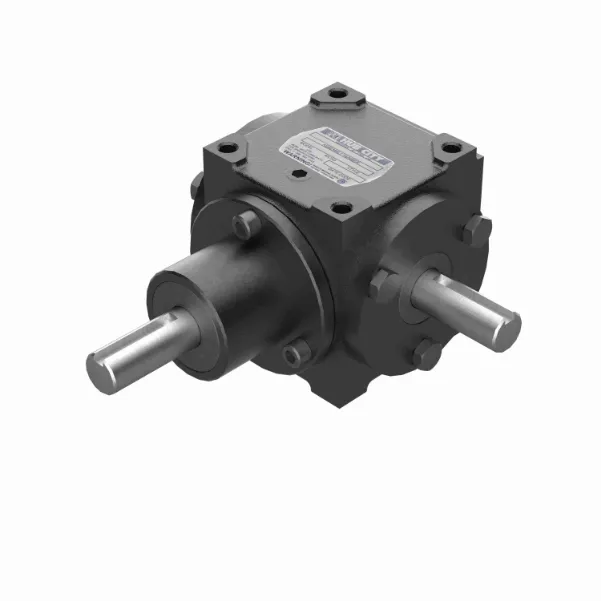

HUB CITY 0220-21112 Bevel Gear Drive, 1.04 HP, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron
Item: AY2JYKModel: 0220-21112
7 In Stock
2:1
250 lbs.-in.
Left/Right
Ships within 2 days via
€1,192.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | M3 |
| Gear Type | Straight Bevel |
| Housing Height | 3 3/16" |
| Housing Length | 4 21/32" |
| Housing Material | Cast Iron |
| Housing Width | 3 15/32" |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Hp | 1 1/25 hp |
| Input Hp @ 1750 Rpm | 1 1/25 hp |
| Input Style | Shaft |
| Max. Input Hp | 1 1/25 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 5/8" |
| Output Rpm | 875 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 0 lbs.-in. to 250 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 2:1 |
| Service Factor | 1 |
| Style | C, F |
| Torque Rating | 75 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 2.61 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Max. Input Hp | Gear Type | Gear Ratio | Housing Material | Output Type | Material | Mounting Type | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-21102 | 2 1/4 hp | Straight Bevel | 1:1 | Cast Iron | Shaft | Cast Iron | Four Bolt Surface | 2 1/4 hp | €890.33 | |
 |
0220-21103 | 2 1/4 hp | Straight Bevel | - | Cast Iron | - | - | - | - | €890.33 | |
 |
0220-21105 | 2 1/4 hp | Straight Bevel | - | Cast Iron | - | - | - | - | €1,310.56 | |
 |
0220-21101 | 2 1/4 hp | Straight Bevel | - | Cast Iron | - | - | - | - | €890.33 | |
 |
0220-21111 | 1 1/25 hp | Straight Bevel | - | Cast Iron | - | - | - | - | €1,192.78 | |
 |
0220-21104 | - | Straight Bevel | - | Cast Iron | - | - | - | - | €1,231.51 | RFQ
|
 |
0220-21107 | - | Straight Bevel | - | Cast Iron | - | - | - | - | €1,502.90 |
