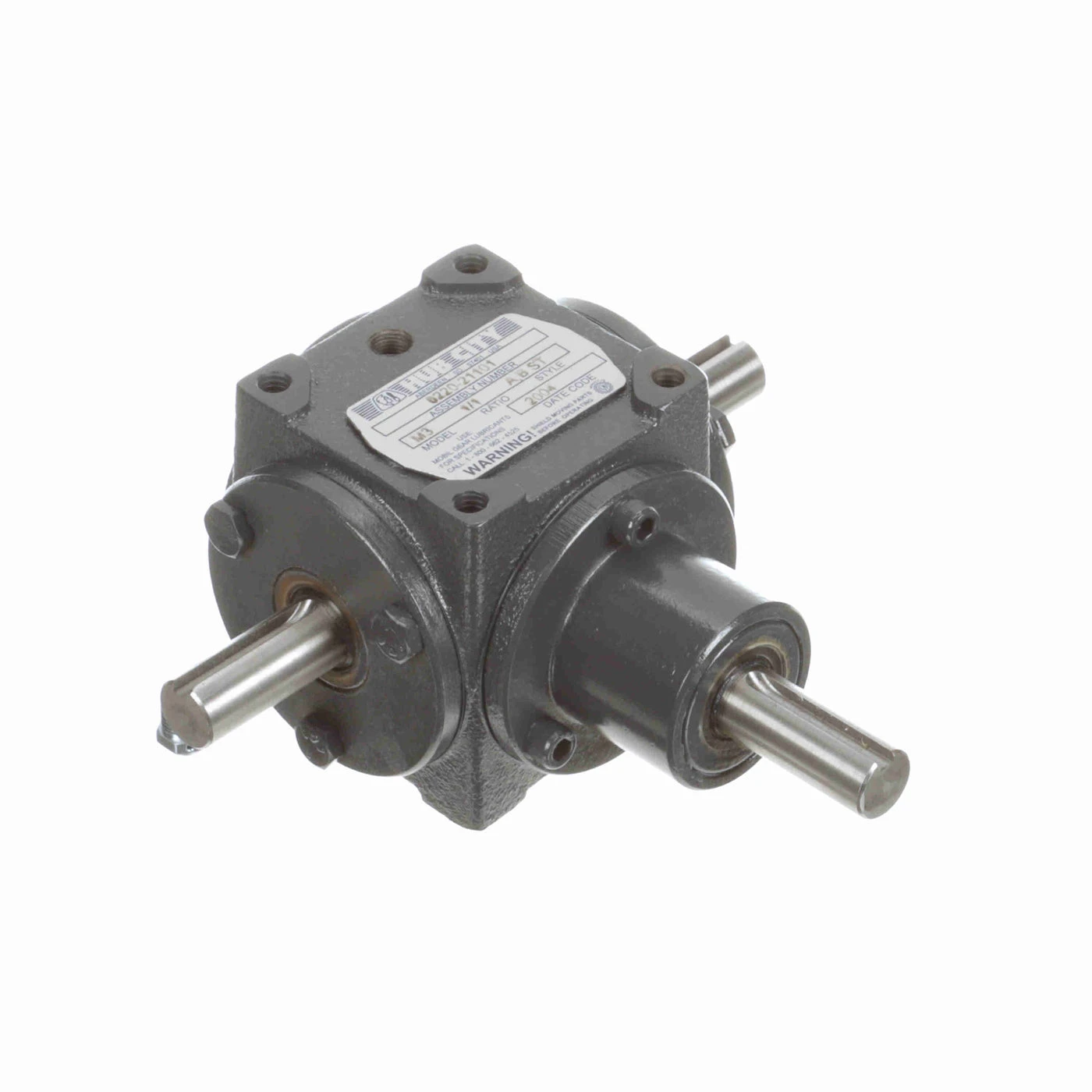

HUB CITY 0220-21117 Bevel Gear Drive, 1.2 HP, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron
Item: AX7QFXModel: 0220-21117
7 In Stock
1:2
250 lbs.-in.
Double
Ships within 2 days via
€1,678.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | M3 |
| Gear Type | Straight Bevel |
| Housing Height | 3 3/16" |
| Housing Length | 4 21/32" |
| Housing Material | Cast Iron |
| Housing Width | 3 15/32" |
| Input Dia. | 5/8" |
| Input Hp | 1 1/5 hp |
| Input Style | Shaft |
| Output | 2300 RPM |
| Output Dia. | 5/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left, Right |
| Output Torque | Less than 250 Lbs.-In. |
| Output Torque Rating | 33 lbs.-in. |
| Product Datasheet | hub-city-0220-04065.pdf |
| Ratio | 1:2 |
| Reduction | Single |
| Service Factor | 1 |
| Style | G |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Product | Model | output torque | max. input hp | ratio | output | gear type | series | gear ratio | mounting type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-21102 | 0 lbs.-in. to 250 lbs.-in. | 2 1/4 hp | 1:1 | - | Straight Bevel | M3 Series | 1:1 | Four Bolt Surface | €890.33 | |
 |
0220-21103 | 0 lbs.-in. to 250 lbs.-in. | 2 1/4 hp | 1:1 | - | Straight Bevel | - | - | - | €890.33 | |
 |
0220-21105 | 0 lbs.-in. to 250 lbs.-in. | 2 1/4 hp | 1:1 | - | Straight Bevel | - | - | - | €1,310.56 | |
 |
0220-21101 | 0 lbs.-in. to 250 lbs.-in. | 2 1/4 hp | 1:1 | - | Straight Bevel | - | - | - | €890.33 | |
 |
0220-21111 | 0 lbs.-in. to 250 lbs.-in. | 1 1/25 hp | 2:1 | - | Straight Bevel | - | - | - | €1,192.78 | |
 |
0220-21104 | Less than 250 Lbs.-In. | - | 1:1 | 1750 RPM | Straight Bevel | - | - | - | €1,231.51 | RFQ
|
 |
0220-21107 | Less than 250 Lbs.-In. | - | 1.51 | 1166.7 RPM | Straight Bevel | - | - | - | €1,502.90 |
