HUB CITY 0220-05308 Bevel Gear Drive, 0.913 HP, 0.3745 Inch I.D, 0.375 Inch O.D, Aluminum
Item: AK7EPNModel: 0220-05308
7 In Stock
Ships within 2 days via
€990.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | AD4 |
| Gear Type | Spiral Bevel |
| Housing Height | 1.255" |
| Housing Length | 3.015" |
| Housing Material | Aluminum |
| Housing Width | 2 3/4" |
| Input Dia. | 0.3745" |
| Input Hp | 0.913 hp |
| Input Hp @ 1750 Rpm | 0.913 hp |
| Input Style | Shaft |
| No. Of Gear Reductions | 1 |
| Output Dia. | 3/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Speed | 1750 RPM |
| Output Torque | 0 lbs.-in. to 250 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Service Factor | 1 |
| Style | D, E |
| Torque | 32.9 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Shaft Direction | Style | Ratio | Input Hp @ 1750 Rpm | Torque | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-05301 | 0 lbs.-in. to 250 lbs.-in. | 1750 RPM | Double | A, B | 1:1 | 0.913 hp | 32.9 lbs.-in. | Aluminum | €785.74 | |
 |
0220-05307 | 0 lbs.-in. to 250 lbs.-in. | 1750 RPM | Left Or Right | C, F | 1:1 | 0.913 hp | 32.9 lbs.-in. | Aluminum | €990.06 | |
 |

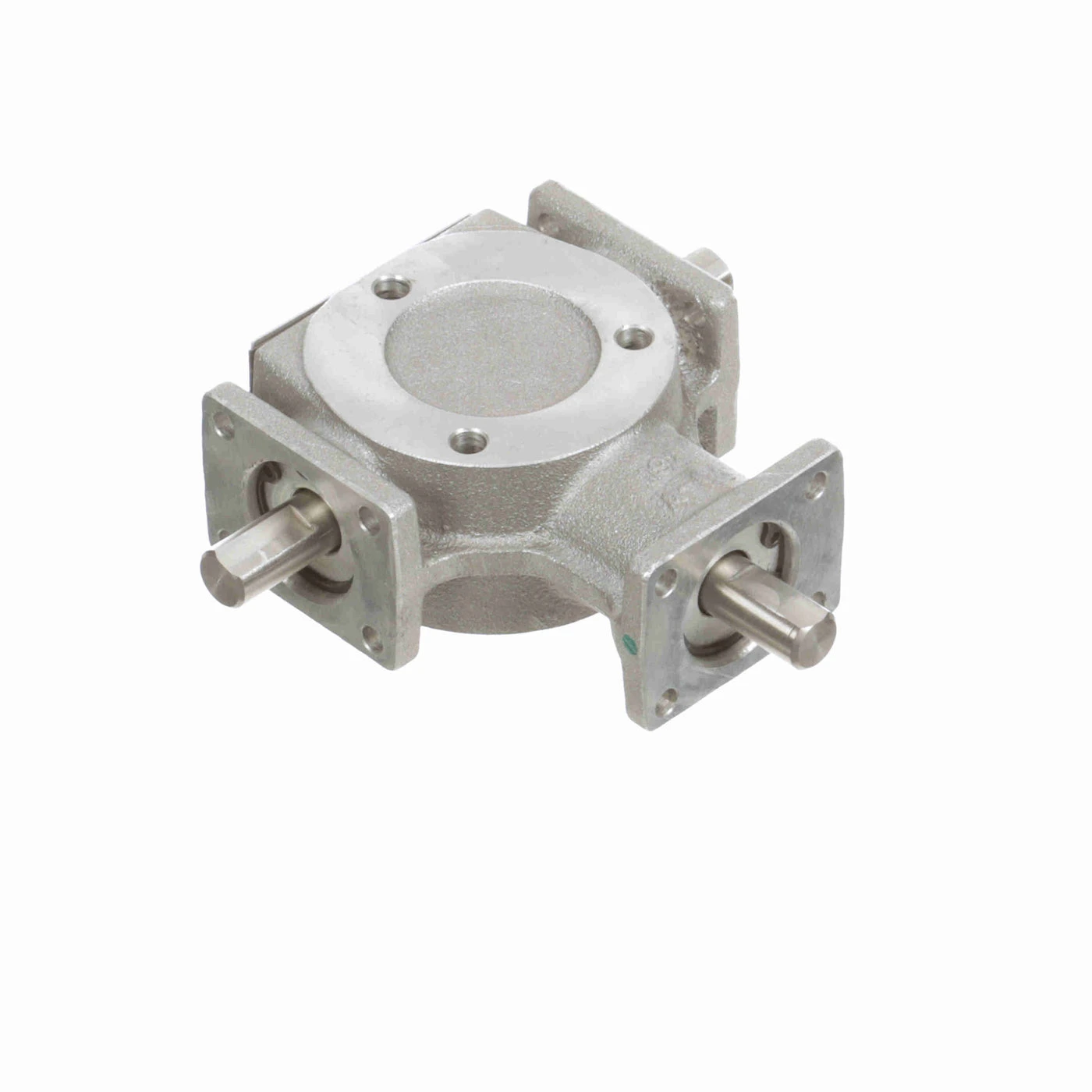

0220-05304 | 0 lbs.-in. to 250 lbs.-in. | 875 RPM | Double | A, B | 2:1 | 0.262 hp | 18.9 lbs.-in. | Aluminum | €1,144.38 | |
 |
0220-05309 | 0 lbs.-in. to 250 lbs.-in. | 875 RPM | Left Or Right | C, F | 2:1 | 0.262 hp | 18.9 lbs.-in. | Aluminum | €1,144.38 | |
 |

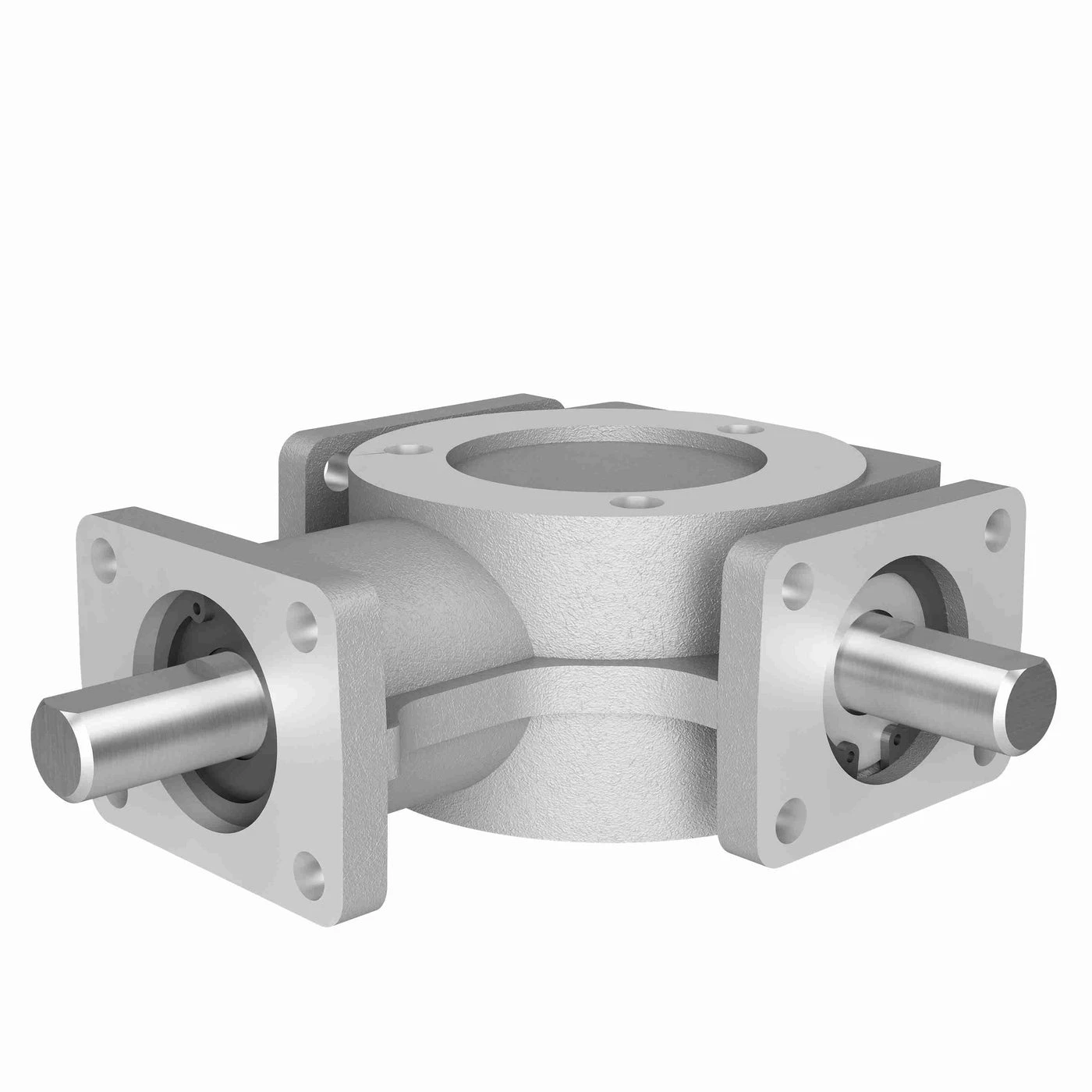

0220-05310 | Less than 250 Lbs.-In. | - | Left, Right | D, E | 2:1 | - | - | Aluminum | €1,144.38 |
