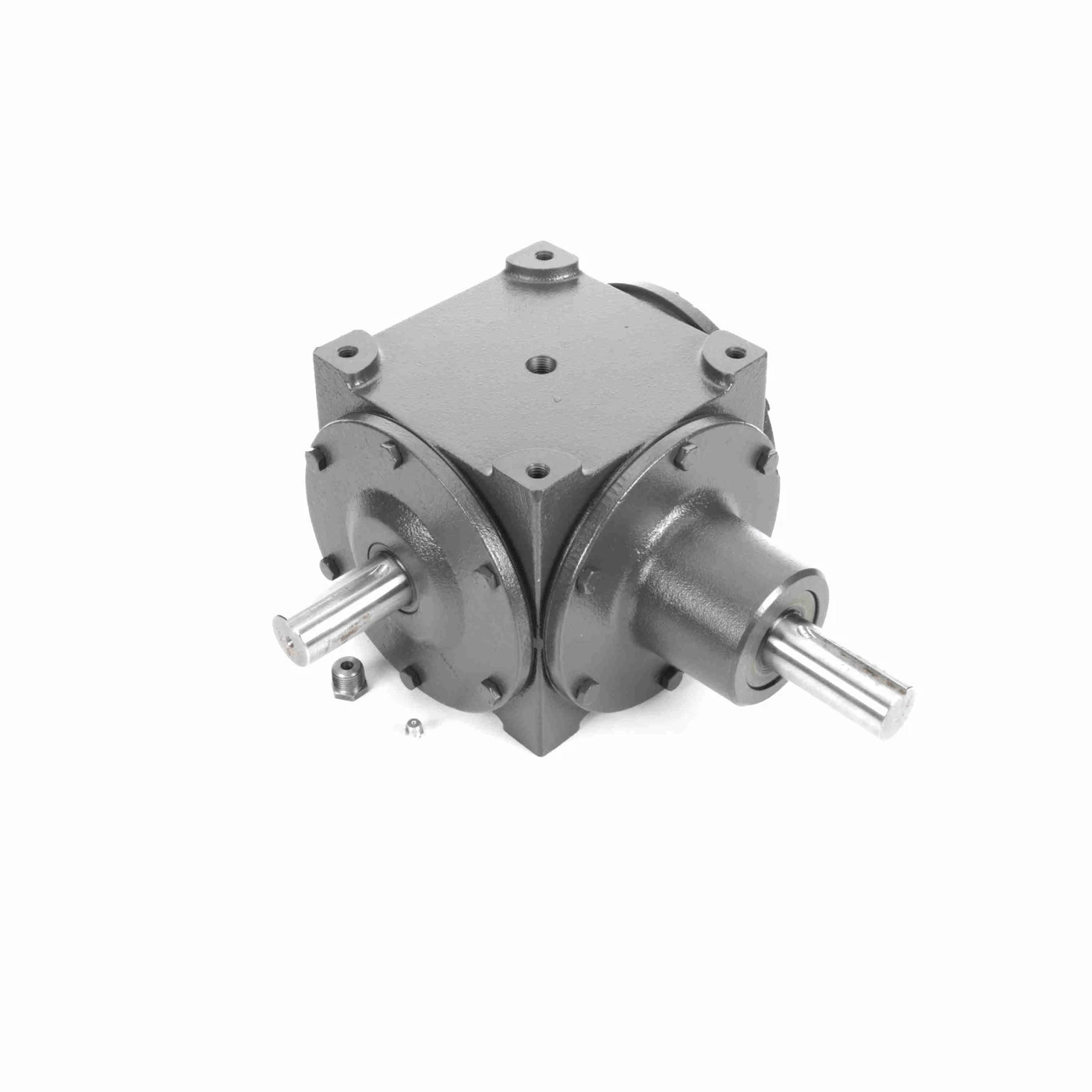

HUB CITY 0220-04037 Bevel Gear Drive, 39 HP, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron
1.50:1
3200 lbs.-in.
766.7 RPM
Left/Right
Get it by Tuesday, Sep 1
€2,776.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 88 |
| Gear Type | Straight Bevel |
| Housing Height | 8 3/16" |
| Housing Length | 11 21/32" |
| Housing Material | Cast Iron |
| Housing Width | 9 13/16" |
| Hp | 30 hp to 50 hp |
| Input Dia. | 1 3/8" |
| Input Hp | 39 hp |
| Input Hp @ 1750 Rpm | 39 hp |
| Input Style | Shaft |
| Max. Input Hp | 39 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 3/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Speed | 766.7 RPM |
| Output Torque | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1.5:1 |
| Service Factor | 1 |
| Style | D, E |
| Torque | 3200 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 39.6 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 41.28 |
| Ship width (cm) | 39.37 |
Product Variants
| Product | Model | Output Torque | Output Speed | Max. Input Hp | Output Shaft Direction | Style | Gear Type | Ratio | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-04021 | 1000 lbs.-in. to 2500 lbs.-in. | 1380 RPM | 26 hp | Double | A, B | Straight Bevel | 12:1 | 1188 lbs.-in. | €2,722.58 | |
 |
0220-04065 | 2500 lbs.-in. to 5000 lbs.-in. | - | - | Left, Right | Gg | Straight Bevel | 1:1 | - | €4,727.69 | |
 |
0220-04013 | 2500 lbs.-in. to 5000 lbs.-in. | 1750 RPM | - | Left Or Right | C, F | Spiral Bevel | 1:1 | 3240 lbs.-in. | €3,582.85 | |
 |
0220-04007 | 2500 lbs.-in. to 5000 lbs.-in. | 850 RPM | 44 hp | Left Or Right | C, F | Straight Bevel | 1:1 | 3260 lbs.-in. | €2,054.89 | |
 |
0220-04005 | 2500 lbs.-in. to 5000 lbs.-in. | 850 RPM | 44 hp | Left Or Right | D, E | Straight Bevel | 1:1 | 3260 lbs.-in. | €2,054.89 | |
 |
0220-04031 | 2500 lbs.-in. to 5000 lbs.-in. | 850 RPM | 44 hp | Double | G | Straight Bevel | 1:1 | 3260 lbs.-in. | €3,711.60 | |
 |
0220-04018 | 1000 lbs.-in. to 2500 lbs.-in. | 575 RPM | 22 hp | Left Or Right | C, F | Straight Bevel | 2:1 | 2410 lbs.-in. | €2,722.58 |
