HUB CITY 88 Series Bevel Gear Drives
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1| Style | Model | Output Torque | Output Speed | Max. Input Hp | Output Shaft Direction | Style | Gear Type | Ratio | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0220-04069 | 250 lbs.-in. to 500 lbs.-in. | - | - | Left, Right | G | Straight Bevel | 1:3 | - | €4,179.06 | |
| B | 0220-04021 | 1000 lbs.-in. to 2500 lbs.-in. | 1380 RPM | 26 hp | Double | A, B | Straight Bevel | 12:1 | 1188 lbs.-in. | €2,722.58 | |
| C | 0220-04027 | 1000 lbs.-in. to 2500 lbs.-in. | 583.3 RPM | 15 hp | Left Or Right | D, E | Straight Bevel | 3:1 | 1621 lbs.-in. | €2,722.58 | |
| D | 0220-04089 | 1000 lbs.-in. to 2500 lbs.-in. | - | - | Left, Right | A, B | Spiral Bevel | 1:2 | - | €3,947.65 | |
| E | 0220-04016 | 1000 lbs.-in. to 2500 lbs.-in. | 575 RPM | 22 hp | Left Or Right | D, E | Straight Bevel | 2:1 | 2410 lbs.-in. | €2,722.58 | |
| F | 0220-04041 | 1000 lbs.-in. to 2500 lbs.-in. | 1035 RPM | 25 hp | Double | A, B | Straight Bevel | 11.5:1 | 1520 lbs.-in. | €2,776.71 | |
| G | 0220-04090 | 1000 lbs.-in. to 2500 lbs.-in. | - | - | Left, Right | C, F | Spiral Bevel | 1:2 | - | €3,947.65 | |
| F | 0220-04015 | 1000 lbs.-in. to 2500 lbs.-in. | 575 RPM | 22 hp | Double | A, B | Straight Bevel | 2:1 | 2410 lbs.-in. | €2,160.78 | |
| H | 0220-04044 | 1000 lbs.-in. to 2500 lbs.-in. | 1035 RPM | 25 hp | Left Or Right | C, F | Straight Bevel | 11.5:1 | 1520 lbs.-in. | €2,203.74 | |
| I | 0220-04058 | 1000 lbs.-in. to 2500 lbs.-in. | 583.3 RPM | 15 hp | Left Or Right | C, F | Straight Bevel | 3:1 | 1621 lbs.-in. | €2,722.58 | |
| J | 0220-04018 | 1000 lbs.-in. to 2500 lbs.-in. | 575 RPM | 22 hp | Left Or Right | C, F | Straight Bevel | 2:1 | 2410 lbs.-in. | €2,722.58 | |
| F | 0220-04026 | 1000 lbs.-in. to 2500 lbs.-in. | 583.3 RPM | 15 hp | Double | A, B | Straight Bevel | 3:1 | 1621 lbs.-in. | €2,722.58 | |
| K | 0220-04086 | 2500 lbs.-in. to 5000 lbs.-in. | 583.3 RPM | 30.69 hp | Left Or Right | D, E | Spiral Bevel | 3:1 | 3316 lbs.-in. | €5,132.16 | |
| L | 0220-04013 | 2500 lbs.-in. to 5000 lbs.-in. | 1750 RPM | - | Left Or Right | C, F | Spiral Bevel | 1:1 | 3240 lbs.-in. | €3,582.85 | |
| M | 0220-04007 | 2500 lbs.-in. to 5000 lbs.-in. | 850 RPM | 44 hp | Left Or Right | C, F | Straight Bevel | 1:1 | 3260 lbs.-in. | €2,054.89 | |
| N | 0220-04005 | 2500 lbs.-in. to 5000 lbs.-in. | 850 RPM | 44 hp | Left Or Right | D, E | Straight Bevel | 1:1 | 3260 lbs.-in. | €2,054.89 | |
| O | 0220-04057 | 2500 lbs.-in. to 5000 lbs.-in. | 766.7 RPM | 39 hp | Double | A, B | Straight Bevel | 1.5:1 | 3200 lbs.-in. | €2,776.71 | |
| P | 0220-04084 | 2500 lbs.-in. to 5000 lbs.-in. | 583.3 RPM | - | Double | A, B | Spiral Bevel | 3:1 | 3316 lbs.-in. | €3,947.65 | |

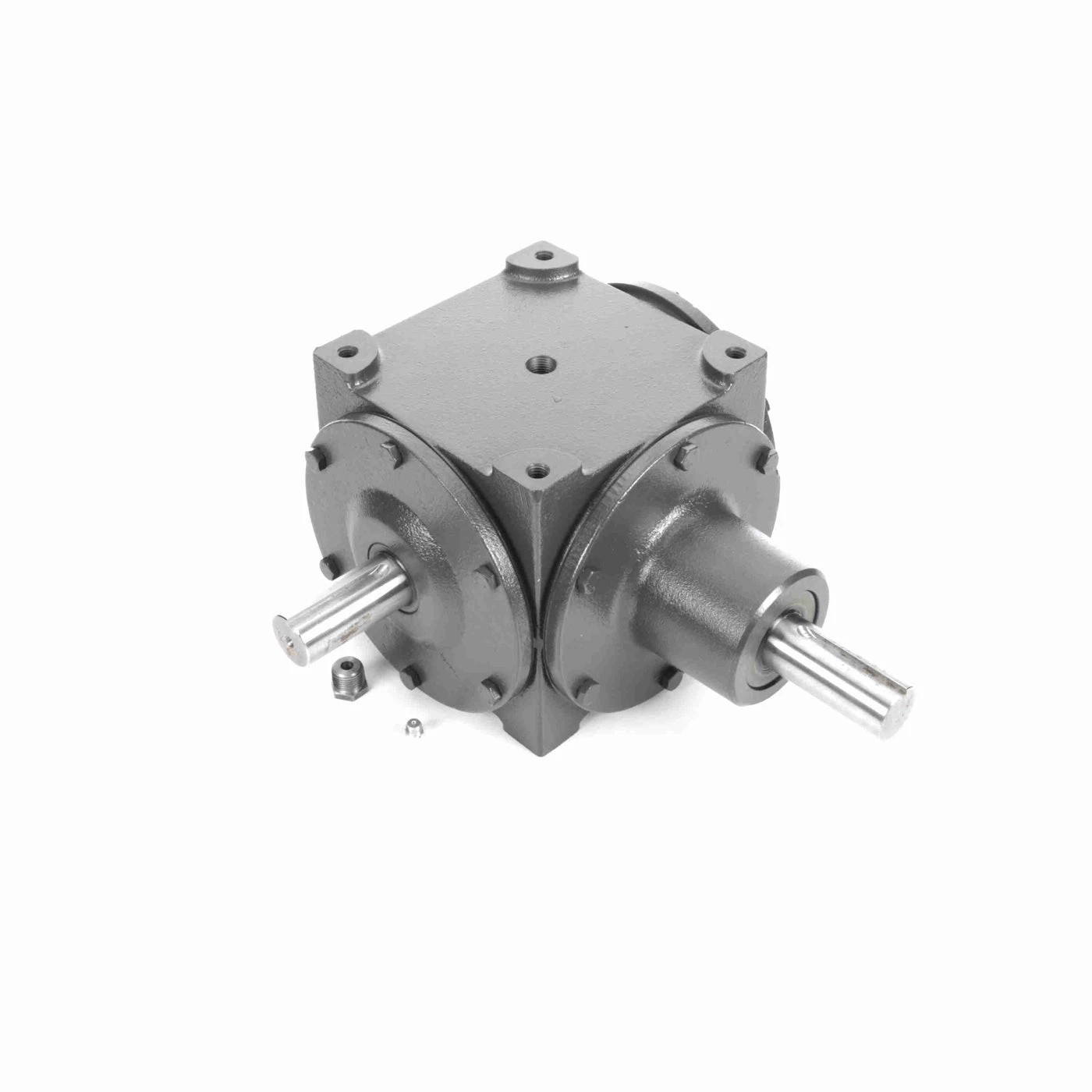

| Q | 0220-04081 | 2500 lbs.-in. to 5000 lbs.-in. | 875 RPM | 56 hp | Left Or Right | D, E | Spiral Bevel | 2:1 | 4070 lbs.-in. | €3,947.65 | |
| R | 0220-04031 | 2500 lbs.-in. to 5000 lbs.-in. | 850 RPM | 44 hp | Double | G | Straight Bevel | 1:1 | 3260 lbs.-in. | €3,711.60 | |
| S | 0220-04080 | 2500 lbs.-in. to 5000 lbs.-in. | 875 RPM | - | Left Or Right | C, F | Spiral Bevel | 2:1 | 4070 lbs.-in. | €3,947.65 | |
| T | 0220-04082 | 2500 lbs.-in. to 5000 lbs.-in. | 875 RPM | 56 hp | Double | G | Spiral Bevel | 2:1 | 4070 lbs.-in. | €6,037.65 | |
| U | 0220-04011 | 2500 lbs.-in. to 5000 lbs.-in. | 1750 RPM | - | Left Or Right | D, E | Spiral Bevel | 1:1 | 3240 lbs.-in. | €2,985.69 | |
| V | 0220-04079 | 2500 lbs.-in. to 5000 lbs.-in. | 875 RPM | - | Double | A, B | Spiral Bevel | 2:1 | 4070 lbs.-in. | €3,947.65 | |
| W | 0220-04037 | 2500 lbs.-in. to 5000 lbs.-in. | 766.7 RPM | 39 hp | Left Or Right | D, E | Straight Bevel | 1.5:1 | 3200 lbs.-in. | €2,776.71 | |
| X | 0220-04004 | 2500 lbs.-in. to 5000 lbs.-in. | 850 RPM | 44 hp | Double | A, B | Straight Bevel | 1:1 | 3260 lbs.-in. | €2,054.89 | |
| Y | 0220-04065 | 2500 lbs.-in. to 5000 lbs.-in. | - | - | Left, Right | Gg | Straight Bevel | 1:1 | - | €4,727.69 | RFQ
|
| Z | 0220-04047 | 2500 lbs.-in. to 5000 lbs.-in. | 1166.7 RPM | - | Left Or Right | D, E | Spiral Bevel | 1.5:1 | 3720 lbs.-in. | €3,045.68 | |
| A1 | 0220-04049 | 2500 lbs.-in. to 5000 lbs.-in. | 1166.7 RPM | - | Left Or Right | C, F | Spiral Bevel | 1.5:1 | 3720 lbs.-in. | €3,837.56 | |

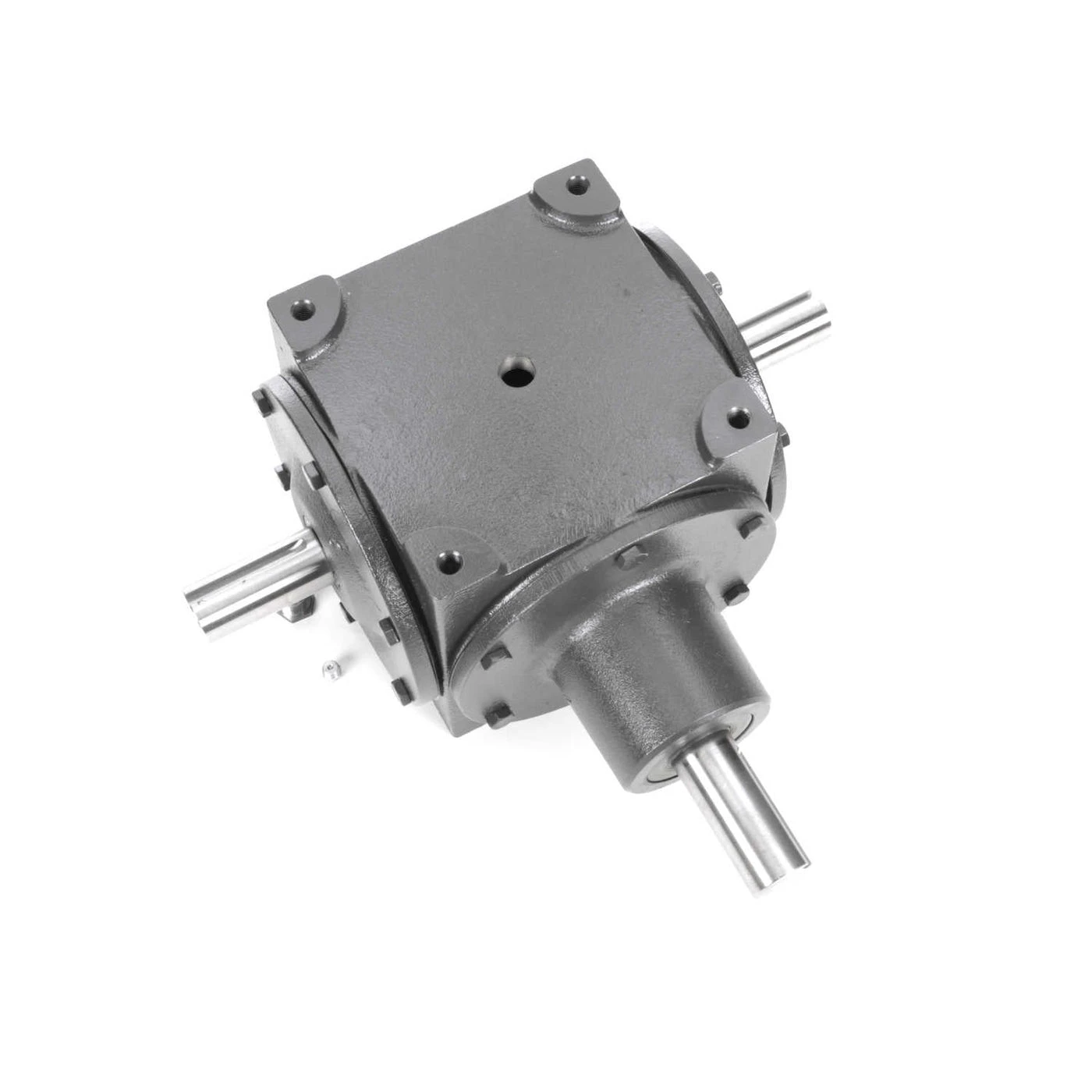

| B1 | 0220-04046 | 2500 lbs.-in. to 5000 lbs.-in. | 1166.7 RPM | - | Double | A, B | Spiral Bevel | 1.5:1 | 3720 lbs.-in. | €3,837.56 | |
| C1 | 0220-04077 | 2500 lbs.-in. to 5000 lbs.-in. | 1750 RPM | - | Double | Gg | Spiral Bevel | 1:1 | 3240 lbs.-in. | €6,868.99 | |
| D1 | 0220-04066 | 2500 lbs.-in. to 5000 lbs.-in. | - | - | Left, Right | G | Spiral Bevel | 1:1 | - | €5,776.40 | RFQ
|

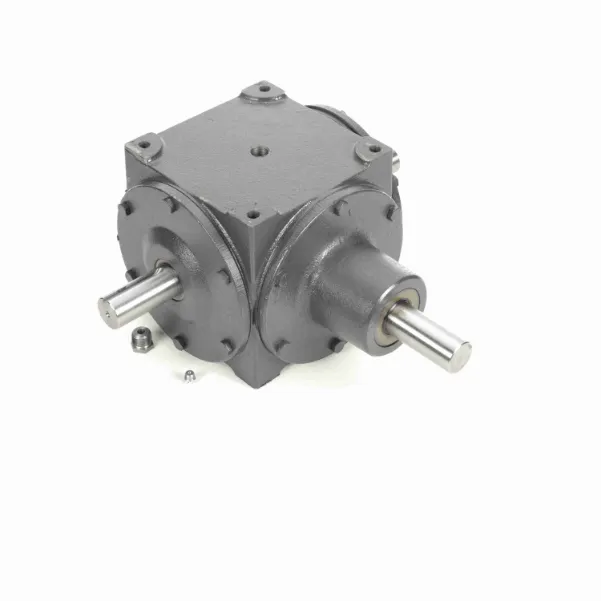

| E1 | 0220-04010 | 2500 lbs.-in. to 5000 lbs.-in. | 1750 RPM | - | Double | A, B | Spiral Bevel | 1:1 | 3240 lbs.-in. | €2,985.69 |
