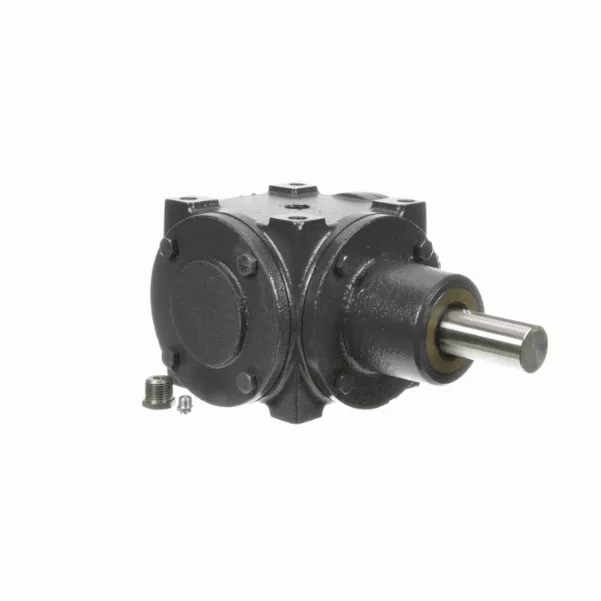

HUB CITY 0220-03453 Bevel Gear Drive, 15 HP, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron
1.50:1
1166.7 RPM
Left/Right
Get it by Tuesday, Dec 23
€1,705.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 600 |
| Gear Type | Straight Bevel |
| Housing Height | 5 5/8" |
| Housing Length | 8 23/32" |
| Housing Material | Cast Iron |
| Housing Width | 7 1/4" |
| Hp Range | 15 hp to 20 hp |
| Input Dia. | 1 3/8" |
| Input Style | Shaft |
| Max. Input Hp | 15 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 3/8" |
| Output Rpm | 1166.7 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Product Datasheet | hub-city-0220-04065.pdf |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1.5:1 |
| Service Factor | 1 |
| Style | D, E |
| Torque Rating | 810 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
Documentation:
Product Variants
| Product | Model | Gear Type | Max. Input Hp | Housing Material | Price | |
|---|---|---|---|---|---|---|
 |
0220-03404 | Straight Bevel | 34 hp | Cast Iron | €1,418.20 | |
 |
0220-03402 | Straight Bevel | 34 hp | Cast Iron | €1,418.20 | |
 |
0220-03411 | Straight Bevel | 34 hp | Cast Iron | €2,502.39 | |
 |
0220-03406 | Spiral Bevel | - | Cast Iron | €1,642.17 | |
 |
0220-03409 | Spiral Bevel | - | Cast Iron | €1,642.17 | |
 |
0220-03407 | Spiral Bevel | - | Cast Iron | €1,642.17 | |
 |
0220-03423 | Spiral Bevel | - | Cast Iron | €3,393.43 |
