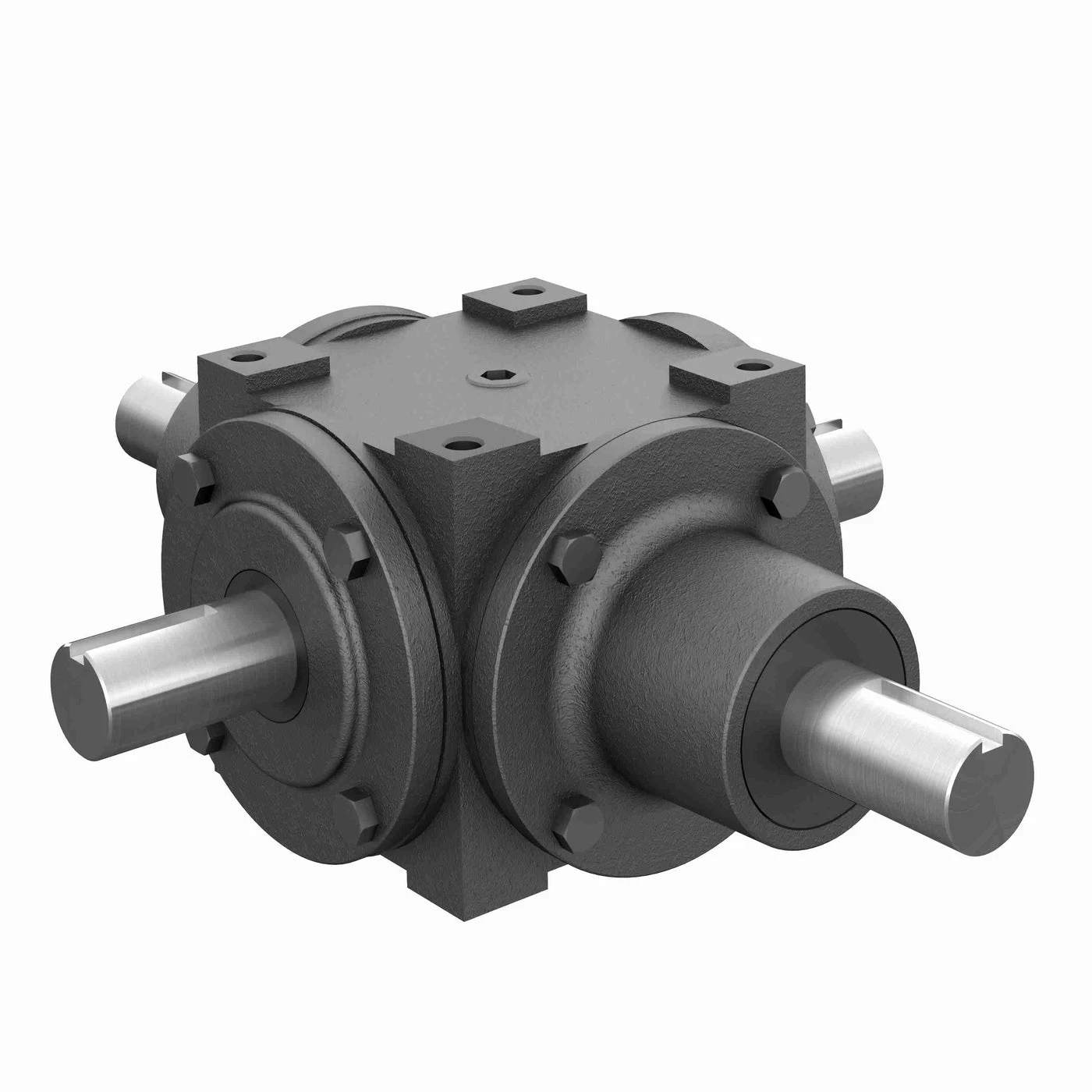

HUB CITY 0220-03423 Bevel Gear Drive, 46 HP, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron
Get it by Tuesday, Aug 25
€3,393.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 600 |
| Gear Type | Spiral Bevel |
| Housing Height | 5 5/8" |
| Housing Length | 8 23/32" |
| Housing Material | Cast Iron |
| Housing Width | 7 1/4" |
| Input Dia. | 1 3/8" |
| Input Hp @ 1750 Rpm | 46 hp |
| Input Style | Shaft |
| Output Dia. | 1 3/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Speed | 1750 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Datasheet | hub-city-0220-04065.pdf |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Service Factor | 1 |
| Style | Gg |
| Torque | 1650 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 25.2 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 41.28 |
| Ship width (cm) | 39.37 |
Documentation:
Product Variants
| Product | Model | Output Speed | Output Torque | Max. Input Hp | Torque | Output Shaft Direction | Style | Gear Type | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-03404 | 1150 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 34 hp | 1860 lbs.-in. | Left Or Right | C, F | Straight Bevel | 1:1 | €1,418.20 | |
 |

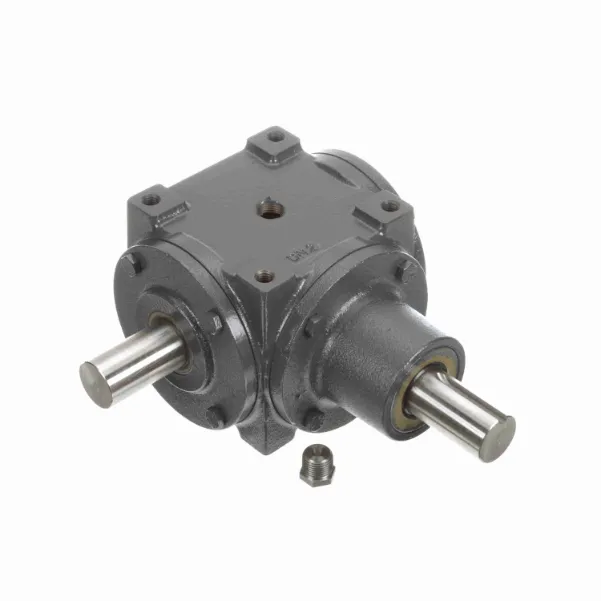

0220-03402 | 1150 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 34 hp | 1860 lbs.-in. | Left Or Right | D, E | Straight Bevel | 1:1 | €1,418.20 | |
 |

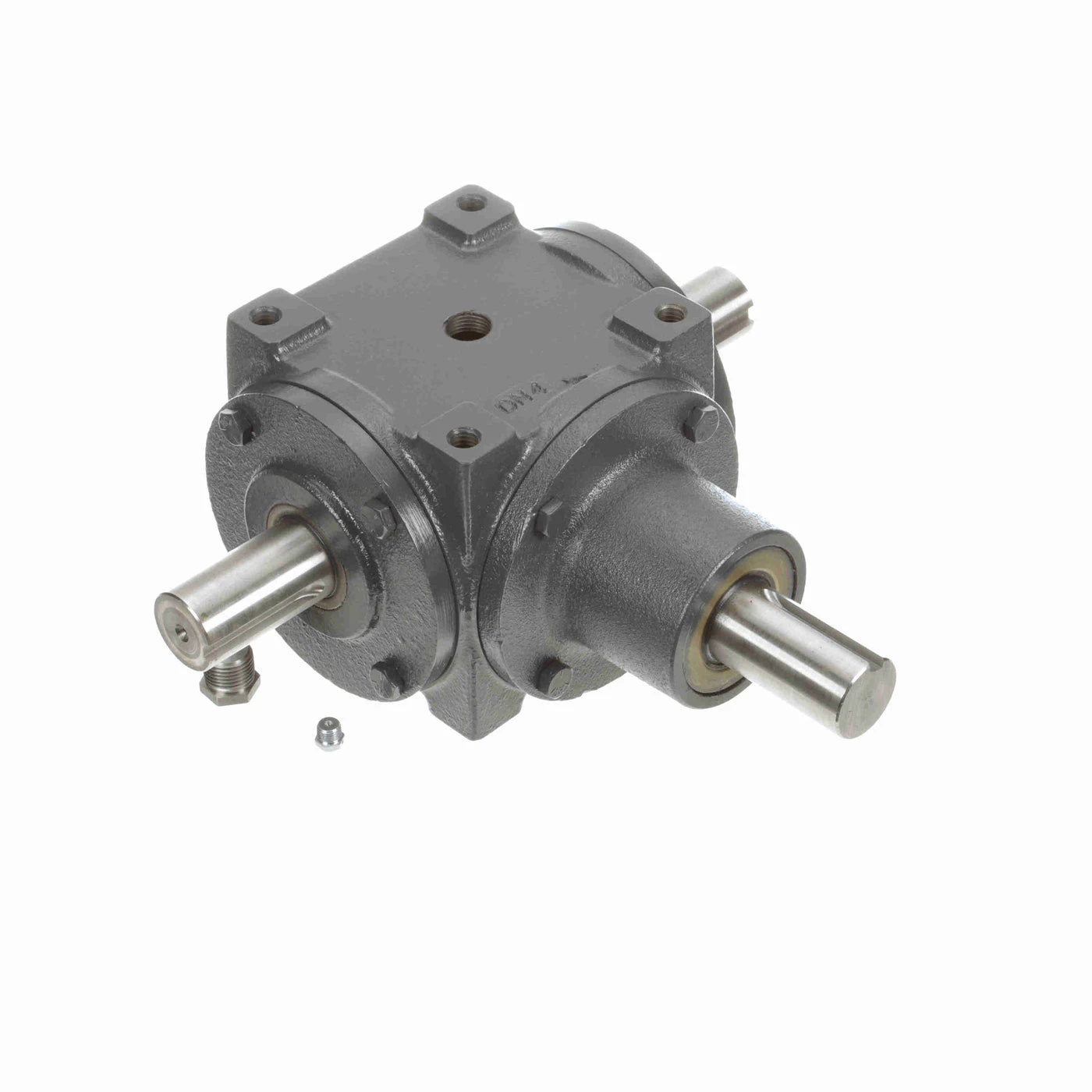

0220-03411 | 1150 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 34 hp | 1860 lbs.-in. | Double | G | Straight Bevel | 1:1 | €2,502.39 | |
 |
0220-03406 | 1750 RPM | 1000 lbs.-in. to 2500 lbs.-in. | - | 1650 lbs.-in. | Double | A, B | Spiral Bevel | 1:1 | €1,642.17 | |
 |
0220-03409 | 1750 RPM | 1000 lbs.-in. to 2500 lbs.-in. | - | 1650 lbs.-in. | Left Or Right | C, F | Spiral Bevel | 1:1 | €1,642.17 | |
 |
0220-03407 | 1750 RPM | 1000 lbs.-in. to 2500 lbs.-in. | - | 1650 lbs.-in. | Left Or Right | D, E | Spiral Bevel | 1:1 | €1,642.17 | |
 |
0220-03401 | 1150 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 34 hp | 1860 lbs.-in. | Double | A, B | Straight Bevel | 1:1 | €1,418.20 |
