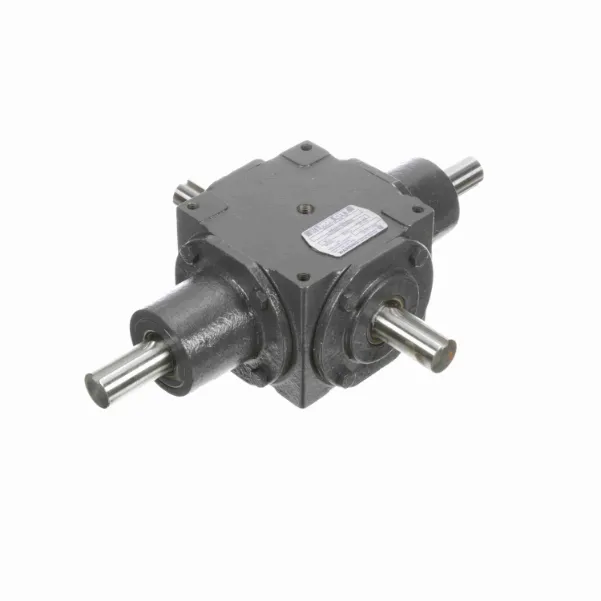

HUB CITY 0220-00932 Bevel Gear Drive, 17 HP, 1 Inch I.D, 1 Inch O.D, Cast Iron
1:1
930 lbs.-in.
Double
Get it by Tuesday, Sep 1
€1,553.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 165 |
| Gear Type | Straight Bevel |
| Housing Height | 4 1/8" |
| Housing Length | 7 11/16" |
| Housing Material | Cast Iron |
| Housing Width | 6 3/16" |
| Hp | 15 hp to 20 hp |
| Input Dia. | 1" |
| Input Hp | 17 hp |
| Input Hp @ 1750 Rpm | 17 hp |
| Input Style | Shaft |
| Max. Input Hp | 17 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Speed | 1150 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Service Factor | 1 |
| Style | Gg |
| Torque | 930 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
Product Variants
| Product | Model | Output Dia. | Output Speed | Output Torque | Max. Input Hp | Torque | Output Shaft Direction | Style | Gear Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-00904 | 1" | 1150 RPM | 500 lbs.-in. to 1000 lbs.-in. | 17 hp | 930 lbs.-in. | Left Or Right | C, F | Straight Bevel | €944.94 | |
 |
0220-00919 | 1" | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 9 1/5 hp | 500 lbs.-in. | Left Or Right | D, E | Straight Bevel | €1,403.03 | |
 |
0220-00914 | 1" | 875 RPM | 250 lbs.-in. to 500 lbs.-in. | 6 1/4 hp | 442 lbs.-in. | Left Or Right | C, F | Straight Bevel | €1,113.51 | |
 |
0220-00912 | 1" | 875 RPM | 250 lbs.-in. to 500 lbs.-in. | 6 1/4 hp | 442 lbs.-in. | Left Or Right | D, E | Straight Bevel | €1,113.51 | |
 |
0220-00931 | 1" | 875 RPM | 250 lbs.-in. to 500 lbs.-in. | 6 1/4 hp | 442 lbs.-in. | Double | Gg | Straight Bevel | €2,361.51 | |
|
0220-00907 | 1" | 1750 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 580 lbs.-in. | Left Or Right | D, E | Spiral Bevel | €1,164.17 | |
|
0220-00939 | 1" | 1750 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 580 lbs.-in. | Double | Gg | Spiral Bevel | €2,384.83 |
